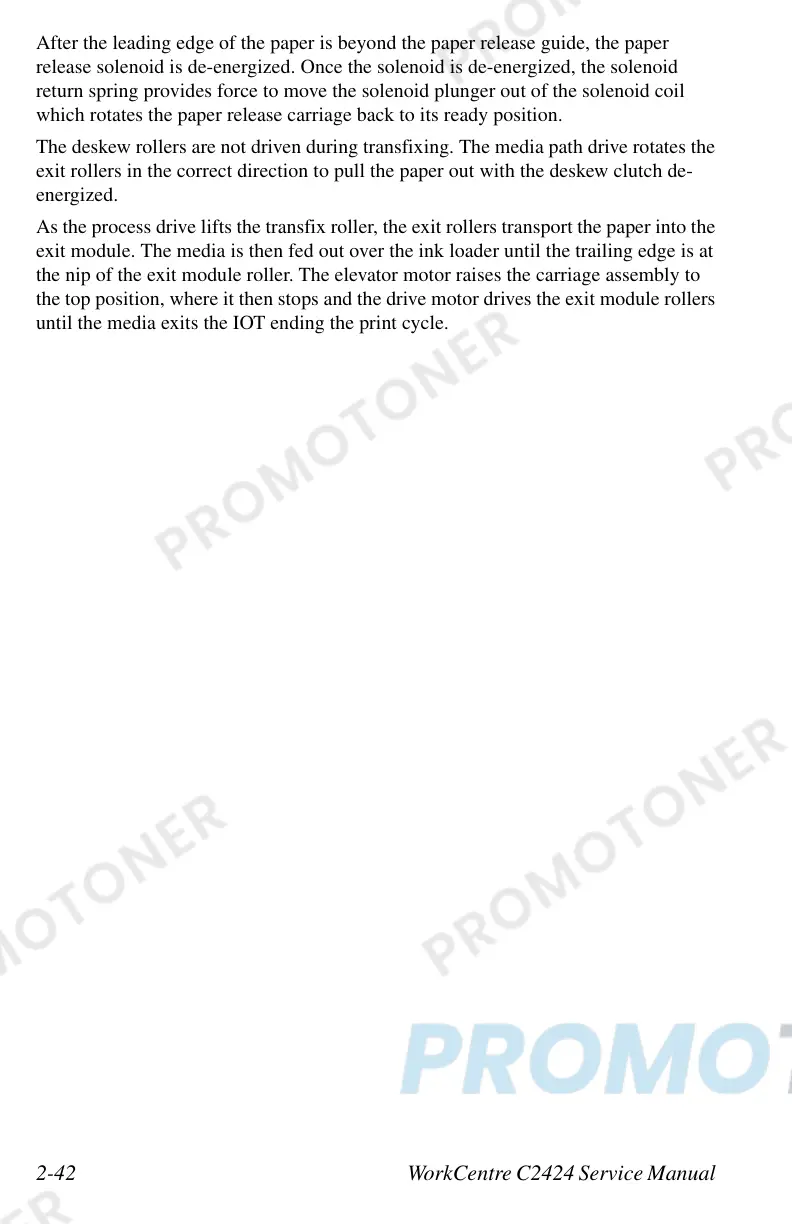

2-42 WorkCentre C2424 Service Manual
After the leading edge of the paper is beyond the paper release guide, the paper
release solenoid is de-energized. Once the solenoid is de-energized, the solenoid
return spring provides force to move the solenoid plunger out of the solenoid coil
which rotates the paper release carriage back to its ready position.
The deskew rollers are not driven during transfixing. The media path drive rotates the
exit rollers in the correct direction to pull the paper out with the deskew clutch de-
energized.
As the process drive lifts the transfix roller, the exit rollers transport the paper into the
exit module. The media is then fed out over the ink loader until the trailing edge is at
the nip of the exit module roller. The elevator motor raises the carriage assembly to
the top position, where it then stops and the drive motor drives the exit module rollers
until the media exits the IOT ending the print cycle.
