Yamaha 200A - Page 83

60H5E11
5
1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
17
16
18
19
20

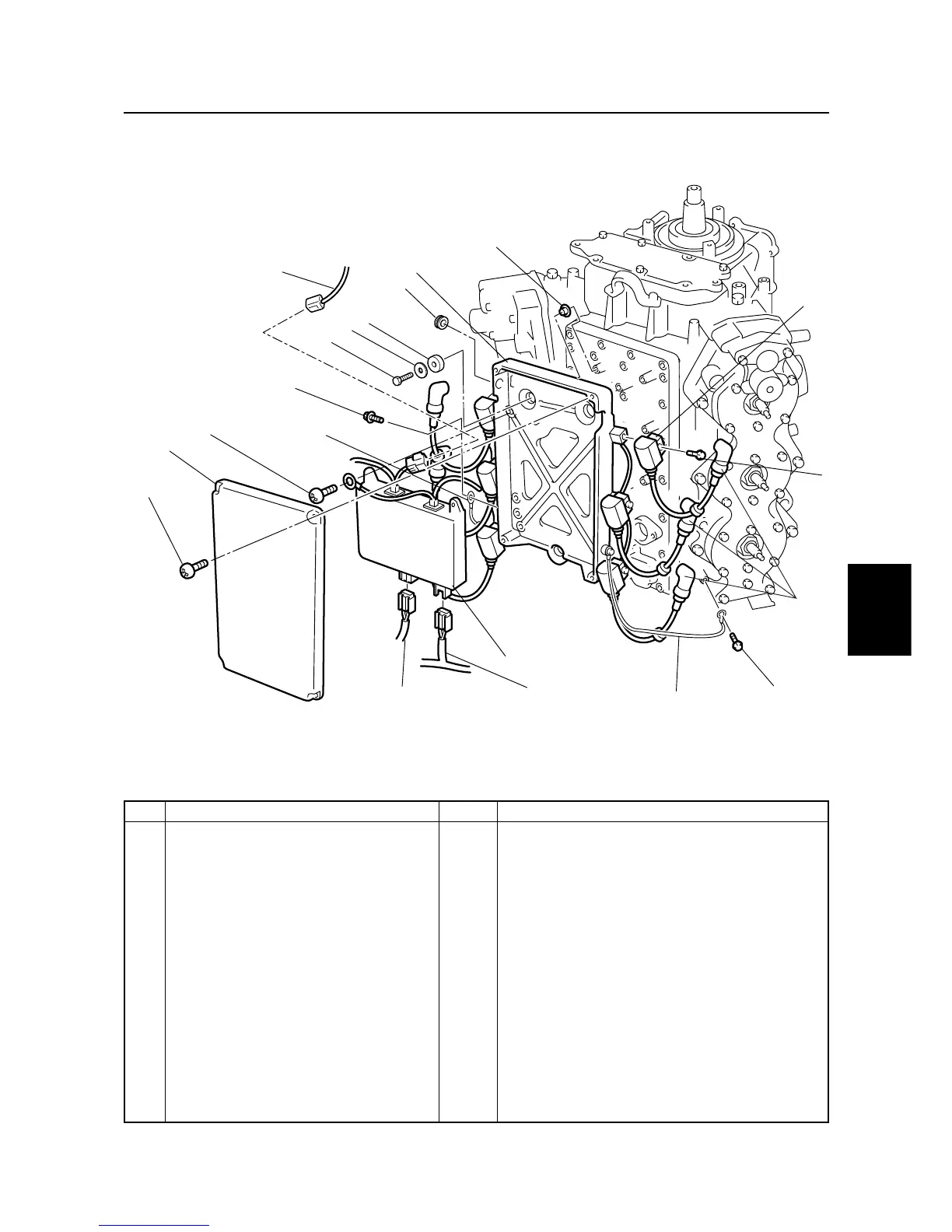

60H50050
Power unit
5-10
1 Bracket 1
2 Grommet 3
3 Washer 3
4 Bolt 3 M6 x 30 mm
5 Bolt 2 M6 x 12 mm
6 Screw 4 M6 x 19 mm
7 CDI unit cover 1
8 Screw 4 M6 x 15 mm
9 Ignition coil 6
10 Bolt 6 M6 x 20 mm
11 Bolt 2 M6 x 12 mm
12 CDI unit 1
13 Wire 1
14 Wire 1
15 Wire 1 Charge coil
16 Wire 1 Pulser coil
17 Wiring harness 1
