Yamaha 30D - EXPLODED DIAGRAM

6-1
E
LOWR

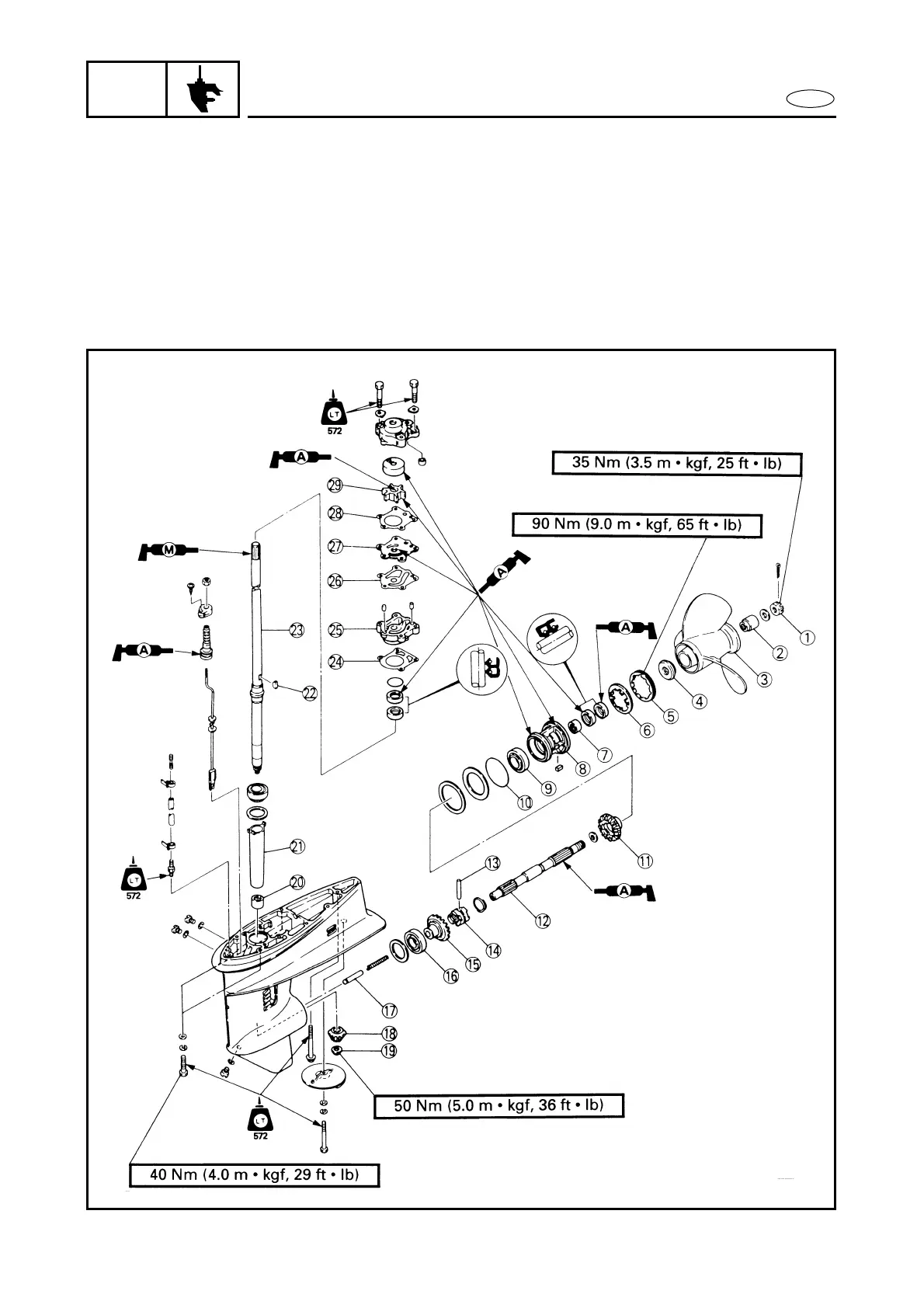

EXPLODED DIAGRAM
1 Nut
2 Spacer
3 Propeller
4 Spacer
5 Ring nut
6 Claw washer
7 Needle bearing
8 Bearing housing
9 Bearing
0 O-ring
A Reverse gear
B Propeller shaft
C Cross pin
D Clutch dog
E Forward gear
F Bearing
G Shift plunger
H Pinion
I Pinion nut
J Needle bearing
K Drive shaft sleeve
L Woodruff key
M Drive shaft
N Water pump gasket
O Water pump housing
P Cartridge outer plate gasket
Q Cartridge outer plate
R Water pump gasket
S Impeller
