Yamaha 30D - Neutral Switch; Starter Switch

8-21
–+
ELEC
E
STARTING SYSTEM
Tester positive lead 1 →
Starter relay terminal
Tester negative lead 2 →
Starter relay terminal
Battery positive terminal →
Brown terminal 3
Battery negative terminal →
Black terminal 4
● Check that there is continuity between
the starter relay terminals.

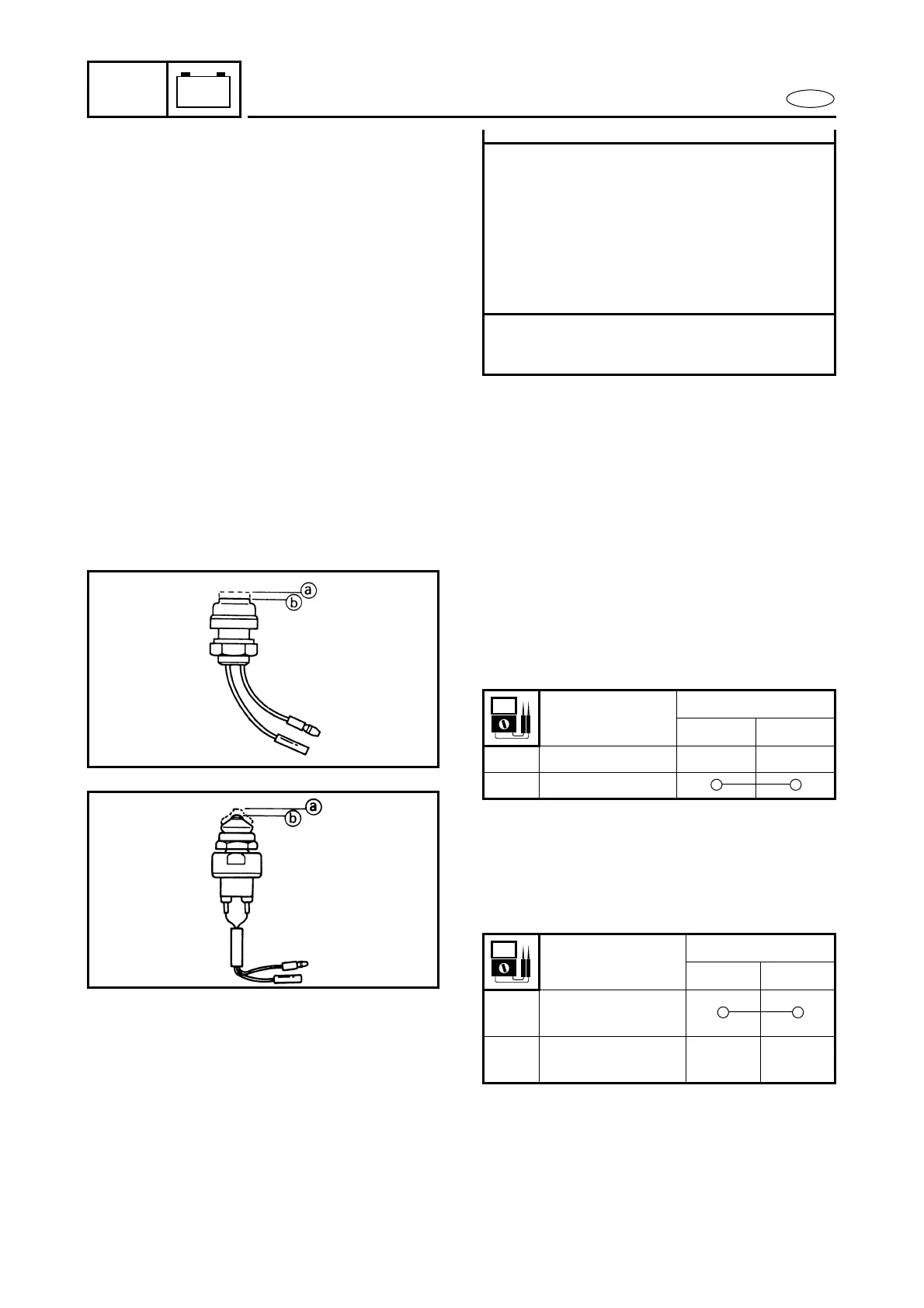

STARTER SWITCH
(25JEHO, 30DWH, 30DEHO)
1. Check:
● Starter switch continuity
No continuity → Replace.
NEUTRAL SWITCH
(25JEHO, 30DWH, 30DEHO)
1. Check:
● Neutral switch continuity
No continuity → Replace.
Switch
position
Lead color
Red Brown
a Home position
b Depressed
Neutral switch
length
Lead color
Brown Brown
a
18.5 ~ 19.5 mm
(0.73 ~ 0.77 in)
b
19.5 ~ 20.5 mm
(0.77 ~ 0.81 in)
