4-10

FUEL

E

OIL INJECTION

E40500-0

OIL INJECTION

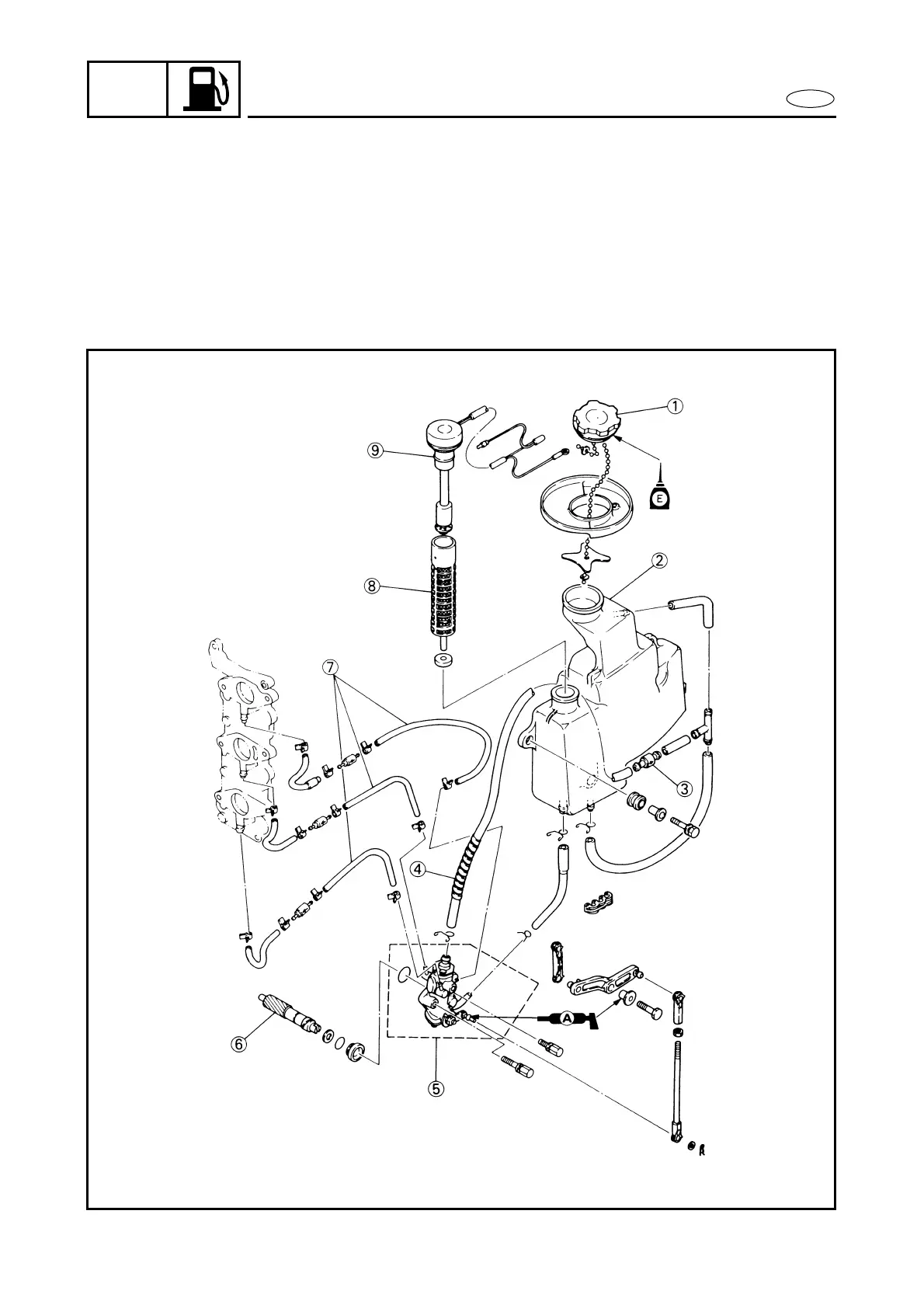

EXPLODED DIAGRAM

1 Oil tank cap

2 Oil tank

3 Check valve

4 Breather hose

5 Oil pump

6 Driven gear

7 Hose (clear vinyl)

8 Oil strainer

9 Oil level gauge
