Yamaha 30D - EXPLODED DIAGRAM

5-1
POWR
E
G20000-0

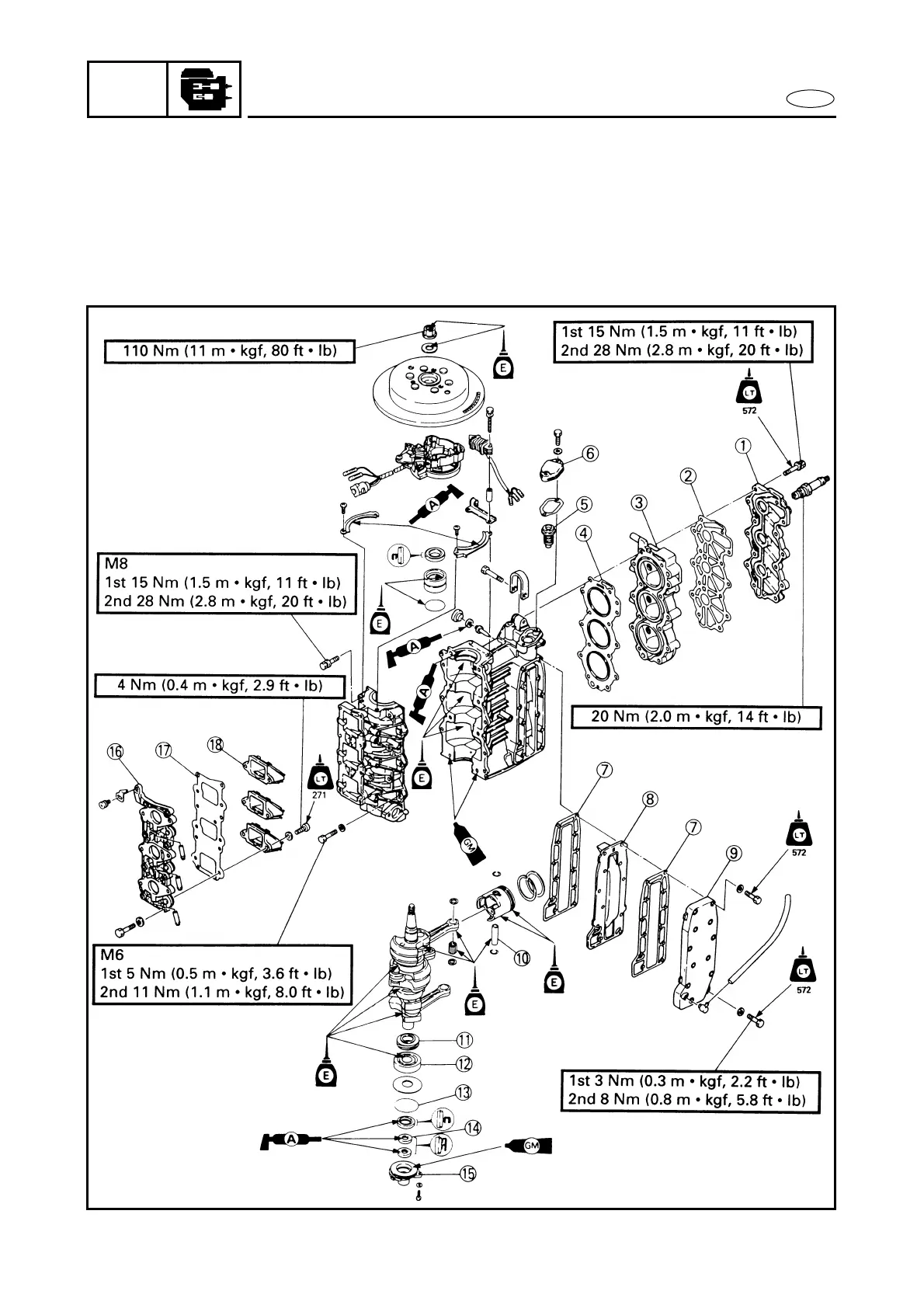

EXPLODED DIAGRAM
1 Cylinder head cover
2 Head cover gasket
3 Cylinder head
4 Cylinder head gasket
5 Thermostat
6 Thermostat cover
7 Exhaust cover gasket
8 Exhaust inner cover
9 Exhaust outer cover
0 Piston pin
A Drive gear
B Bearing
C O-ring
D Oil seal
E Oil seal housing
F Intake manifold
G Valve seat gasket
H Reed valve assembly
EXPLODED DIAGRAM
