Yamaha 30D - Starter Motor Exploded Diagram; Starter Motor Removal and Installation Chart

8-23
–+
ELEC
E
STARTER MOTOR
STARTER MOTOR

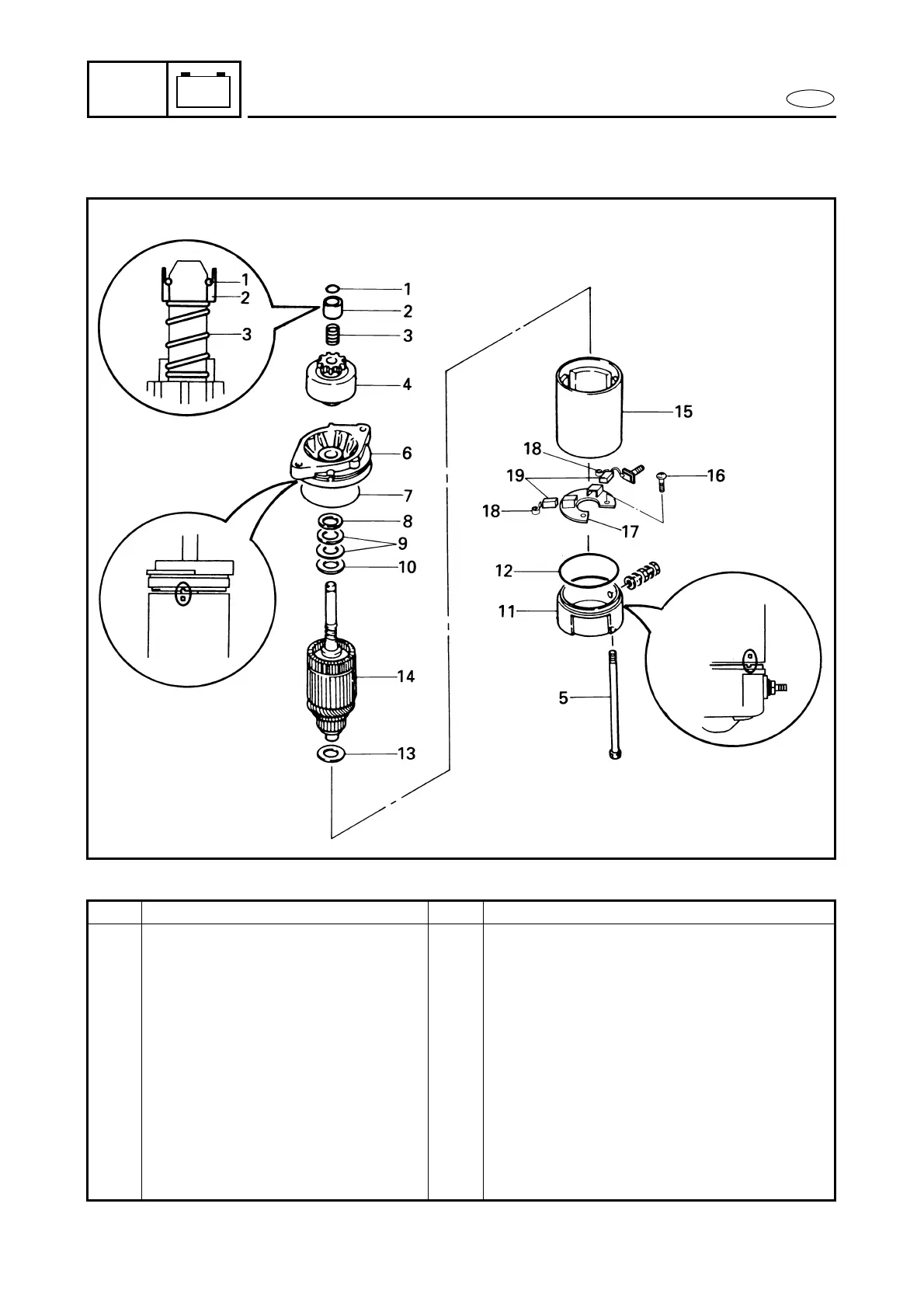

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
STARTER MOTOR
DISASSEMBLY
Follow the left “Step” for removal.
Starter motor
1 Clip 1
2 Pinion stopper 1
3 Spring 1
4 Pinion 1
5 Bolt 2
6 Front bracket 1
7 O-ring 1
8 Washer (t 1.0 mm) 1
9 Shim (t 0.15 mm) 2
