Yamaha 30D - 25 Jeto, 30 Det, 30 Deto

3-5
INSP
ADJ
E
PREDELIVERY SERVICE
25JETO, 30DET, 30DETO

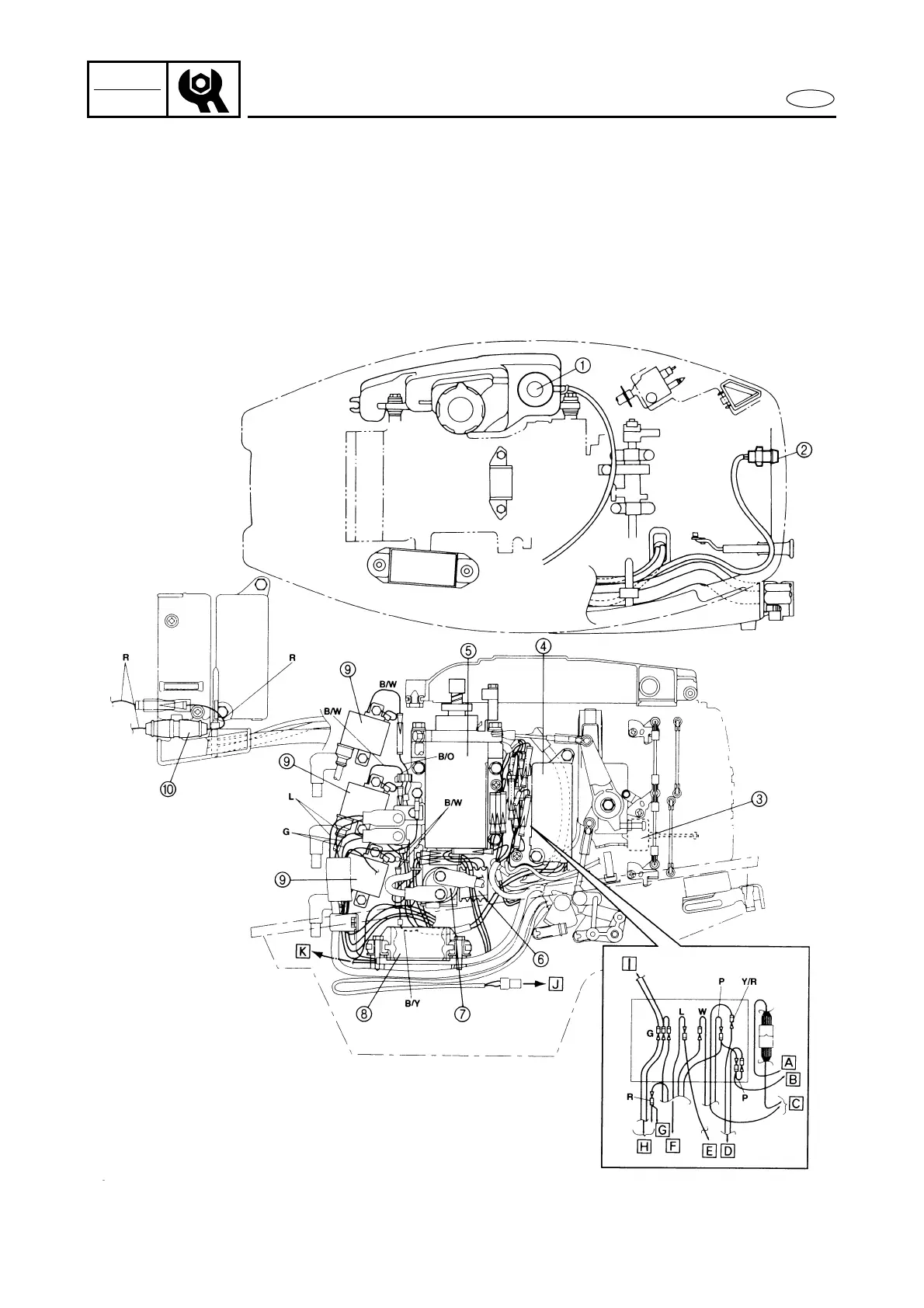

1 Oil level gauge
2 Oil level/engine temp.
warning lamp
3 Fuel enrichment valve
4 CDI unit
5 Starter motor
6 Rectifier
7 Starter relay
8 PTT relay
9 Ignition coil
0 Fuse holder
Å To stator
ı To oil level gauge
Ç To CDI unit
Î To oil level/engine temp.
warning lamp
‰ To fuel enrichment valve
Ï To wire harness
Ì To fuse holder
Ó To rectifier
È To lighting coil
Ô To trim sensor
 To thermo switch
B : Black
G : Green
L : Blue
O : Orange
P : Pink
R : Red
W : White
Y : Yellow
