Yamaha 30D - UPPER CASE

7-4
E
BRKT
UPPER CASE
UPPER CASE

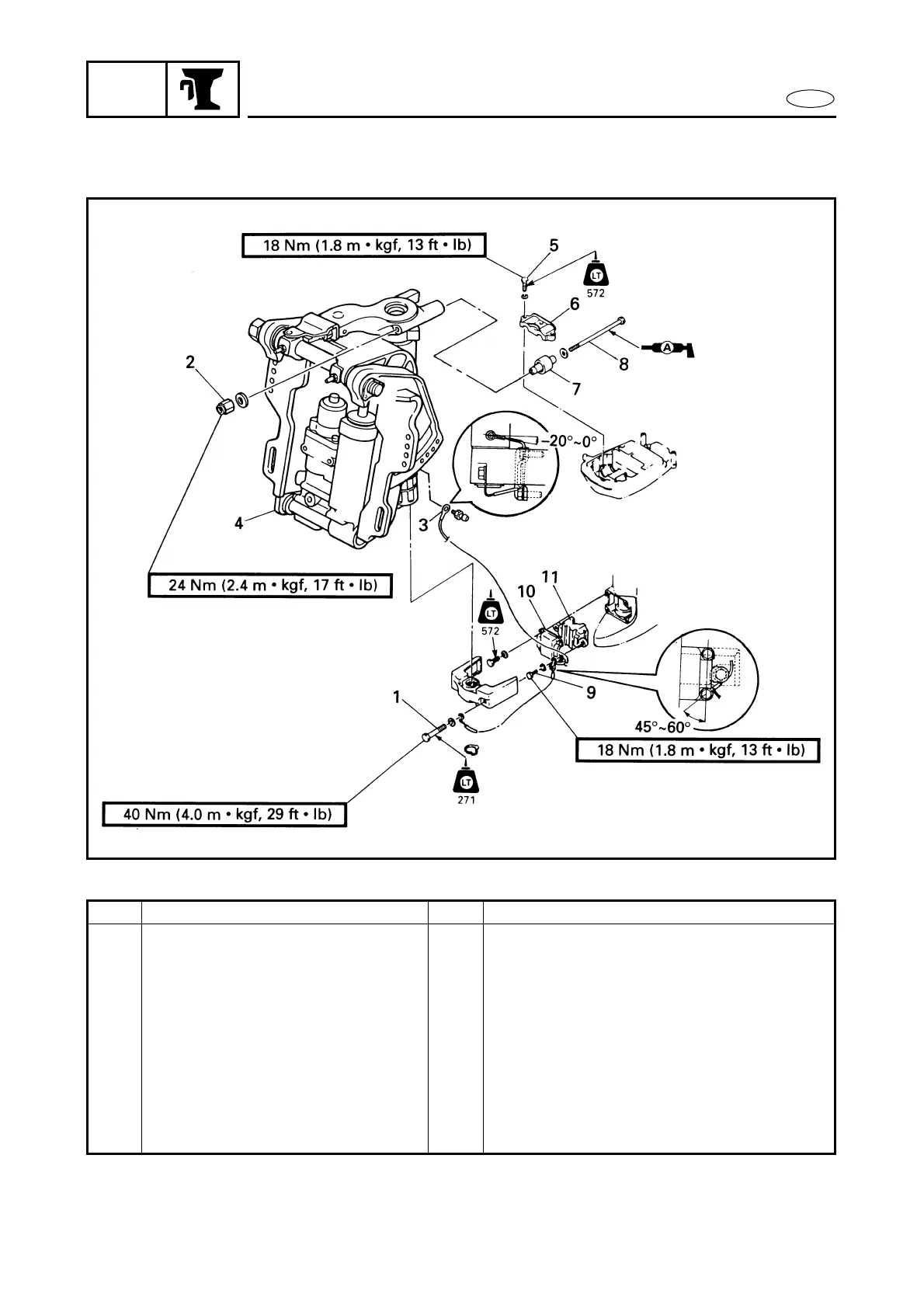

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
UPPER CASE REMOVAL Follow the left “Step” for removal.
Bottom cowling Refer to “BOTTOM COWLING”.
Lower unit Refer to “LOWER UNIT – REMOVAL” in
chapter 6.
1 Bolt 2
2 Nut 2
3 Ground lead 1
4 Upper case assembly 1
5 Bolt 3
6 Upper mount rubber cover 1
