Yamaha 30D - Ptt Motor, Pump Housing, and Tilt Cylinder Exploded Diagram

7-24
E
BRKT
PTT MOTOR, PUMP HOUSING,
AND TILT CYLINDER

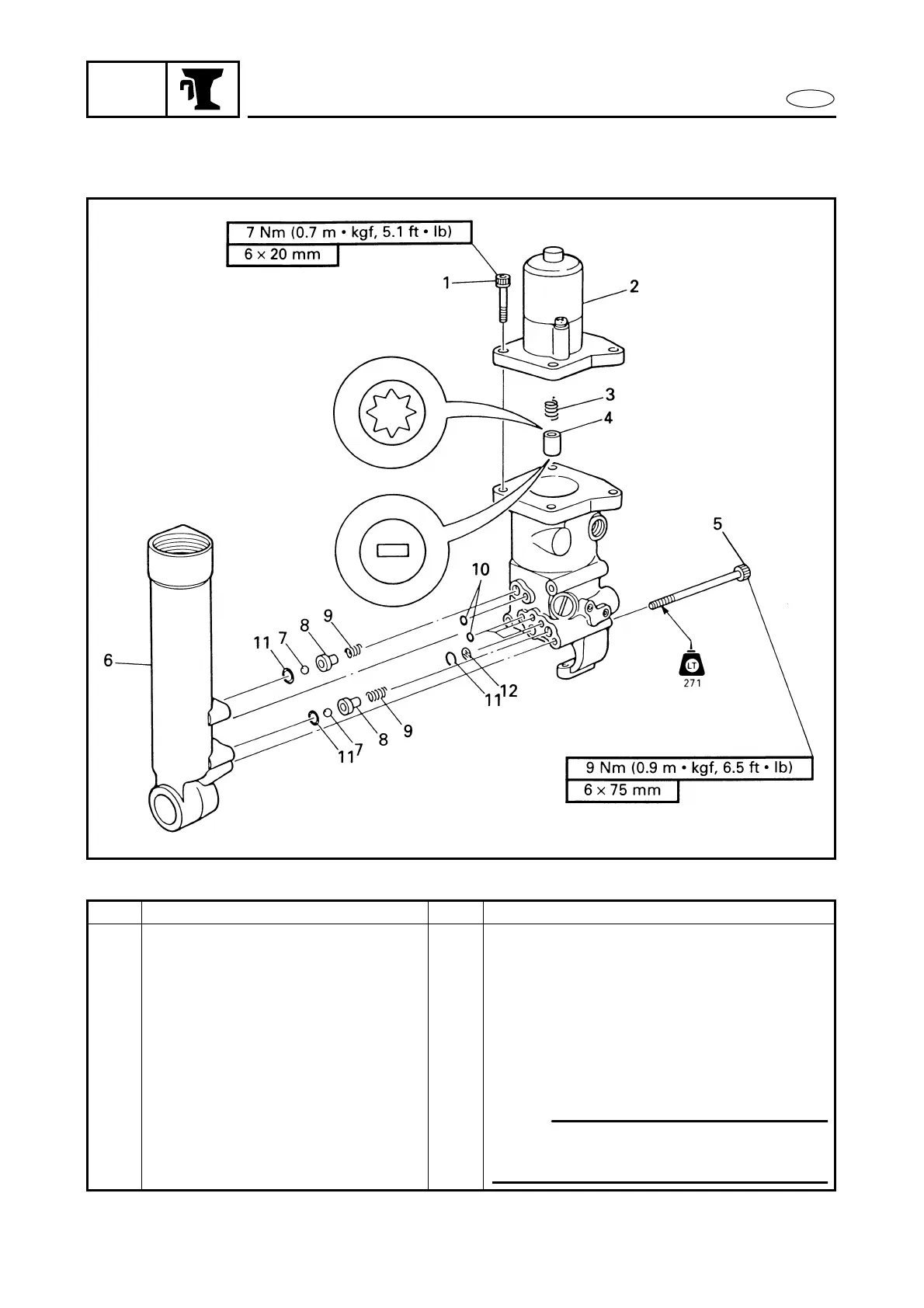

PTT MOTOR, PUMP HOUSING, AND TILT CYLINDER
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
PTT MOTOR, PUMP HOUSING,
AND TILT CYLINDER REMOVAL
Follow the left “Step” for removal.
PTT unit
1 Bolt 4
2 PTT motor 1
3 Spring 1
4 Connector shaft 1
5 Bolt 3
6 Tilt cylinder 1
NOTE:
Removal of the tilt cylinder is not neces-
sary for cylinder repair.
