STARTER MOTOR

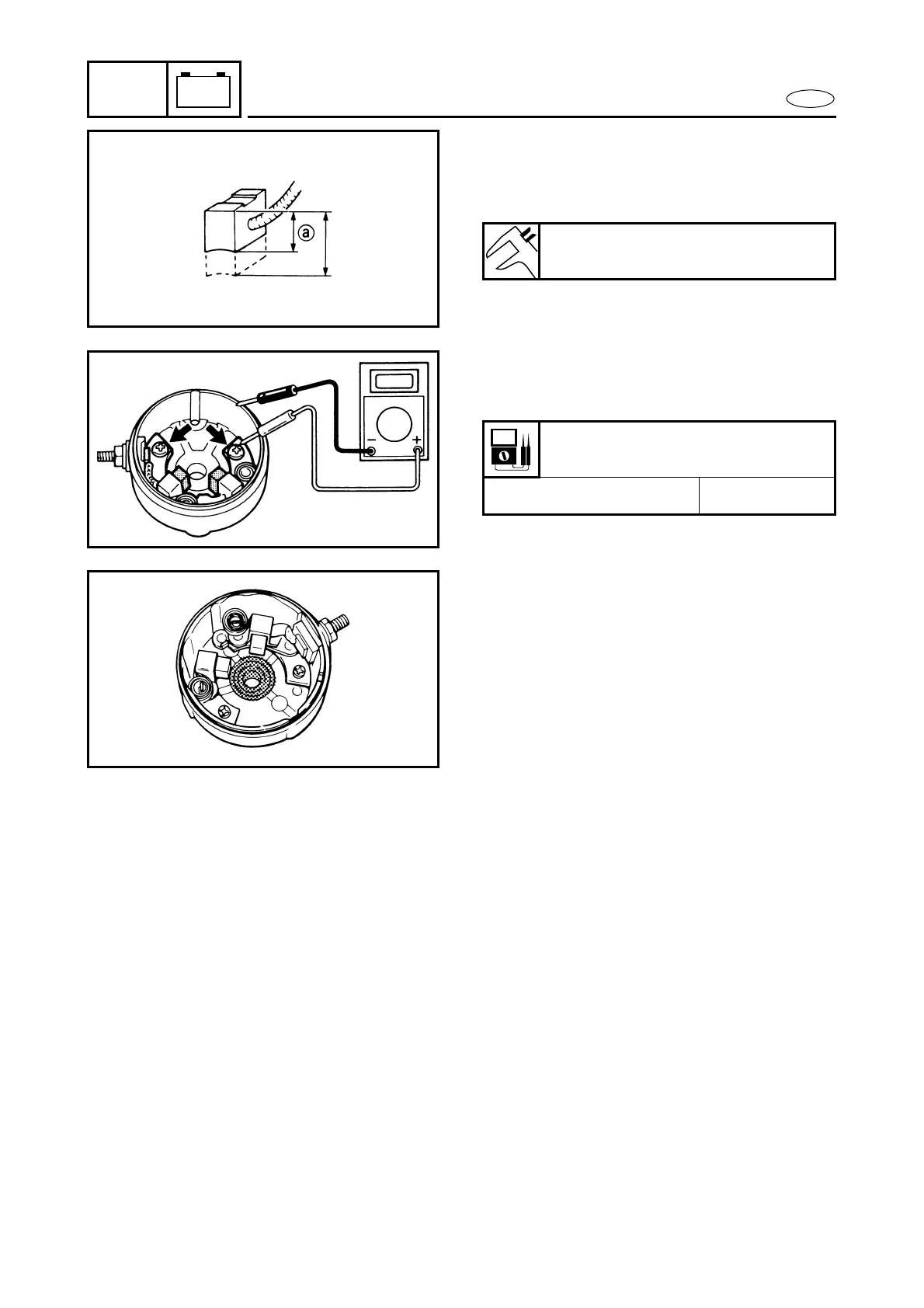

Brush holder inspection
1. Measure:
● Brush length a
Out of specification → Replace.
Brush length limit:
9.0 mm (0.35 in)
2. Check:
● Brush holder continuity
Out of specification → Replace.
Brush holder continuity:
Brush holder - bracket No continuity
Rear bracket bushing inspection
1. Inspect:
● Rear bracket bushing
Damage/wear → Replace the cover.
