START-IN-GEAR PROTECTION
ADJUSTMENT

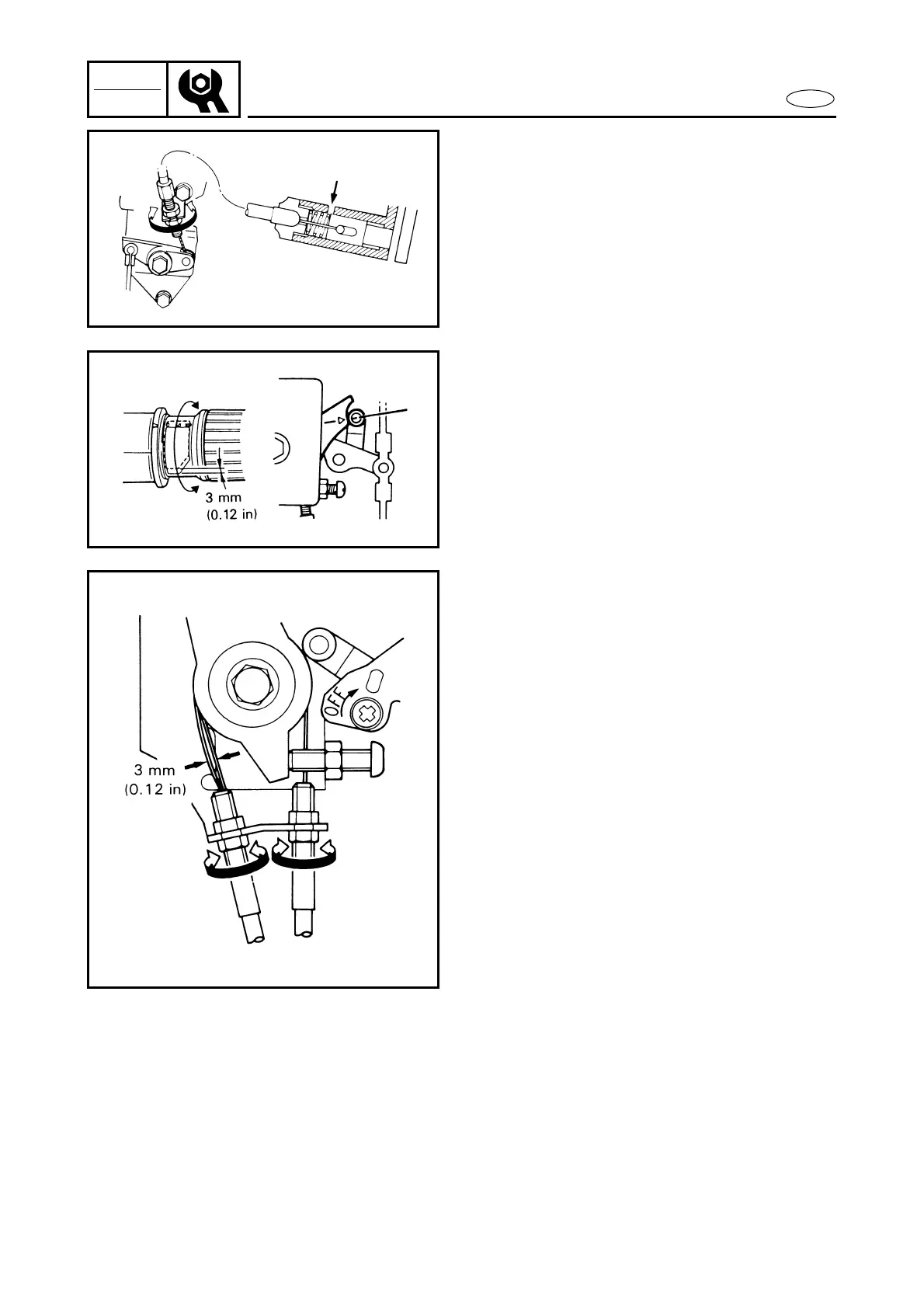

Start-in-gear protection model
1. Shift into neutral.
2. Adjust the wire adjusting-bolt so that
the end of the starter stop-plunger
aligns with the center of the hole in the
starter case.
THROTTLE CABLE ADJUSTMENT
Manual handle model
1. Set the shift lever to the forward posi-
tion.
2. Twist the throttle grip to fast until it
stops, and check to see if the center of
the throttle roller lines up with the wide
open throttle mark on the throttle cam.
If they are not in line, loosen the adjust
bolt lock nut on the pull side of the
throttle wire, remove the slack in the
throttle wire by turning the adjust bolt,
and tighten the lock nut.
3. Loosen the adjust bolt lock nut on the
other side of the throttle wire, and give
it a slack of 3 mm (0.12 in) by turning
the adjust bolt, then tighten the lock
nut.
