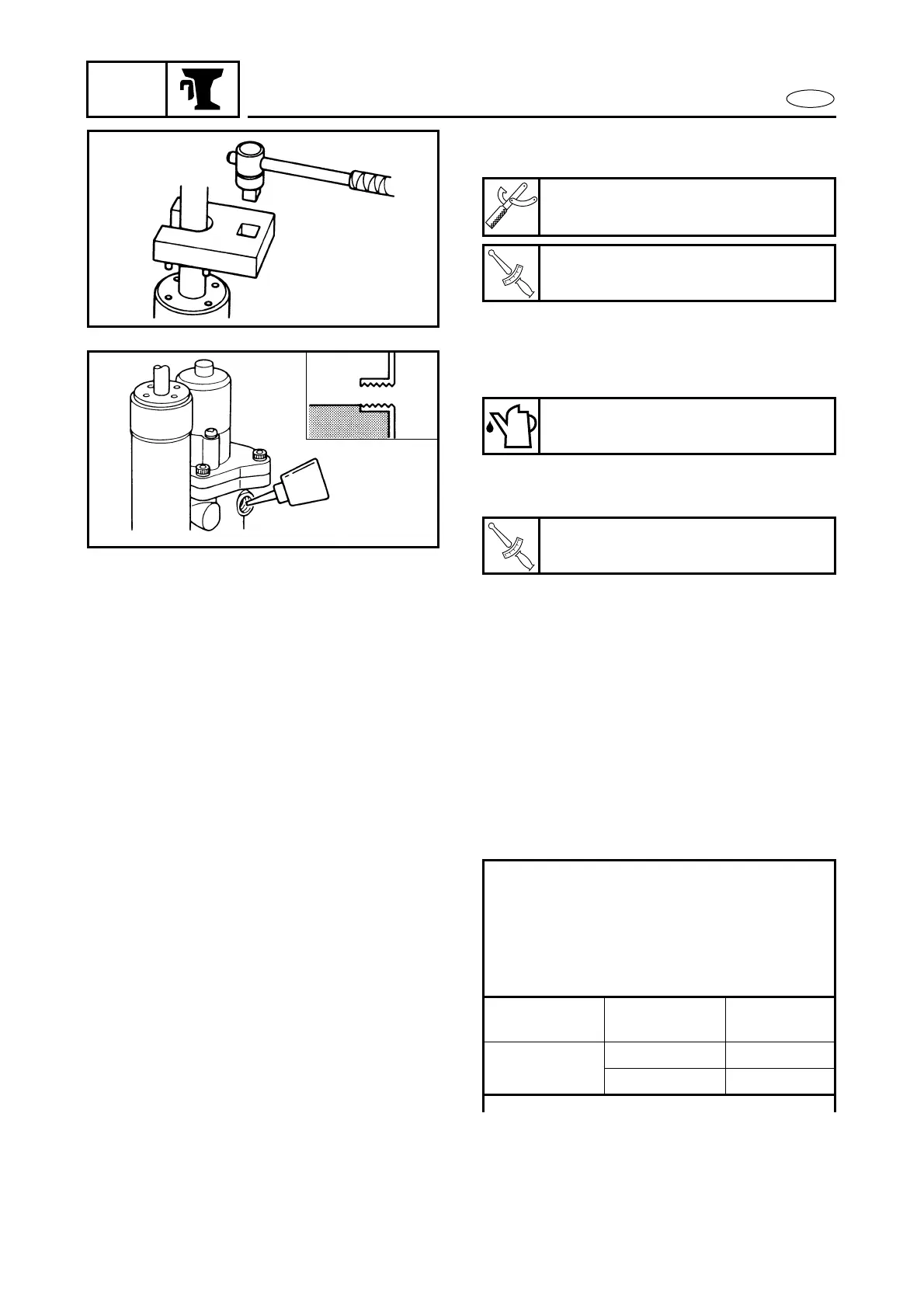

Yamaha 30D - Air Bleeding

7-22
E
BRKT
TILT ROD
4. Tighten:
● Tilt cylinder end screw
Tilt cylinder wrench:
YB-06175-2B/90890-06544
T
R
.
.
Tilt cylinder end screw:
90 Nm (9.0 m • kgf, 65 ft • lb)
5. Fill:
● Reservoir
6. Install:
● Reservoir plug
Recommended PTT fluid:
ATF (Dexron type II)
T
R
.
.
Reservoir plug:
7 Nm (0.7 m • kgf, 5.1 ft • lb)
Air bleeding
1. Bleed:
● Air
Bleeding steps:
● To close the manual valve, turn it
counterclockwise.
● Set the PTT unit upright.
● Connect the PTT motor leads to the
battery.
Tilt rod
(free piston)
PTT motor
lead
Battery
terminal
Up
Blue ++
++
Green --
--
