Yamaha 30D - TILT ROD

7-18
E
BRKT
TILT ROD
TILT ROD

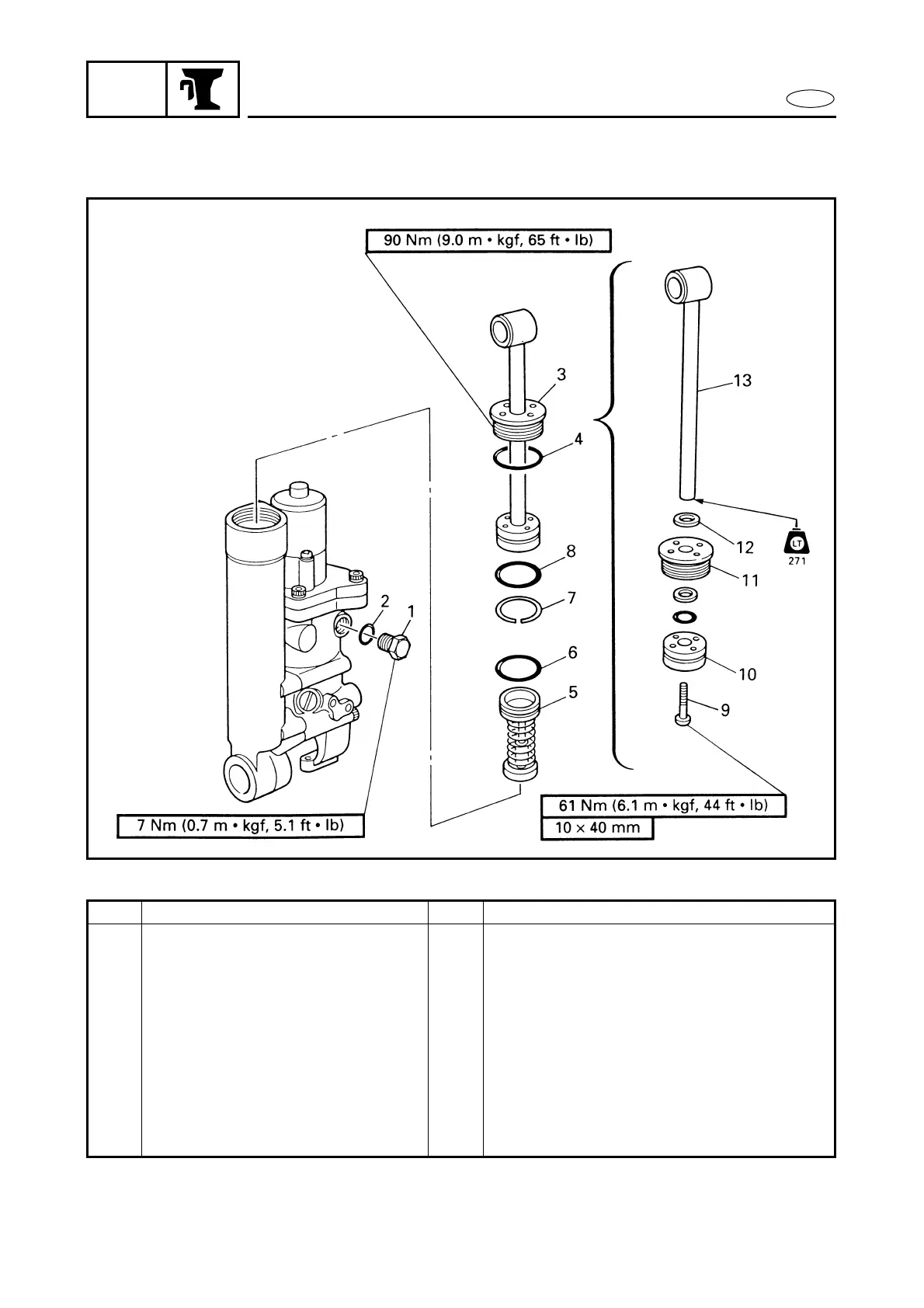

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
TILT ROD DISASSEMBLY Follow the left “Step” for removal.
PTT unit
1 Reservoir plug 1
2 O-ring 1 8.8 × 1.9 mm
3 Tilt rod assy. 1
4 O-ring 1 44.8 × 2.5 mm
5 Free piston assy. 1
6 O-ring 1 38.7 × 3.5 mm
7 Backup ring 1
8 O-ring 1 38.7 × 3.5 mm
