Yamaha 30D - ELECTRIC WIRING

3-2
INSP
ADJ
E
PREDELIVERY SERVICE
D22002-0

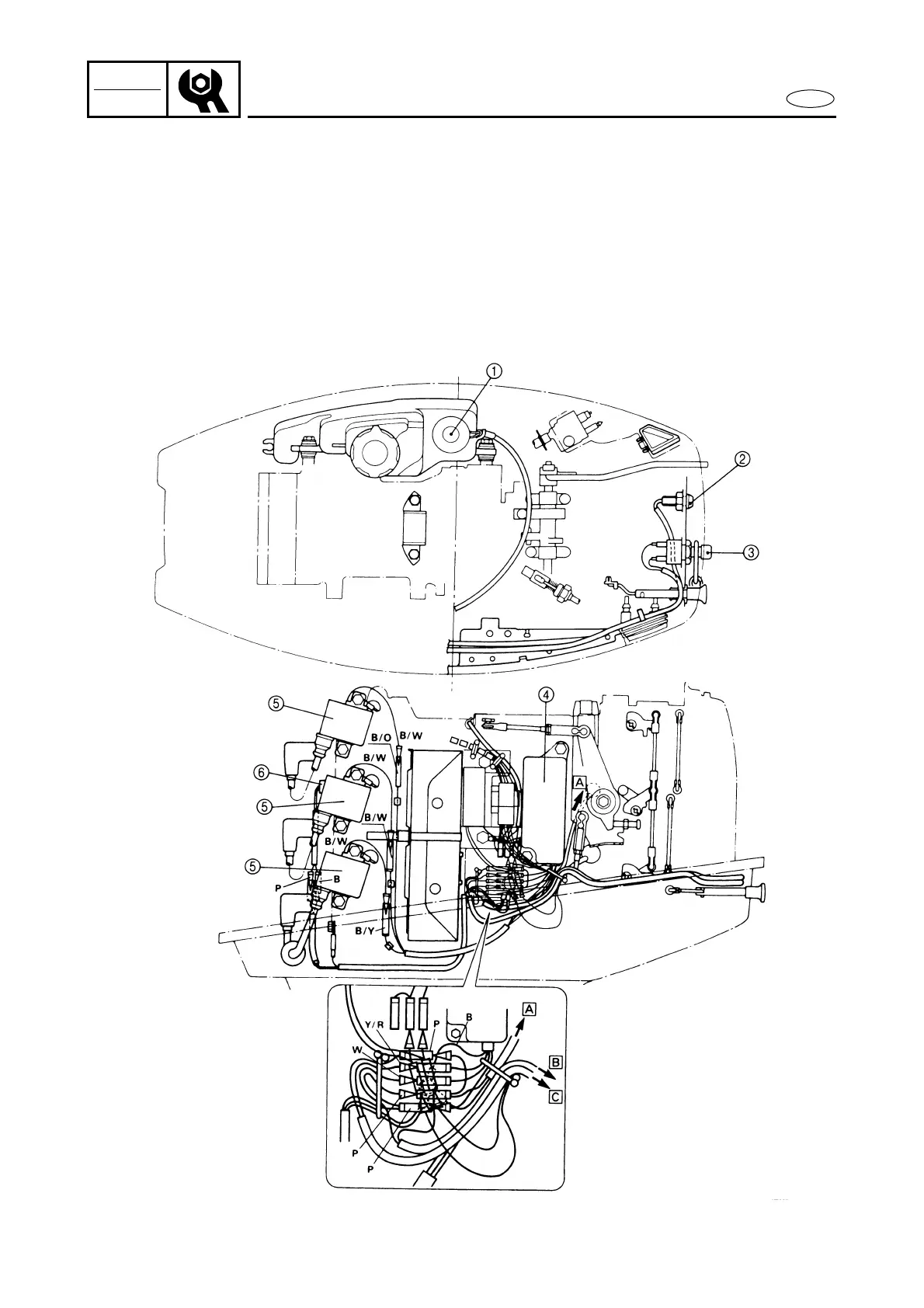

ELECTRIC WIRING
Check that all leads and connectors are properly connected.
25JMH, 25JMHO, 30DMH, 30DMHO
1 Oil level gauge*
2 Oil level/engine temp.
warning lamp*
3 Engine stop switch
4 CDI unit
5 Ignition coil
6 Thermo switch
Å To oil level gauge
ı To engine stop switch
Ç To oil level/engine temp.
warning lamp
*: Oil injection model
B : Black
G : Green
L : Blue
O : Orange
P : Pink
R : Red
W : White
Y : Yellow
