8-22

–+

ELEC

STARTING SYSTEM

FUEL ENRICHMENT VALVE

(25JEO, 25JETO, 30DE, 30DEO, 30DET,

30DETO)

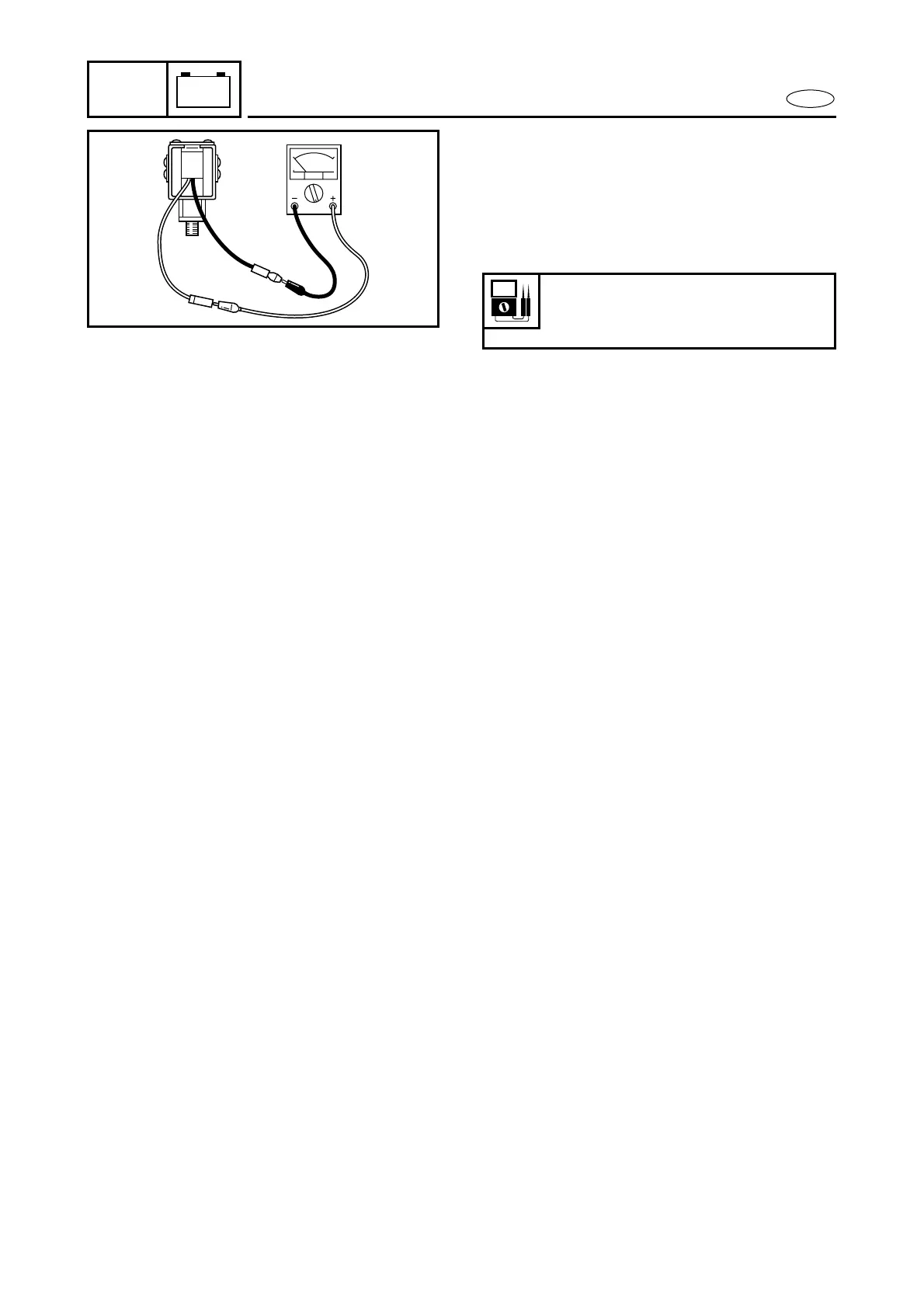

1. Measure:

● Fuel enrichment valve resistance

Out of specification → Replace.

Fuel enrichment valve resistance:

Black - Blue

3.4 ~ 4.0 Ω at 20˚C (68˚F)
