Yamaha 30D - 25 Jeo, 30 Dmo, 30 De, 30 Deo

3-4
INSP
ADJ
E
PREDELIVERY SERVICE

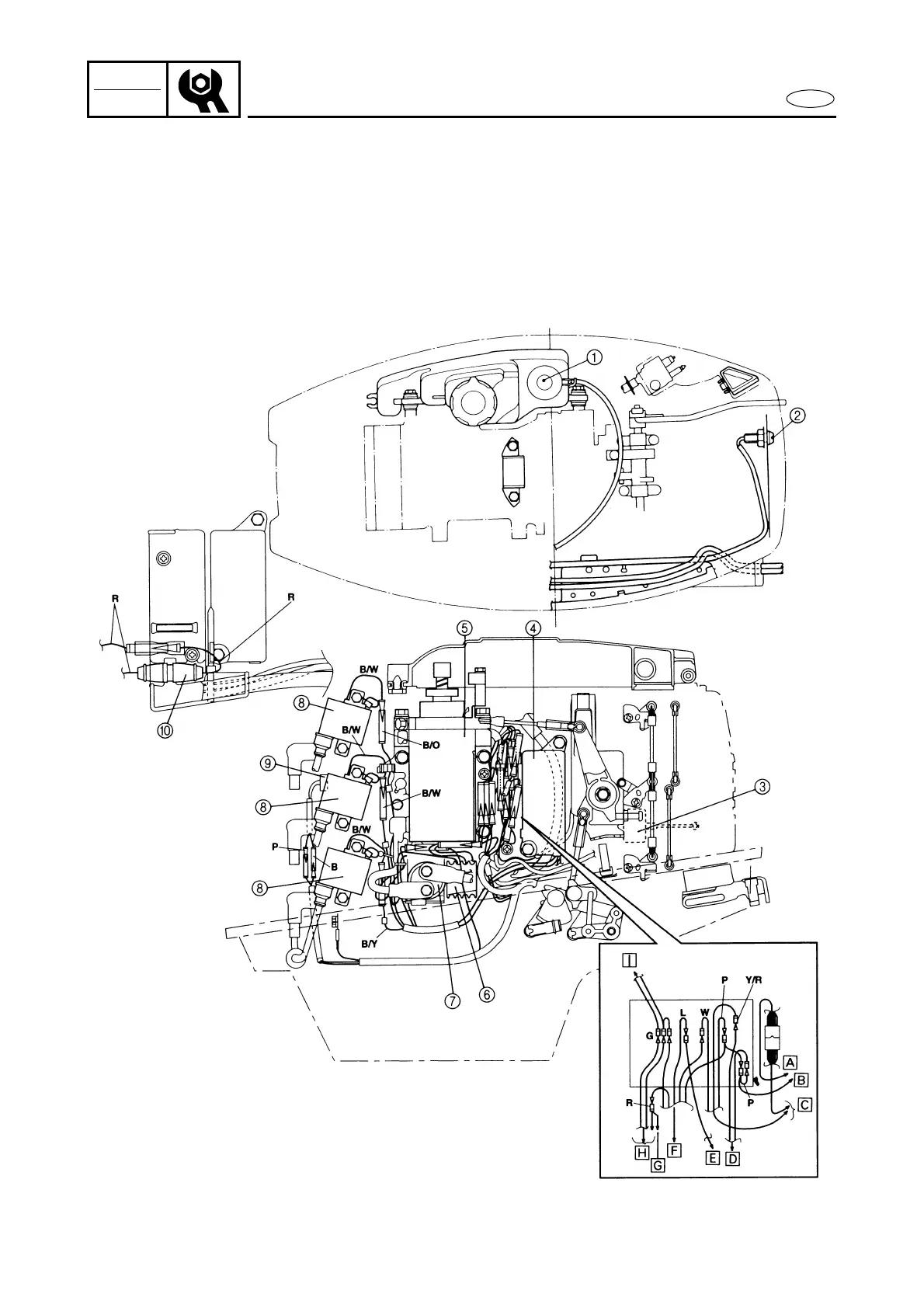

25JEO, 30DMO, 30DE, 30DEO
1 Oil level gauge
2 Oil level/engine temp.
warning lamp
3 Fuel enrichment valve
4 CDI unit
5 Starter motor*
6 Rectifier*
7 Starter relay*
8 Ignition coil
9 Thermo switch
0 Fuse holder*
Å To stator
ı To oil level gauge
Ç To CDI unit
Î To oil level/engine temp.
warning lamp
‰ To fuel enrichment valve
Ï To wire harness
Ì To fuse holder
Ó To rectifier
È To lighting coil
*: Electric starter model
B : Black
G : Green
L : Blue
O : Orange
P : Pink
R : Red
W : White
Y : Yellow
