Yamaha 30D - ASSEMBLY

4-8
FUEL
E
CARBURETOR
E33003-0
ASSEMBLY

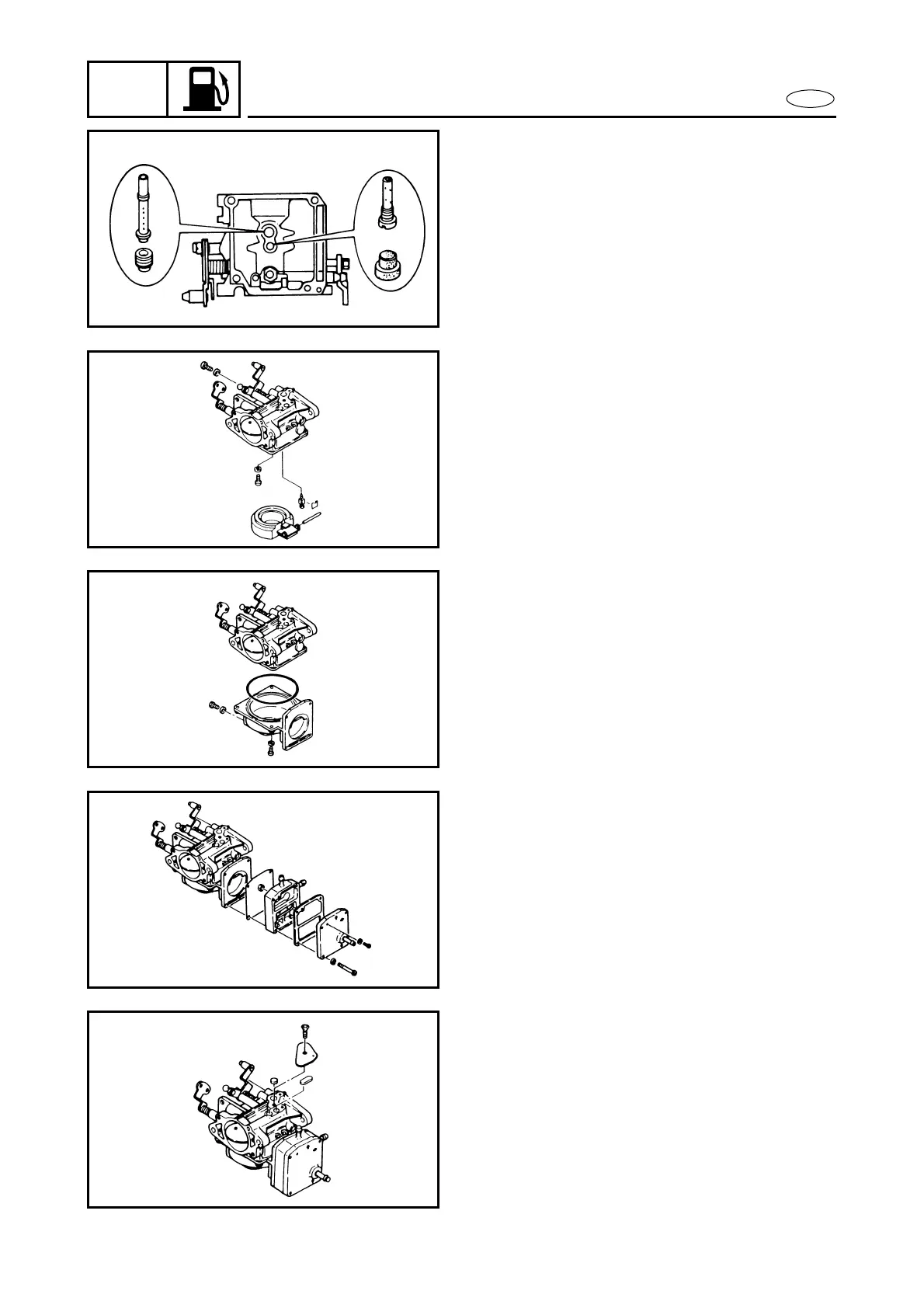

1. Insert the main nozzle fully, and screw
in the main jet until tight.
2. Screw in the pilot jet fully, and install
the cap.
3. Install the needle-valve on the float,
attach the float to the carburetor body
with the float-pin, and tighten the
screw.
4. Install a new gasket to the float-cham-
ber, install it to the carburetor body, and
secure with the screws.
5. Install the diaphragm, body, cover, with
the new gasket, and secure with the
screws to the carburetor.
6. Install the plates, with the packing and
secure with the screw to the carburetor.
