Yamaha 30D - TRIM SENSOR

8-31
–+
ELEC
E
POWER TRIM AND TILT (PTT) CONTROL SYSTEM
TRIM SENSOR

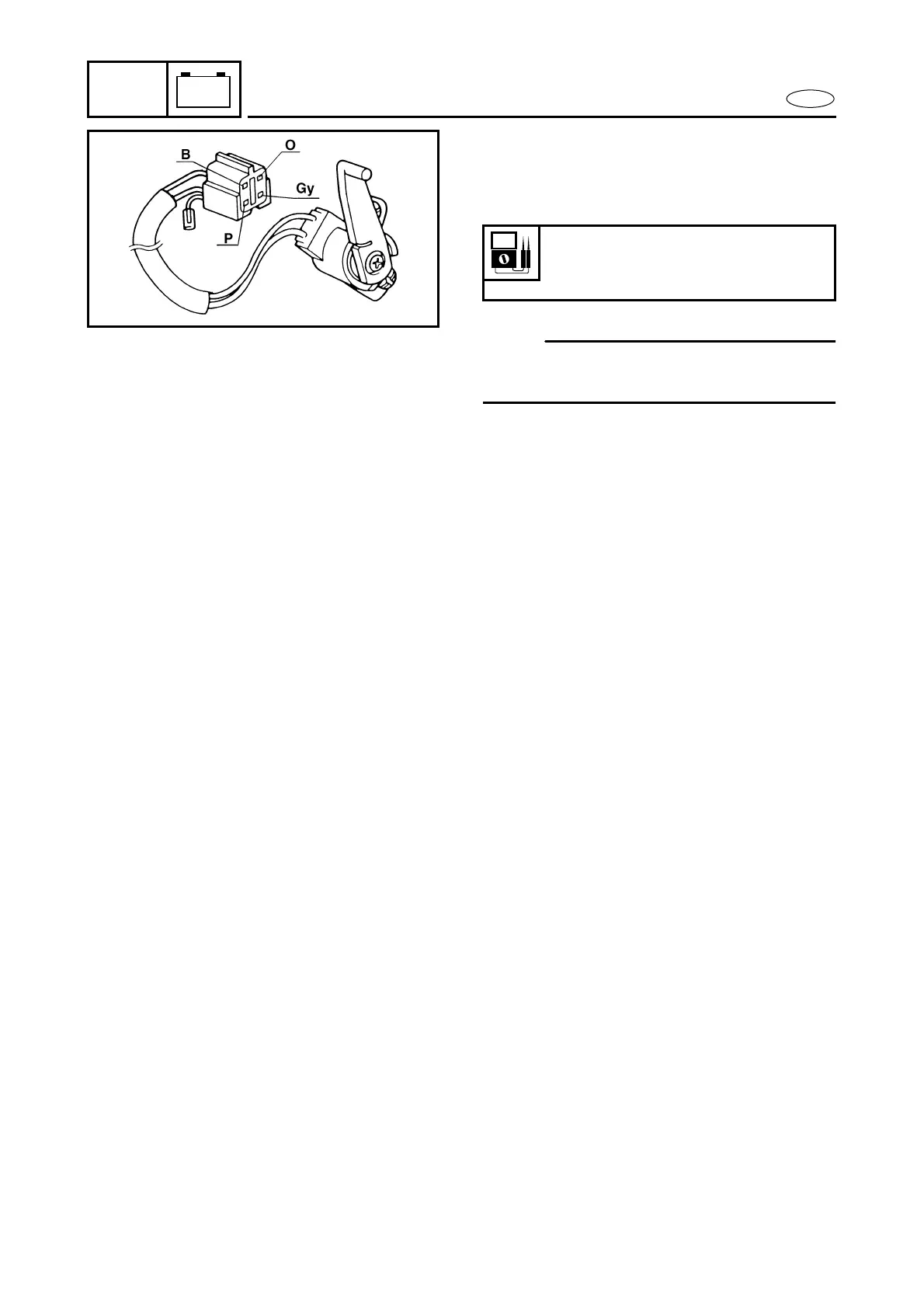

1. Measure:
● Trim sensor resistance
Out of specification → Replace.
NOTE:
Turn the lever and measure the resistance
as it gradually changes.
Trim sensor resistance:
Pink (P) – Black (B)
582 ~ 873 Ω at 20˚C (68˚F)
