Yamaha 30D - 30 Dwh, 30 Dwho

3-3
INSP
ADJ
E

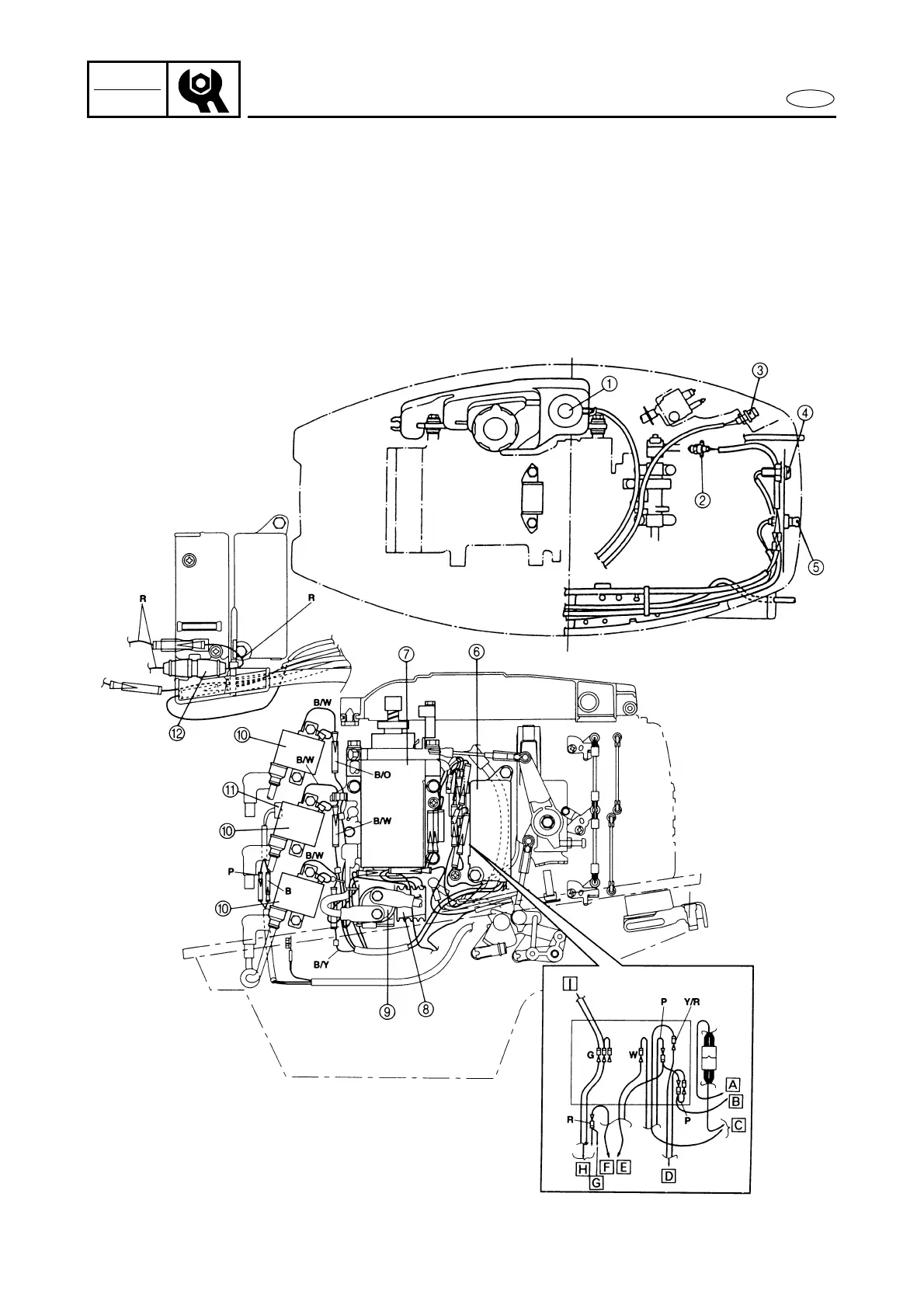

PREDELIVERY SERVICE
30DWH, 30DWHO
1 Oil level gauge
2 Neutral switch
3 Starter switch
4 Oil level/engine temp.
warning lamp
5 Engine stop switch
6 CDI unit
7 Starter motor
8 Rectifier
9 Starter relay
0 Ignition coil
A Thermo switch
B Fuse holder
Å To stator
ı To oil level gauge
Ç To CDI unit
Î To oil level/engine temp.
warning lamp
‰ To engine stop switch
Ï To starter switch
Ì To fuse holder
Ó To rectifier
È To lighting coil
B : Black
G : Green
L : Blue
O : Orange
P : Pink
R : Red
W : White
Y : Yellow
