7-1

BRKT

STEERING HANDLE

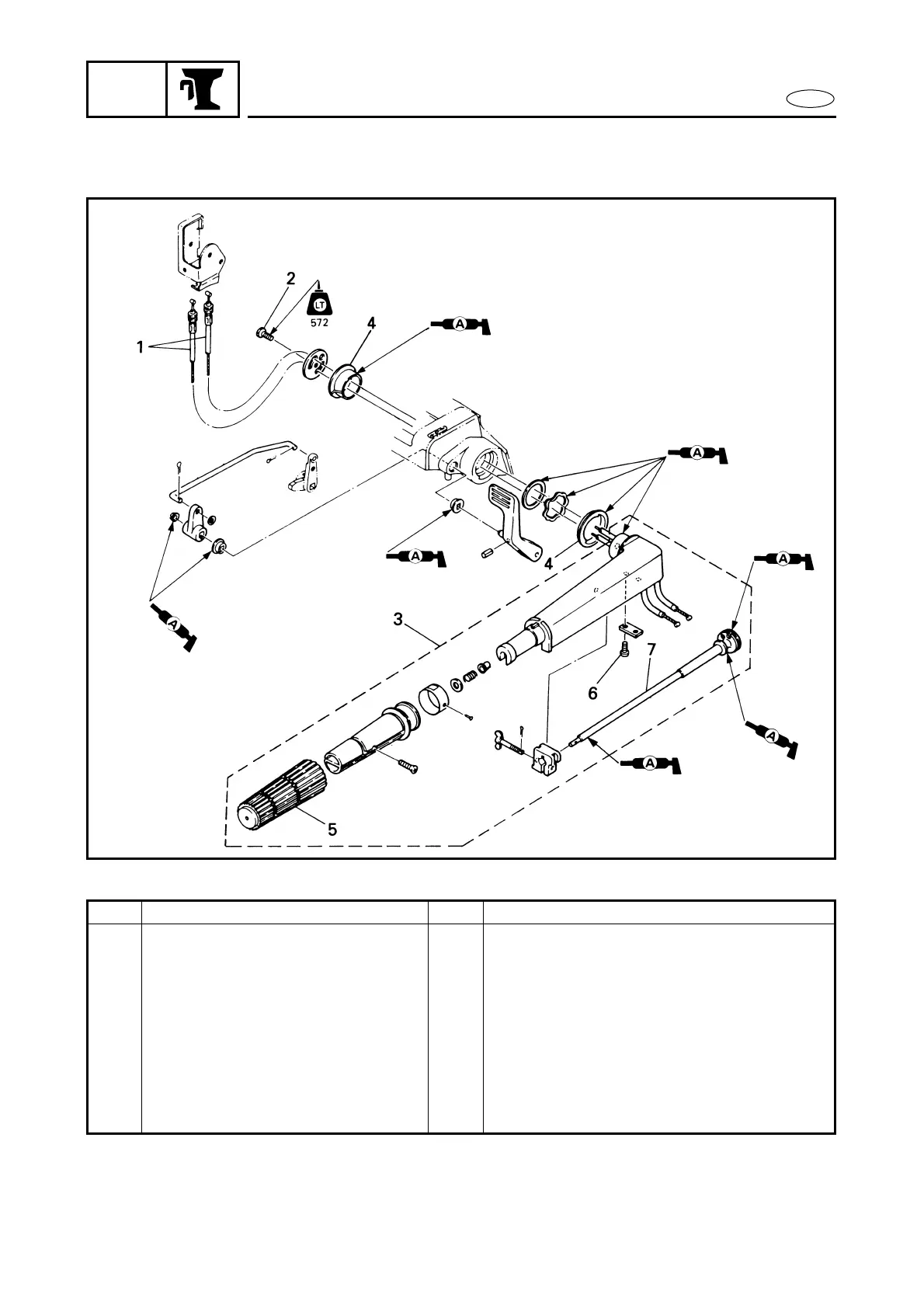

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

STEERING HANDLE REMOVAL

Follow the left “Step” for removal.

1 Throttle cable 2

2 Bolt 1

3 Steering handle assembly 1

4 Bushing 2

5 Throttle grip 1

6 Screw 2

7 Throttle axle 1

Reverse the removal steps for installation.
