Yamaha 30D - CLAMP BRACKET (PTT model)

To Next Page

To Previous Page

7-14

BRKT

CLAMP BRACKET

CLAMP BRACKET (PTT model)

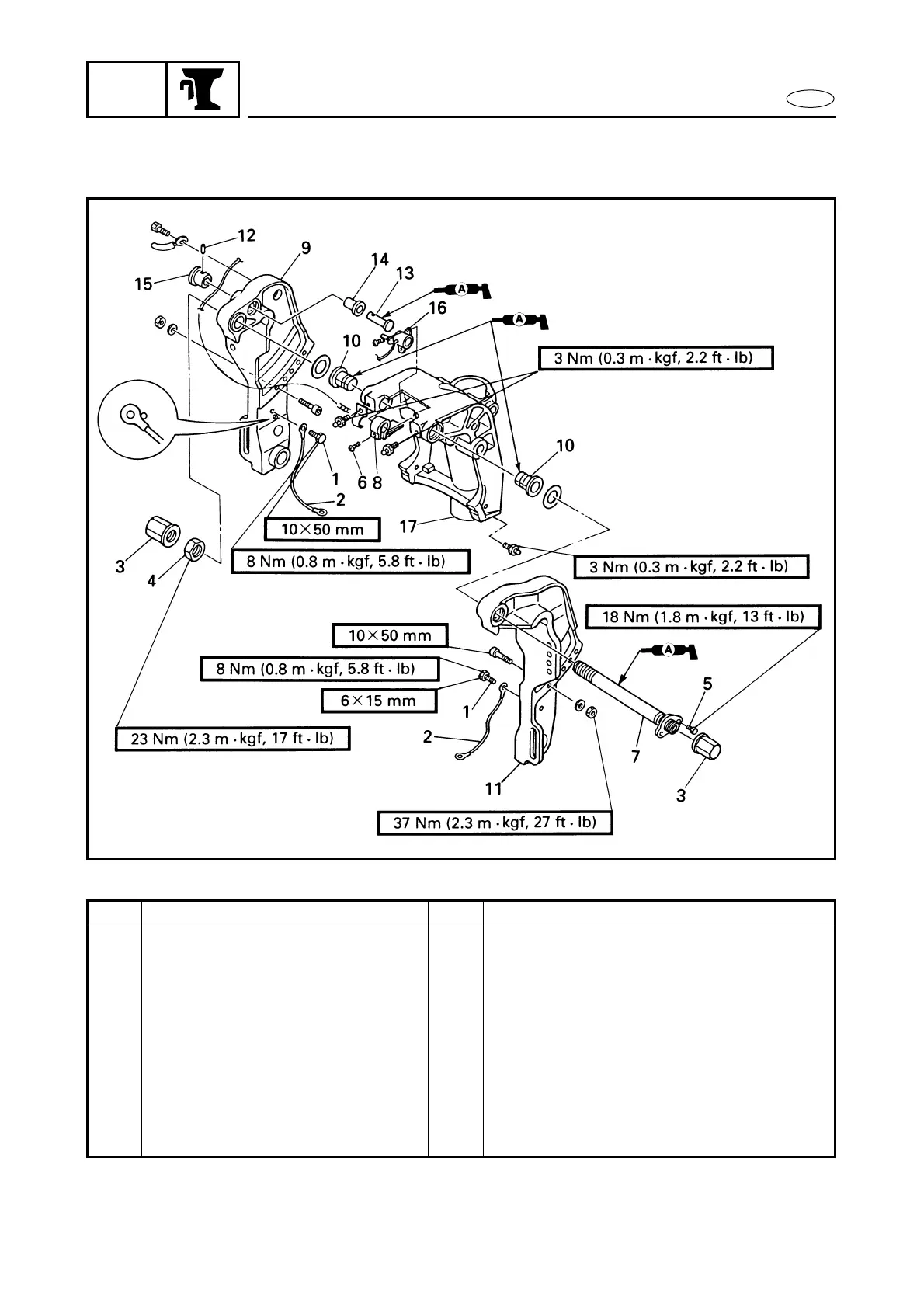

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

CLAMP BRACKET DISASSEMBLY

Follow the left “Step” for removal.

PTT unit

1 Bolt 2

2 Ground lead 2

3 Cap nut 2

4 Nut 1

5 Bolt 1

6 Screw 1

7 Shaft bolt 1

8 Trim sender cam 1
