Yamaha 30D - SWIVEL BRACKET

To Next Page

To Previous Page

7-16

BRKT

SWIVEL BRACKET

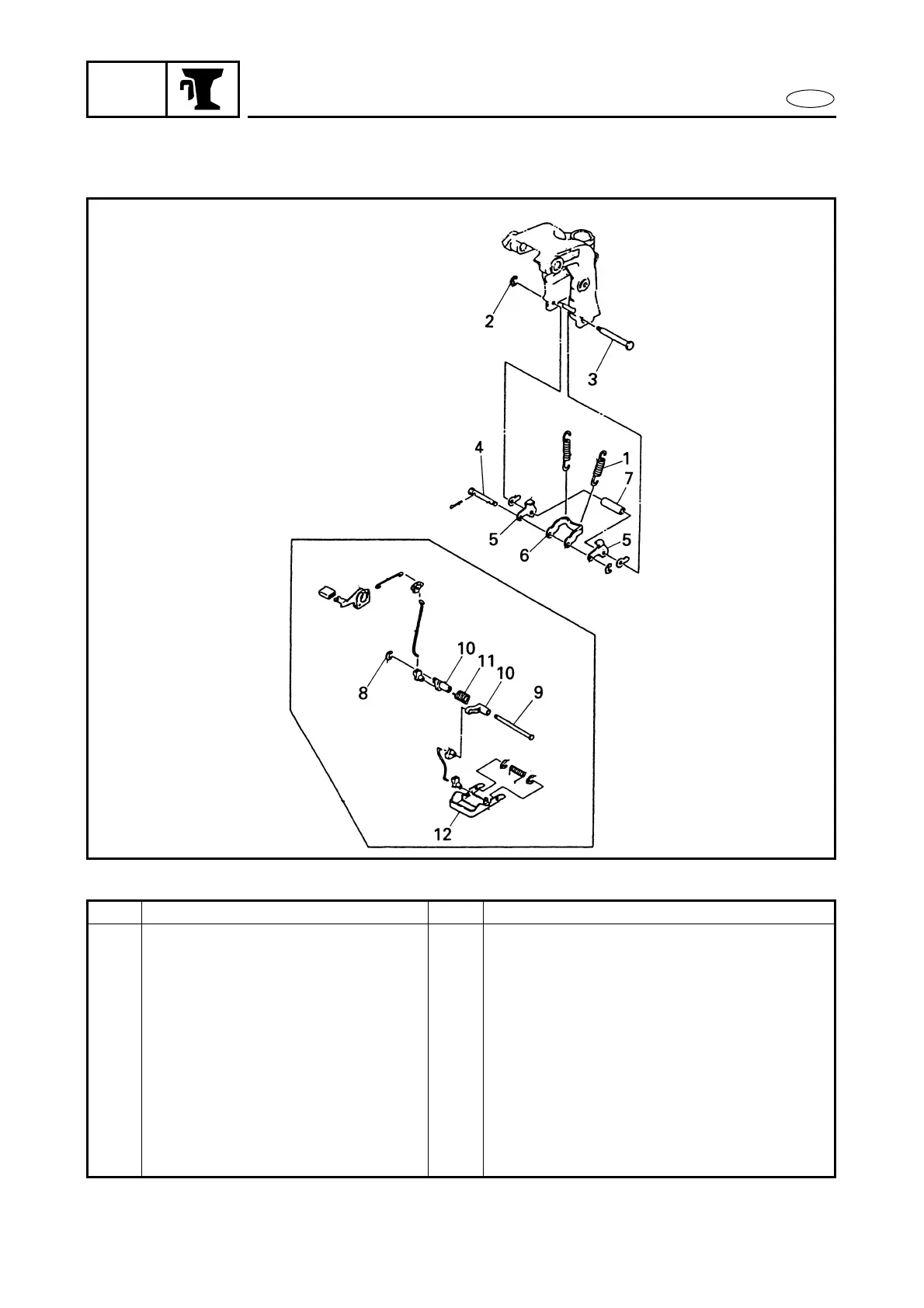

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

SWIVEL BRACKET

DISASSEMBLY

Follow the left “Step” for removal.

Swivel bracket assembly

1 Spring 2

2 Circlip 1

3 Reverse lock shaft 1

4 Reverse lock arm shaft 1

5 Reverse lock jaw 2

6 Reverse lock arm 1

7 Collar 1

8 Circlip 1 Shallow water drive modell
