Yamaha 30D - Gear Case; Reverse Gear Shim Selection

6-11
E
LOWR
ASSEMBLY AND ADJUSTMENT
Reverse gear shim selection
Refer to page 6-17. (For USA and CANADA)
Refer to page 6-18.
(Except for USA and CANADA)
Gear case

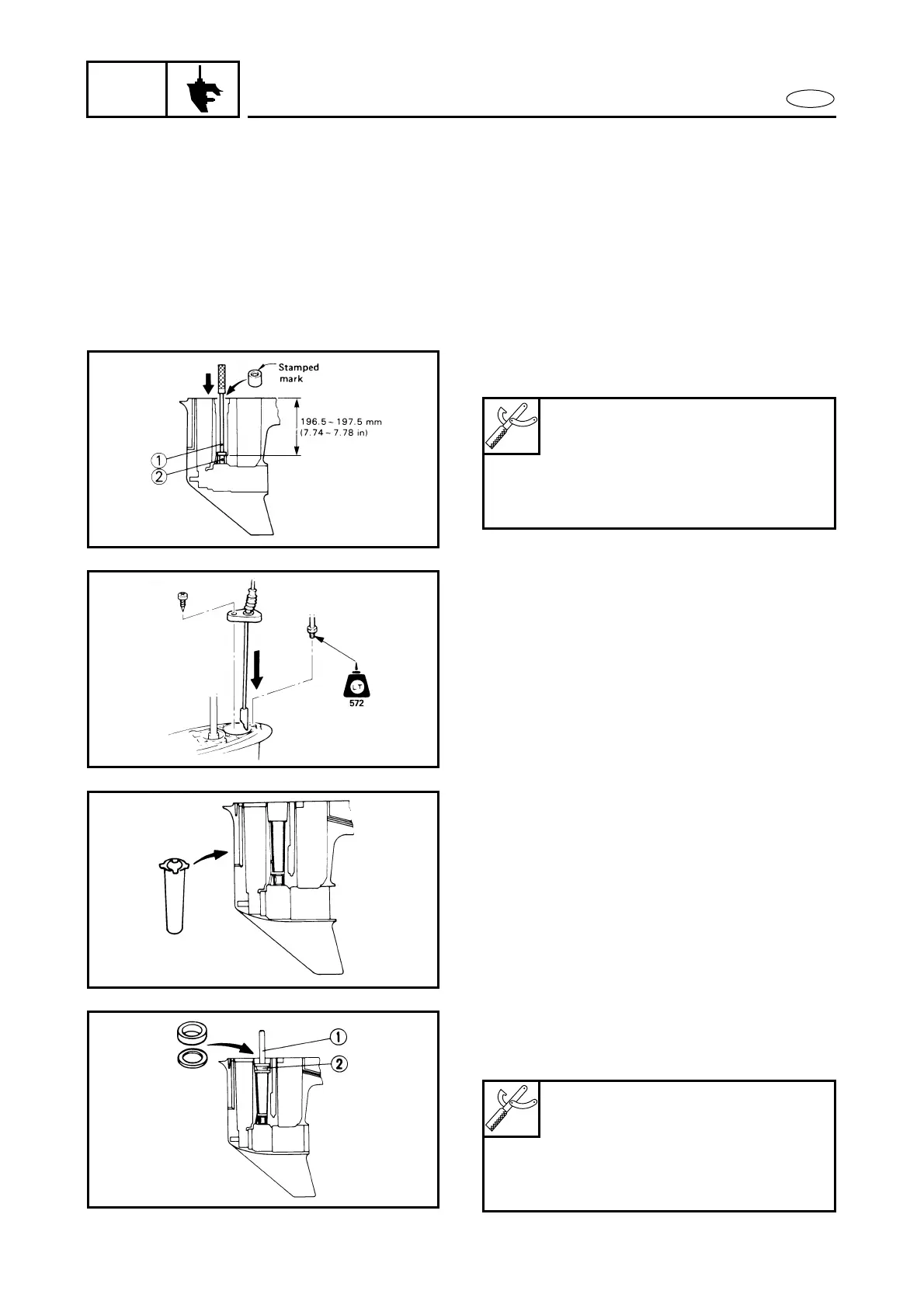

1. Install a new needle-bearing in position.
Drive rod:
YB-6229/
90890-06602........................... 1
Needle bearing attachment:
YB-6082/
90890-06615........................... 2
2. Sub-assemble a shift-rod, new boot, a
bracket, and then install the shift-rod
complete and tighten the installation
screw.
3. Align the drive-shaft sleeve locating-rib
with the recess in the gear case, and
place the drive-shaft sleeve into the
gear case.
4. Place the pinion-gear shim-pack in posi--
tion, and install the taper-roller bearing
outer race on the shim-pack.
Drive rod:
YB-6071/
90890-06606........................... 1
Bearing outer race attachment:
YB-6167/
90890-06624........................... 2
