Yamaha 30D - Gear Pump Exploded Diagram; Gear Pump Removal and Installation Chart

To Next Page

To Previous Page

7-29

BRKT

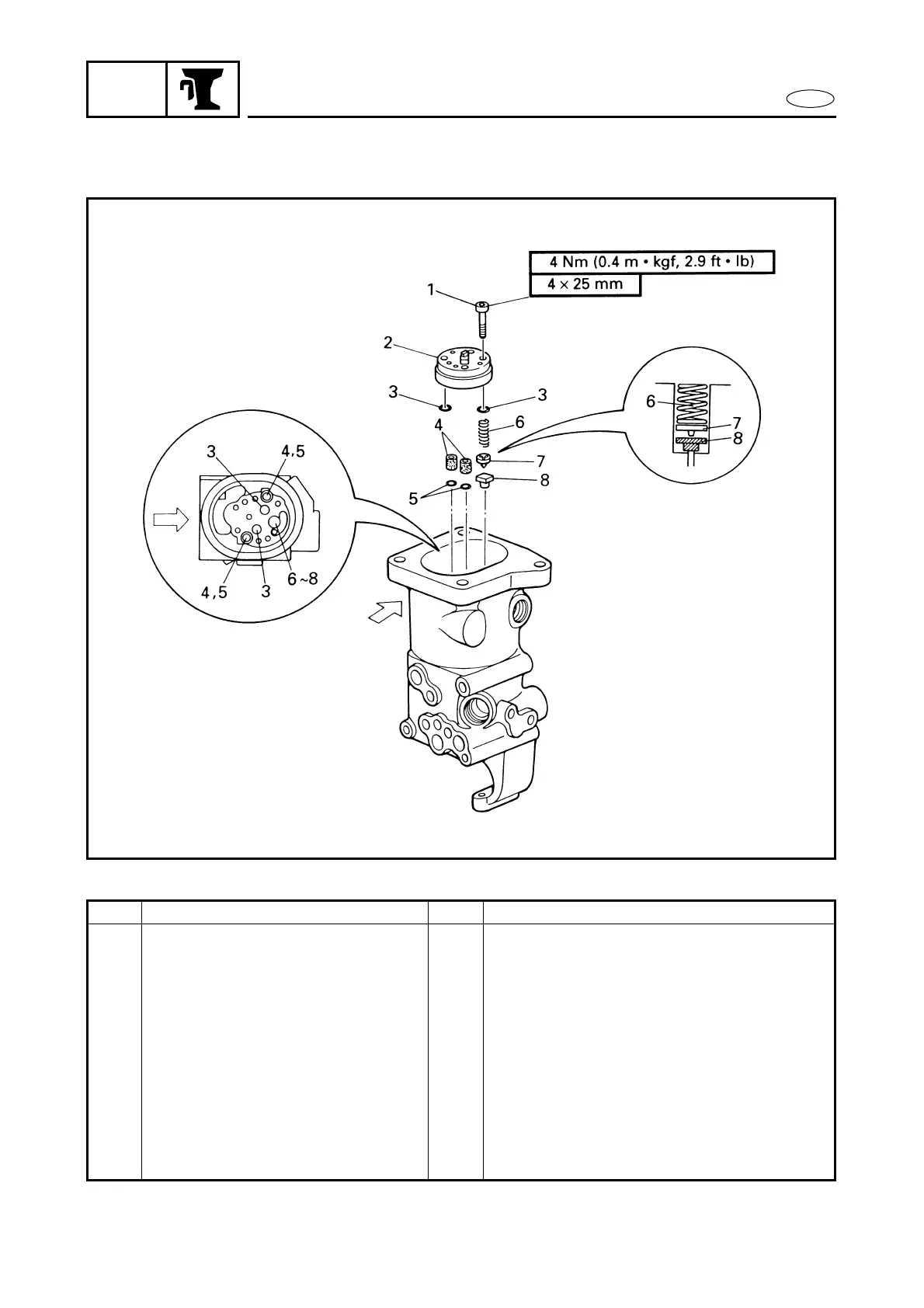

GEAR PUMP

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

GEAR PUMP REMOVAL Follow the left “Step” for removal.

PTT motor

1 Bolt 4

2 Gear pump 1

3 O-ring 2 4.5 × 1.5 mm

4 Filter 2

5 O-ring 2 3.5 × 1.5 mm

6 Spring 1

7 Valve support pin 1

8 Valve seat 1

Reverse the removal steps for installation.
