Yamaha 30D - Page 256

7-12
E
BRKT

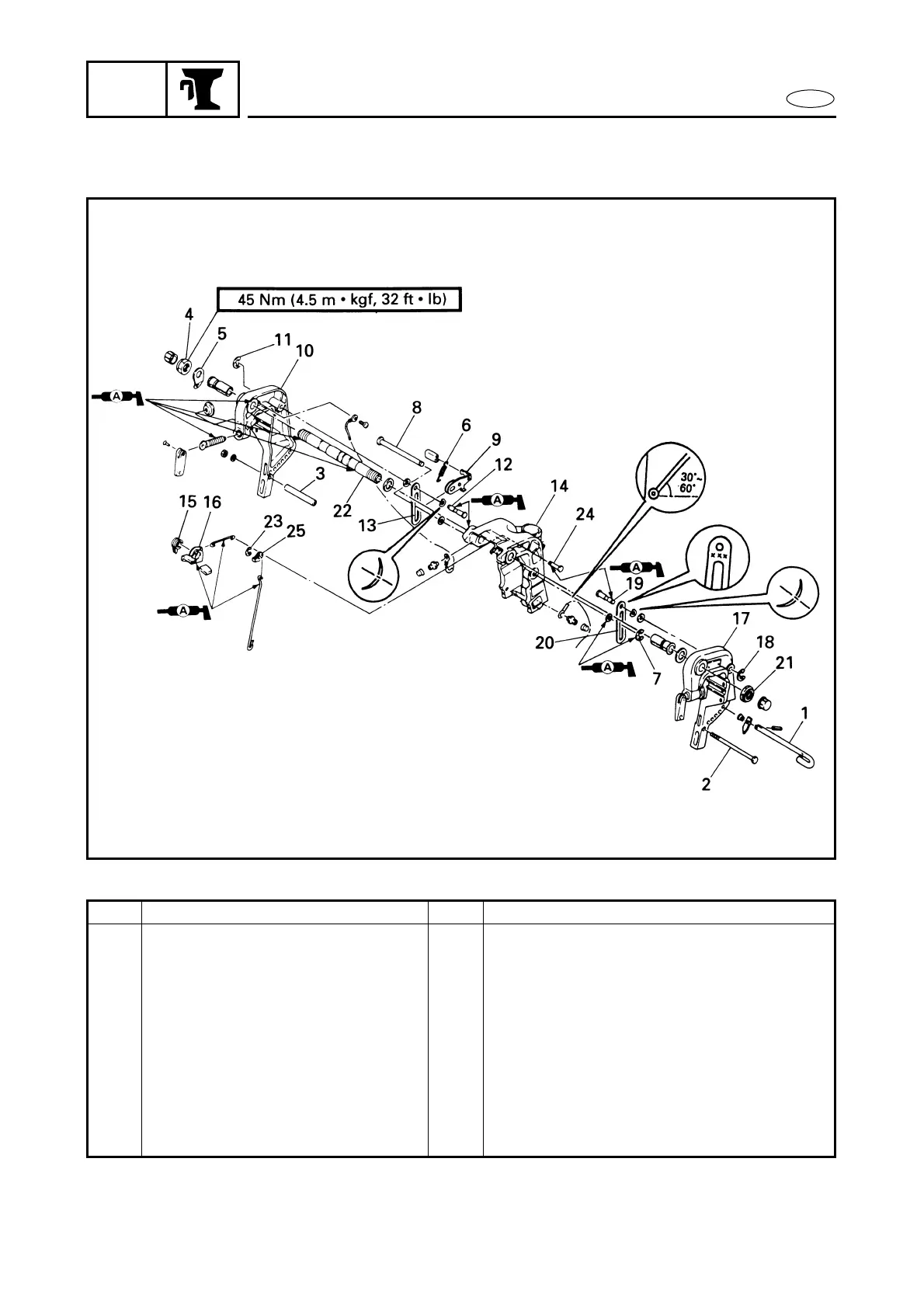

CLAMP BRACKET
EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
9 Tilt stop lever 1
10 Right clamp bracket 1
11 Circlip 1
12 Pin 1
13 Stopper guide plate 1 1
14 Swivel bracket 1
15 Spring 1
16 Tilt lever 1 1
17 Left clamp bracket 1
18 Circlip 1
