7-13

E

BRKT

CLAMP BRACKET

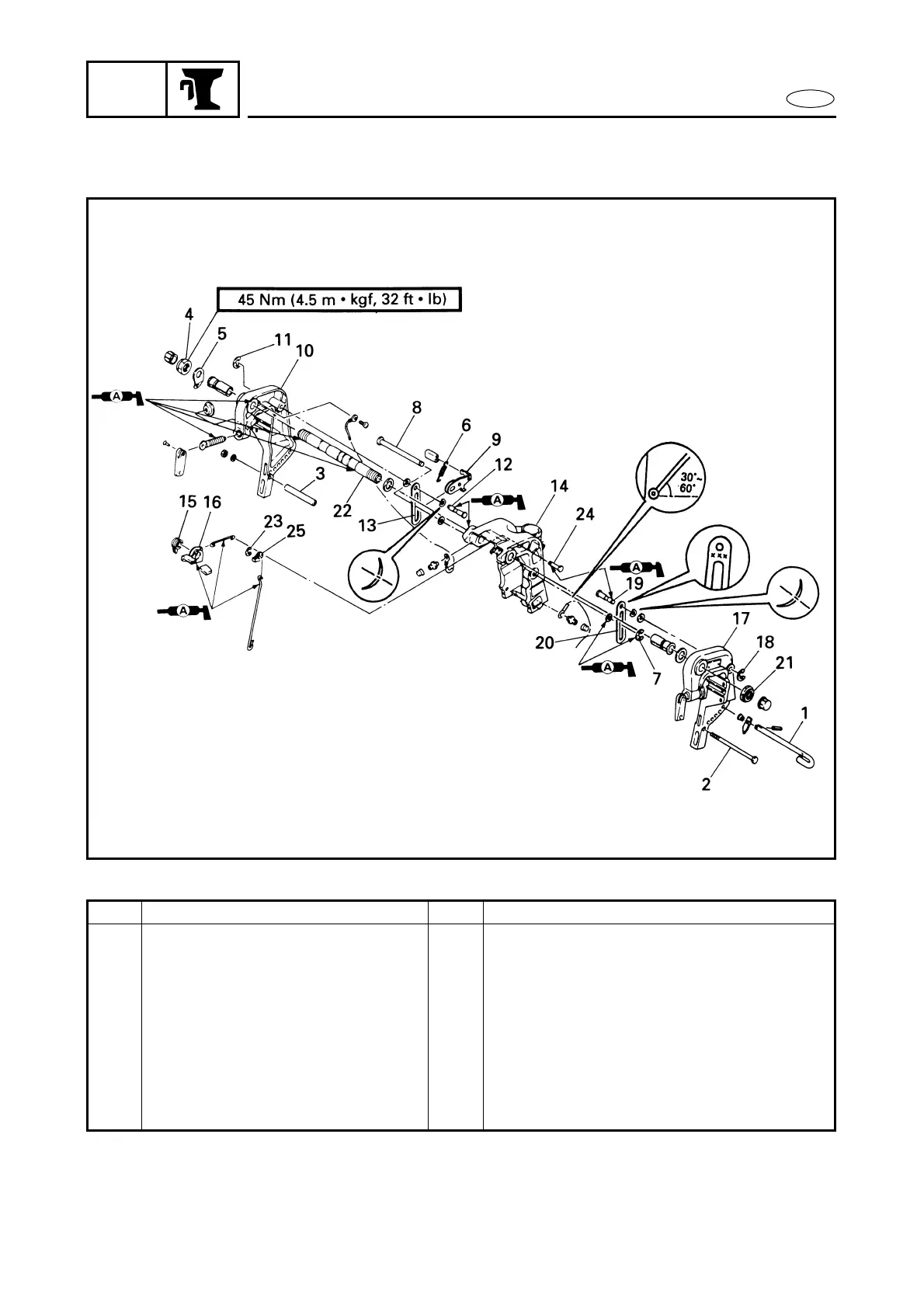

EXPLODED DIAGRAM

Step Procedure/Part name Q’ty Service points

19 Pin 1

20 Stopper guide plate 2 1

21 Clamp nut 1

22 Shaft bolt 1

23 Circlip 1

24 Pin 1

25 Tilt lever 2 1

Reverse the disassembly steps for instal-

lation.
