8-4
–+
ELEC
E

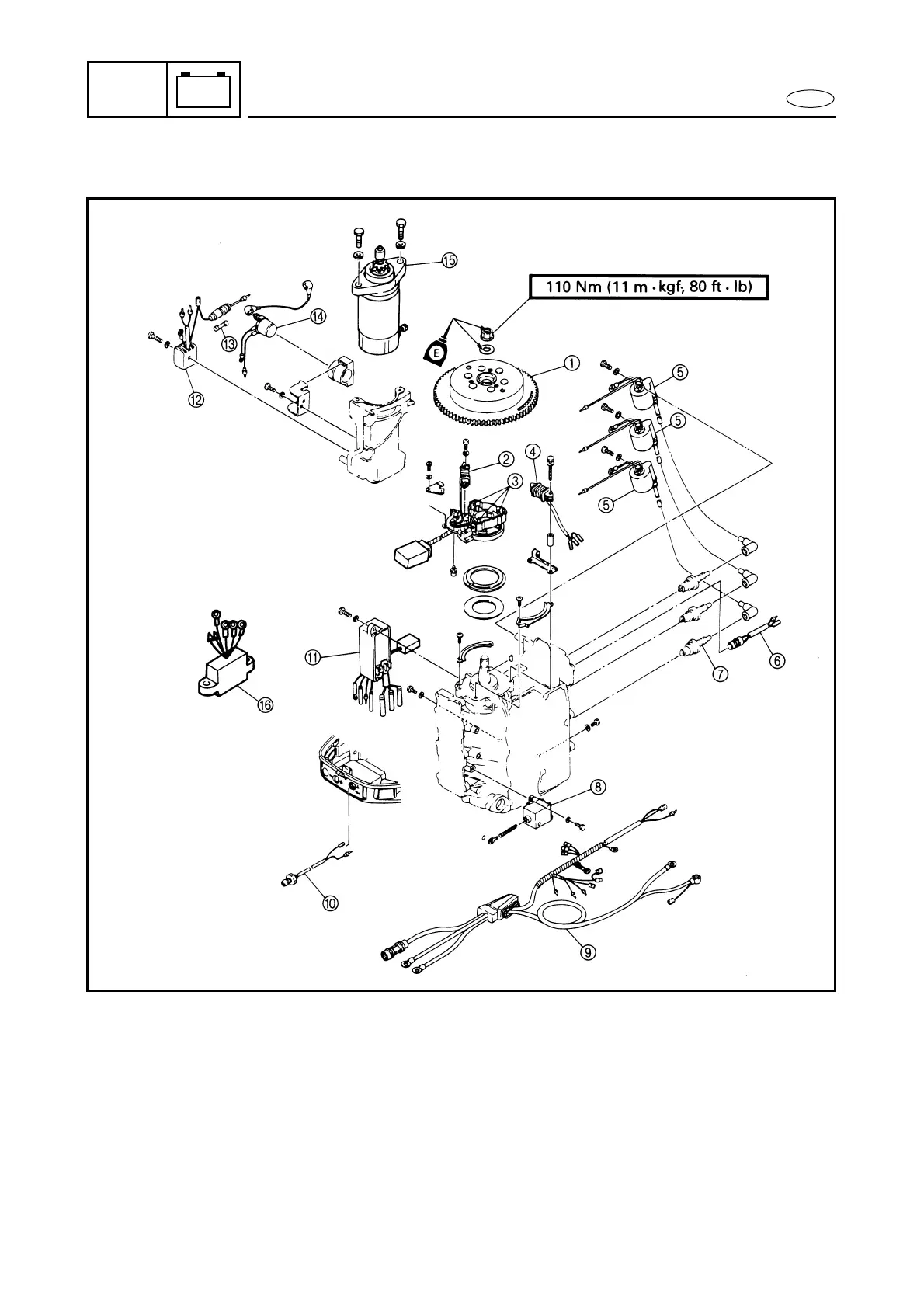

ELECTRICAL COMPONENTS
(25JETO, 30DET, 30DETO)
1 Rotor assembly
2 Charge coil
3 Pulser coils
4 Lighting coil
5 Ignition coils
6 Thermo switch
7 Spark plugs
8 Fuel enrichment valve
9 Wire harness
0 Oil level/engine temp. warning lamp
A CDI unit
B Rectifier
C Fuse (10A)
D Starter relay
E Starter motor
F PTT relay
