Yamaha 30D - Page 350

8-24
–+
ELEC
E

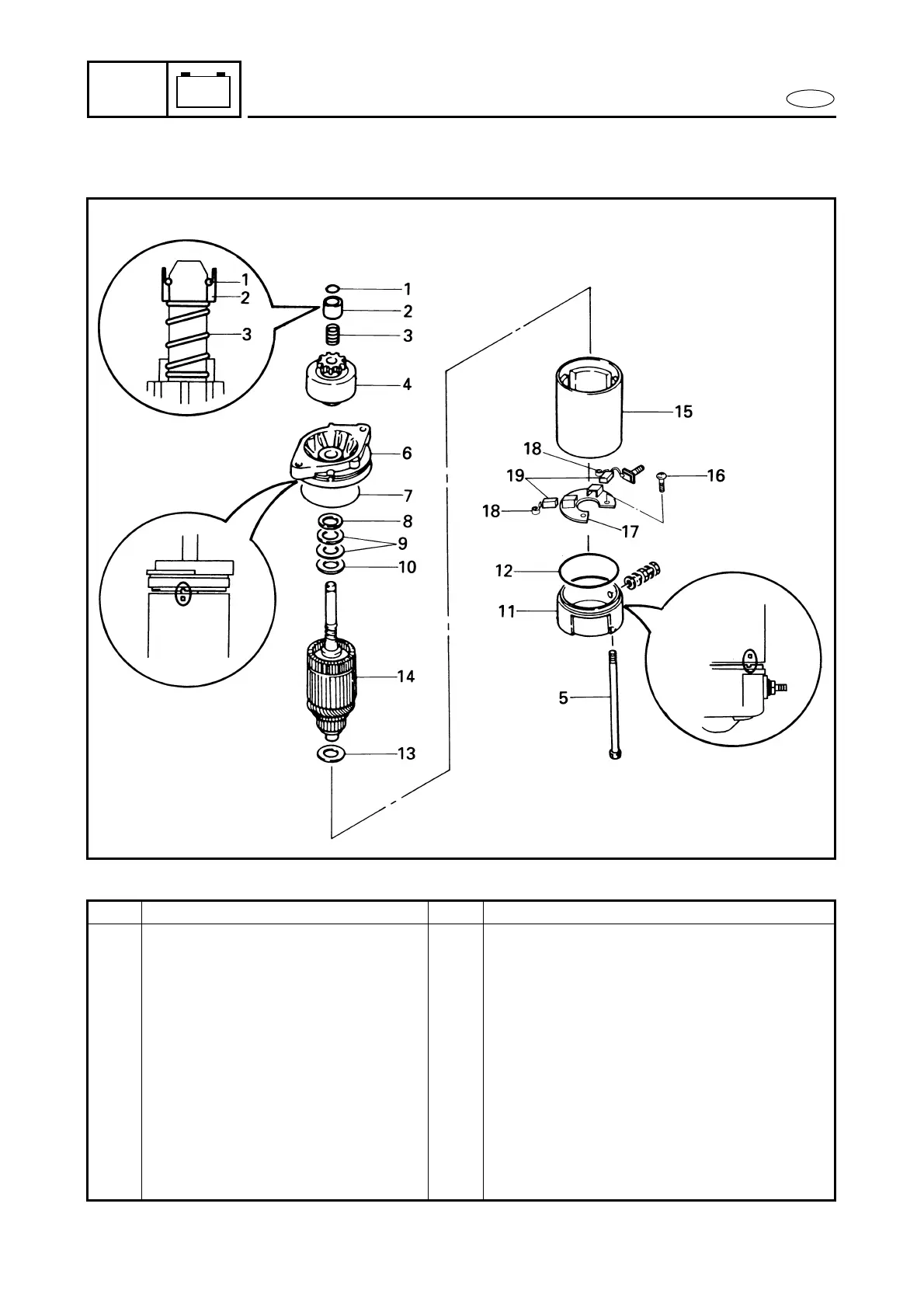

STARTER MOTOR
EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
10 Washer (t 2.0 mm) 1
11 Rear bracket 1
12 O-ring 1
13 Washer (t 0.25 mm) 1
14 Armature 1
15 Stator 1
16 Screw 2
17 Brush holder 1
18 Spring 2
19 Brush 2
Reverse the disassembly steps for instal-
lation.
