8.13 Diagnostic Tools
8.13.2 Easy FFT
8-86

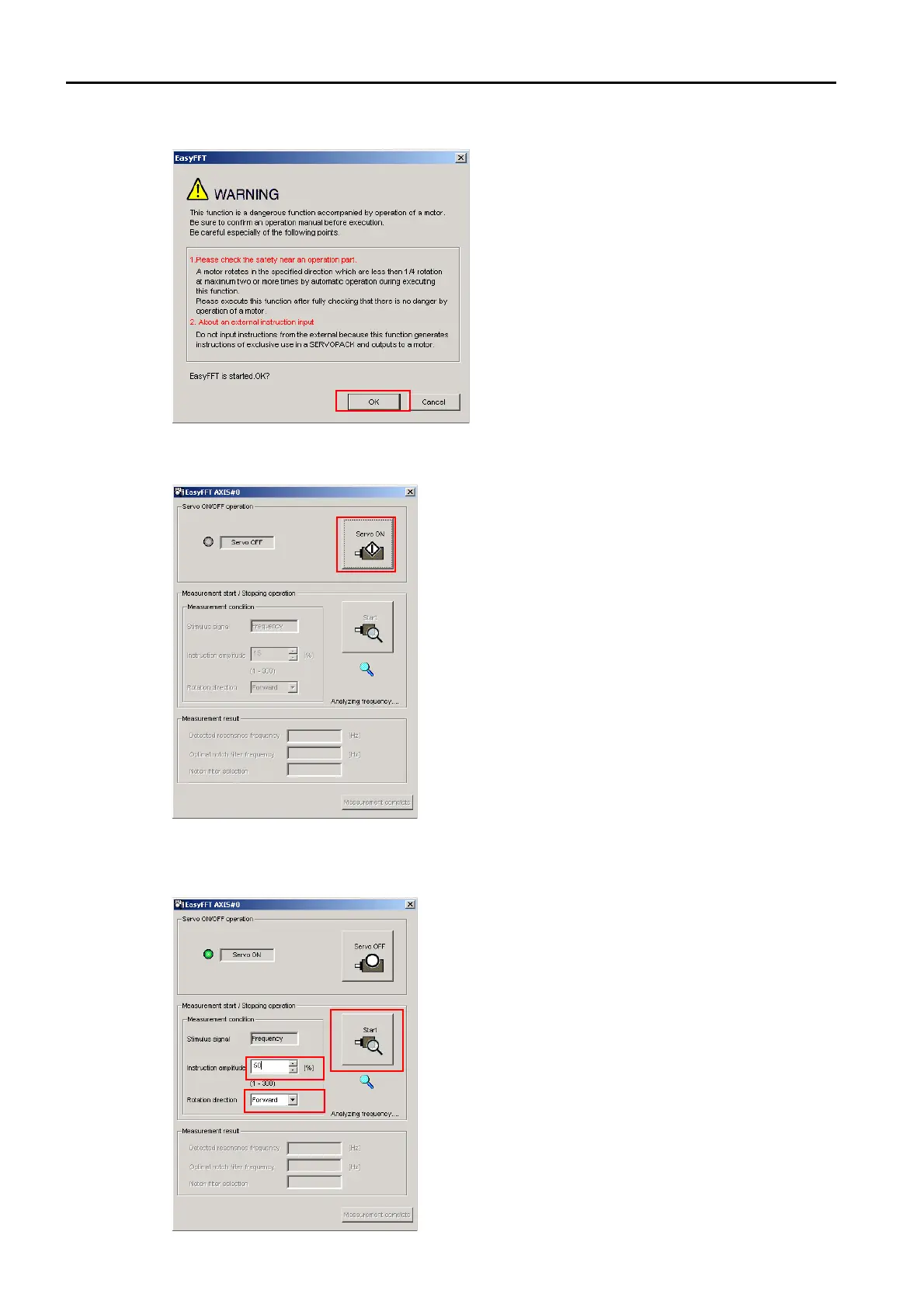

2. Click the OK Button.
Another EasyFFT Dialog Box will be displayed.
3. Click the Servo ON Button.
4. Select the instruction (reference) amplitude and the rotation direction in the Measure-
ment condition Area, and then click the Start Button.
The motor shaft will rotate and measurements will start.
