13.4 Utility Function (Fn) Operations on the Panel Operator

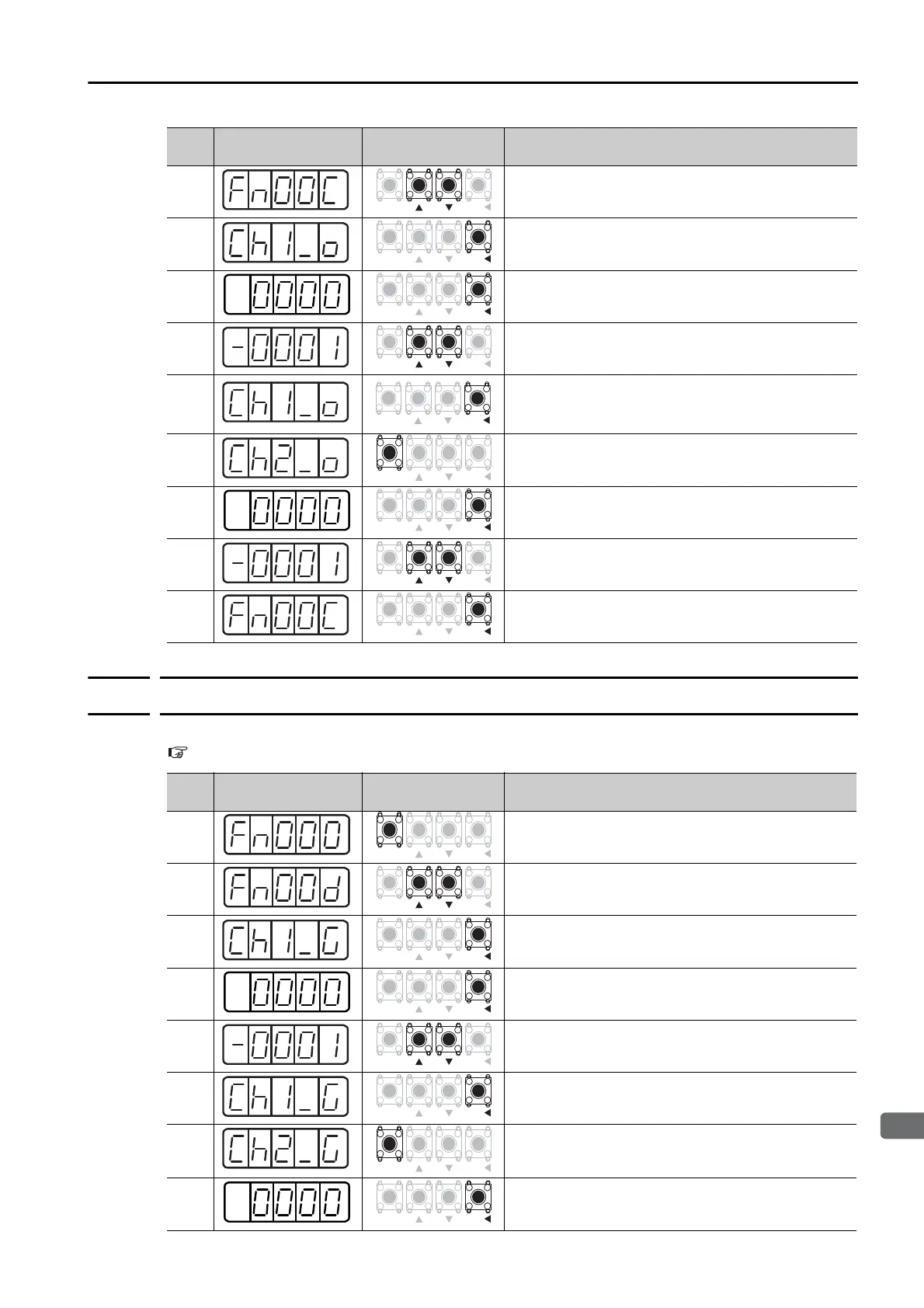

13.4.12 Adjust Analog Monitor Output Gain (Fn00D)
13-19
13
Panel Displays and Panel Operator Procedures
13.4.12
Adjust Analog Monitor Output Gain (Fn00D)
Refer to the following section for information on this utility function other than the procedure.
Adjusting the Analog Monitor Output on page 9-10
2 Press the UP Key or DOWN Key to display Fn00C.
3
Press the DATA/SHIFT Key for approximately one sec-
ond. The display shown at the left will appear.
4
Press the DATA/SHIFT Key. The offset will be dis-
played as shown on the left.
5 Press the UP Key or DOWN Key to adjust the offset.
6
Press the DATA/SHIFT Key. The display shown on the
left will appear again.
7
Press the MODE/SET Key. The display will change to
the monitor output for channel 2 (analog monitor 2 out-
put).
8
Press the DATA/SHIFT Key. The offset will be dis-
played as shown on the left.
9 Press the UP Key or DOWN Key to adjust the offset.
10
Press the DATA/SHIFT Key for approximately one sec-
ond. Ch2-o will be displayed, and then Fn00C will be
displayed again.
Step
Panel Display after
Operation
Keys Operation
MODE
/
SET
DATA
/
MODE
/
SET
DATA
/
MODE
/
SET
DATA
/
Step
Panel Display after
Operation
Keys Operation
1
Press the MODE/SET Key to enter Utility Function
Mode.
2 Press the UP Key or DOWN Key to display Fn00D.
3
Press the DATA/SHIFT Key for approximately one sec-
ond. The display shown at the left will appear.
4
Press the DATA/SHIFT Key. The gain adjustment will
be displayed as shown on the left.
5 Press the UP Key or DOWN Key to adjust the gain.
6
Press the DATA/SHIFT Key. The display shown on the
left will appear again.
7
Press the MODE/SET Key. The display will change
from the monitor output for channel 1 to the monitor
output for channel 2.
8
Press the DATA/SHIFT Key. The gain adjustment will
be displayed as shown on the left.
MODE
/
SET
DATA
/
MODE
/
SET
DATA
/
MODE
/
SET
DATA
/
MODE
/
SET
DATA
/
