YASKAWA E-7-Series SGD7S - Flow of Trial Operation for Linear Servomotors

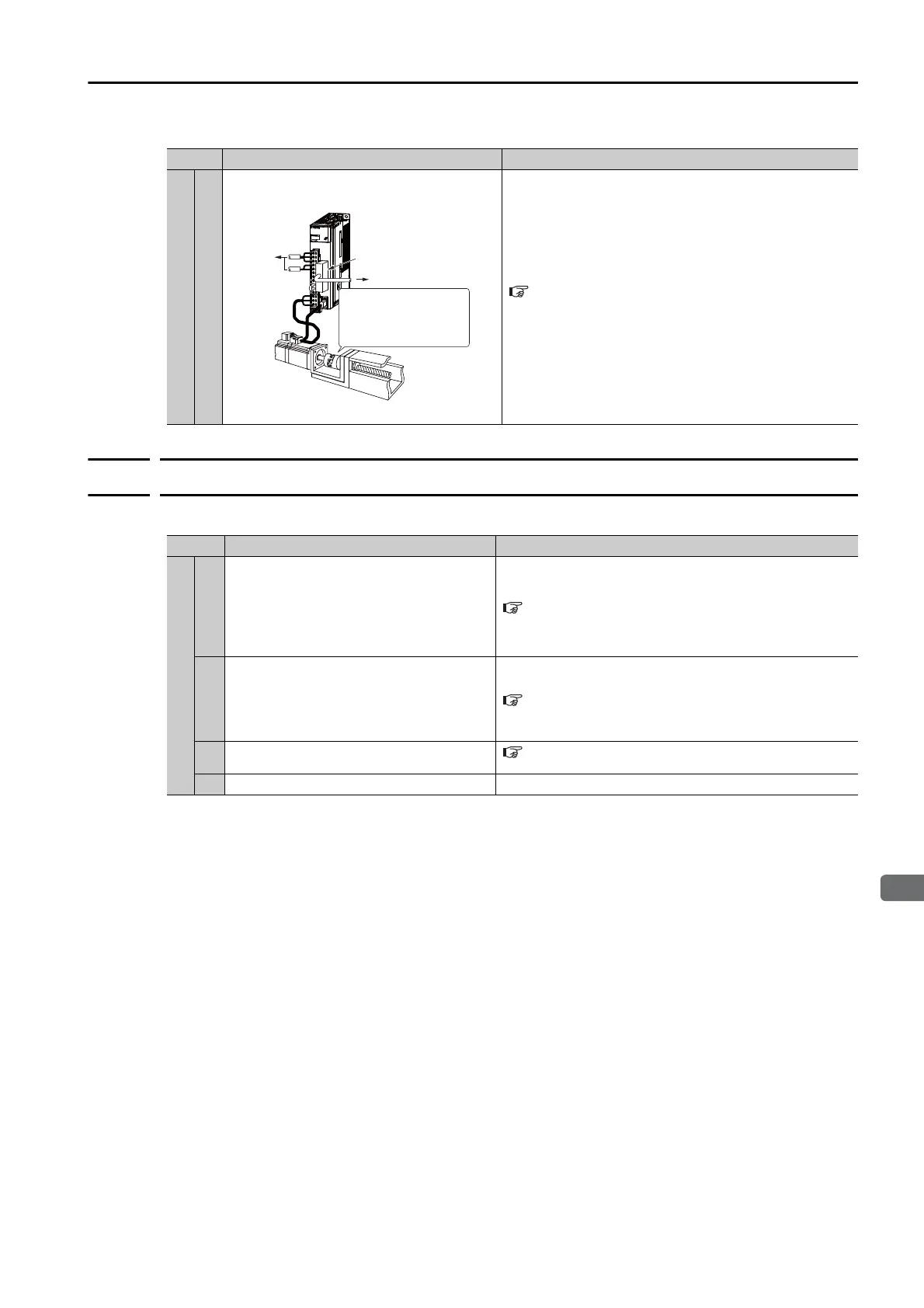

7.1 Flow of Trial Operation
7.1.2 Flow of Trial Operation for Linear Servomotors
7-3
7
Trial Operation and Actual Operation
7.1.2 Flow of Trial Operation for Linear Servomotors
The procedure for trial operation is given below.
Trial Operation
8
Trial Operation with the Servomotor Con-
nected to the Machine
7.5 Trial Operation with the Servomotor Connected to
the Machine on page 7-17
Continued from previous page.
Step Meaning Reference
T
o power
supply
CN1, to host controlle
r
Secure the motor ange to the
machine, and connect the
motor shaft to the load shaft
with a coupling or other means.
S
Step Meaning Reference
Preparations for Trial Operation
1
Installation
Install the Servomotor and SERVOPACK
according to the installation conditions.
First, operation is checked with no load.
Do not connect the Servomotor to the
machine.
Chapter 3 SERVOPACK Installation
2
Wiring and Connections
Wire and connect the SERVOPACK. First,
Servomotor operation is checked without
a load. Do not connect the CN1 connec-
tor on the SERVOPACK.
Chapter 4 Wiring and Connecting SERVOPACKs
3 Confirmations before Trial Operation
7.2 Inspections and Confirmations before Trial Opera-
tion on page 7-6
4Power ON −
Continued on next page.
