4.3 Wiring the Power Supply to the SERVOPACK
4.3.6 Wiring DC Reactors
4-18
2. Connect the External Regenerative Resistor between the B1/⊕ and B2 terminals.
3. Set Pn600 (Regenerative Resistor Capacity) and Pn603 (Regenerative Resistor Resis-
tance).
Refer to the following section for details on the settings.
5.19 Setting the Regenerative Resistor Capacity on page 5-57
4.3.6 Wiring DC Reactors

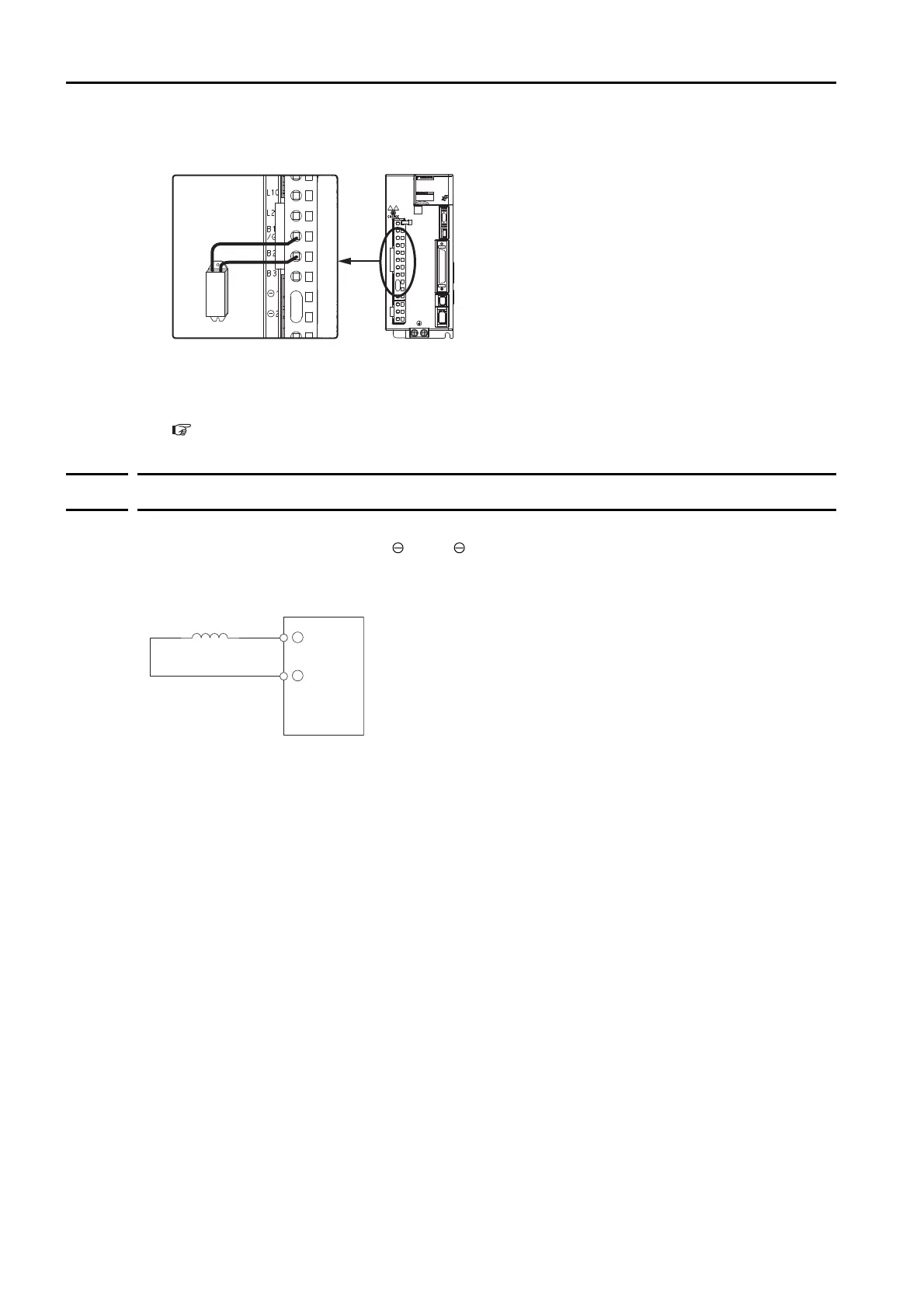

You can connect a DC Reactor to the SERVOPACK when power supply harmonic suppression
is required. Connection terminals 1 and 2 for a DC Reactor are connected when the SER-
VOPACK is shipped. Remove the lead wire and connect a DC Reactor as shown in the follow-
ing diagram.
Enlarged View
S_Analog
1
2
SERVOPACK
-
-
DC Reactor
