Zebra MC3300X User Manual

Accessories
130
Daisy-chaining Ethernet Cradles
Daisy-chain up to ten 5-Slot Ethernet ShareCradle with 4-Slot Battery Chargers to connect several cradles
to an Ethernet network. Use either a straight or crossover cable. Daisy-chaining should not be attempted
when the main Ethernet connection to the first cradle is 10 Mbps as throughput issues will almost certainly
result.
To daisy-chain 5-Slot Ethernet ShareCradle with 4-Slot Battery Chargers:
1. Connect power to each 5-Slot Ethernet ShareCradle with 4-Slot Battery Charger.
2. Connect an Ethernet cable to one of the ports on the switch and the other end to the Primary Port of the
first cradle.
3. Connect an Ethernet cable to the Secondary port of the first cradle.
4. Connect the other end of the Ethernet cable to the Primary port of the next 5-Slot Ethernet ShareCradle
with 4-Slot Battery Charger.

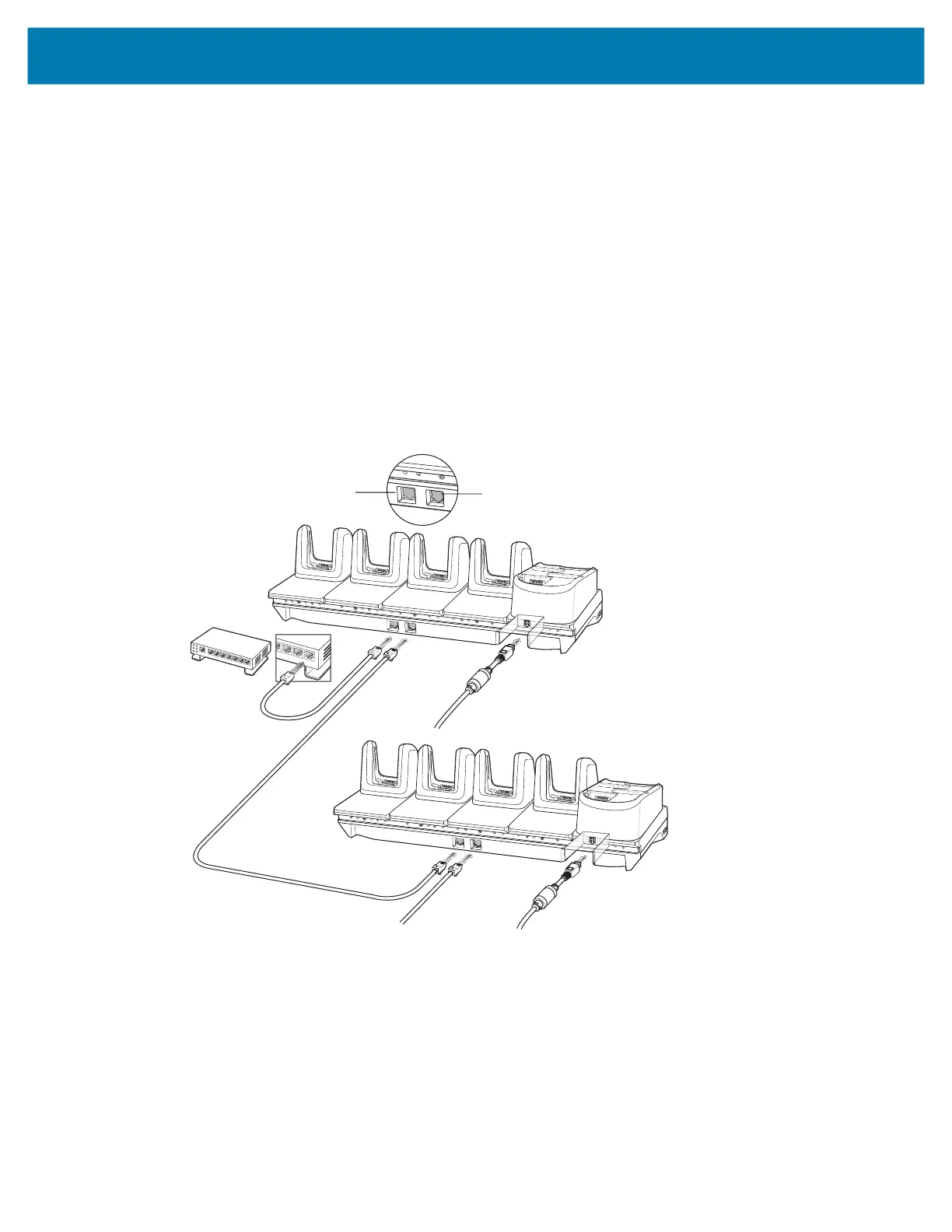

Figure 58 Daisy-chaining 5-Slot Ethernet ShareCradle with 4-Slot Battery Chargers
5. Connect additional cradles as described in step 3 and 4.
Ethernet Settings
The following settings can be configured when using Ethernet communication:
• Proxy Settings
• Static IP.
To Power Supply
To Next Cradle
To Power Supply
To Switch
Secondary Port
Primary Port
mc33-ug-en.book Page 130 Thursday, July 9, 2020 10:34 AM

Zebra MC3300X Specifications

General

Storage	32 GB
Operating Temperature	-4°F to 122°F/-20°C to 50°C
Processor	Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System	Android 11
RAM	4 GB
Display Size	4.0 inches
Display Resolution	480 x 800 pixels
Connectivity	Wi-Fi, Bluetooth
Camera	13 MP rear
Drop Specification	Multiple 6 ft./1.8 m drops to concrete across the operating temperature range
Sealing	IP65
Touch Panel	Capacitive
Scanning	1D/2D barcode scanning
Battery Type	Li-Ion
