MC3300x-G Features
Front View

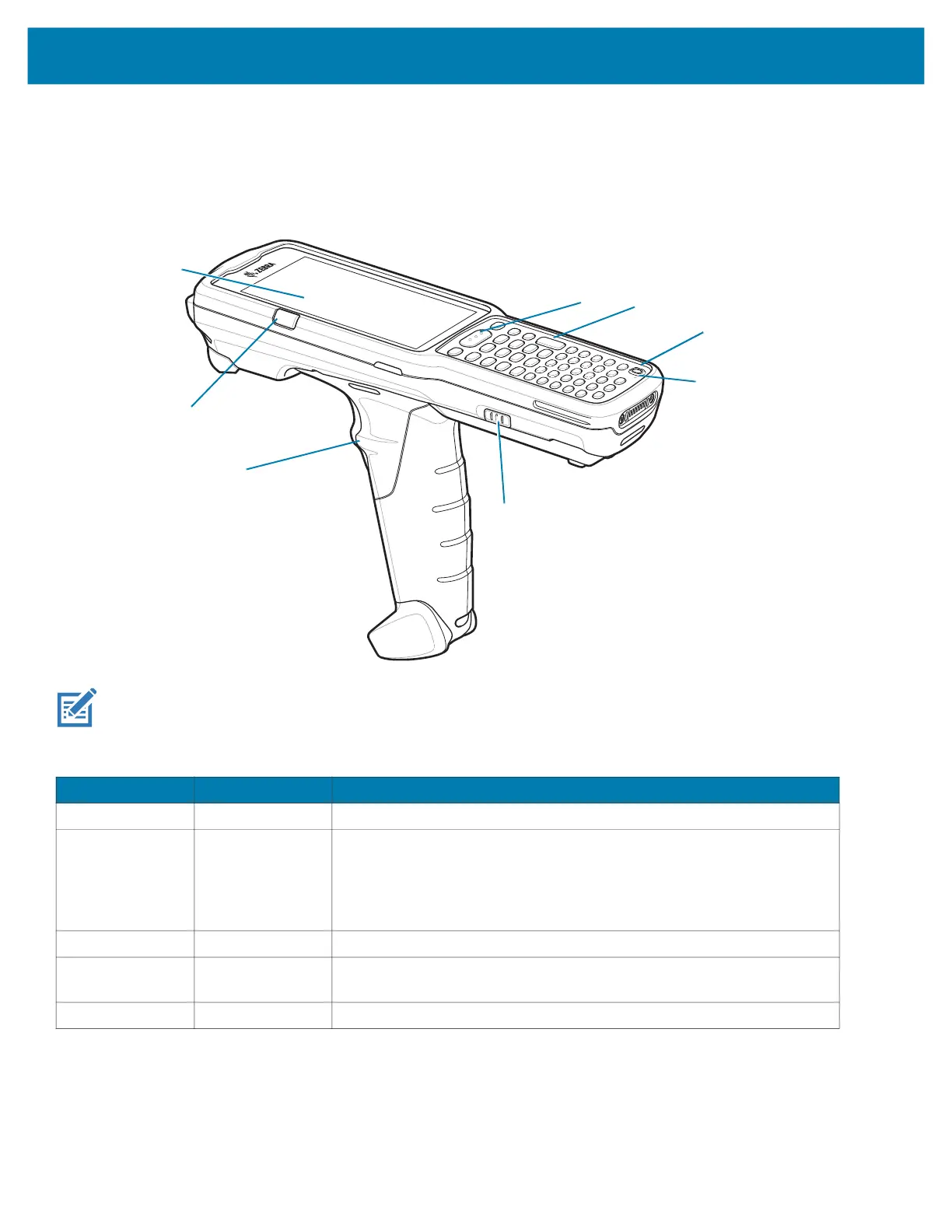

Figure 1 MC3300x-G Front View
1
2
8
7
6
3
5
4
NOTE: The MC3300x-G does not ship with a pre-installed hand strap. However, one can be purchased
separately as a standalone accessory (SG-MC33-HDSTPG-01) if required.
Table 2 MC3300x-G Features - Front View
Number Item Function
1 Display Displays all information needed to operate the device.
2 Charge
/Application
Notification LED
or Scan/Decode
Status
Indicates the battery charge state while charging, an application
notification was received, or the scan/decode status.
3 Trigger Initiates data capture when a scan application is enabled.
4 Battery Release
Latch
Release the battery from the device.
5 Microphone Use for communications in Handset mode.
