Zebra MC3300X - Accessory Specifications

Technical Specifications
192
MC3300x Accessory Technical Specifications
MC3300x Connector Pin-Out

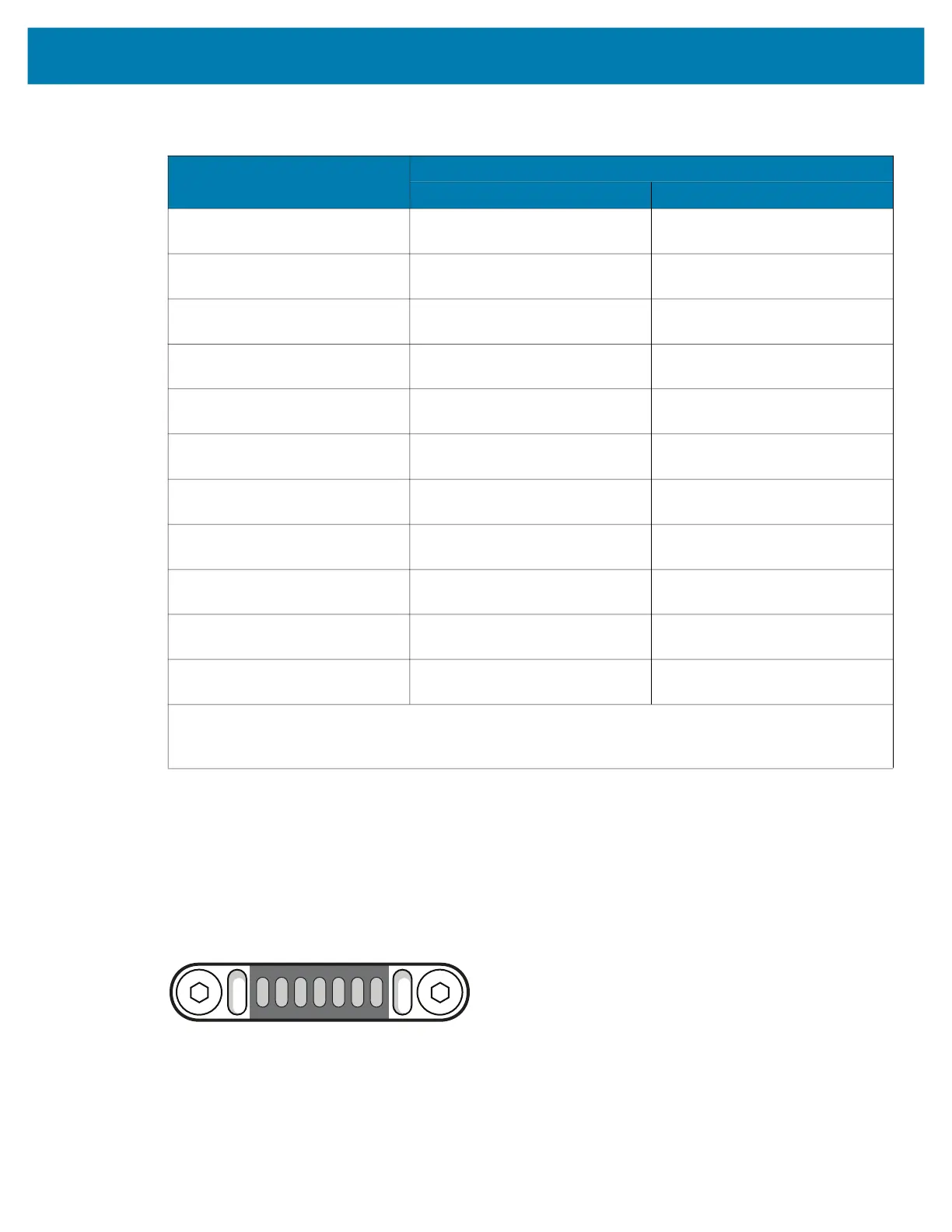

Figure 77 I/O Connector
Table 37 SE4850-ER Decode Distances
Symbol Density/ Barcode
Type
Typical Working Ranges @20 Ft-Cd Minimum
Near Far
10 mil Code 39 3.0 in.*
7.6 cm*
85.0 in.
215.9 cm
13 100% UPC 3.5 in.
8.9 cm
90.0 in.
228.6 cm
15 mil Code 128 6.0 in.*
15.2 cm*
100.0 in.
254.0 cm
20 mil Code 39 4.0 in.*
10.2 cm*
172.0 in.
436.9 cm
40 mil Code 39 6.0 in.*
15.2 cm*
340.0 in.**
863.6 cm**
55 mil Code 39 7.0 in.*
17.8* cm *
430.0 in.**
1092.2 cm**
100 mil Code 39 (paper) 20.0 in.*
50.8 cm*
700.0 in.**
1778.0 cm**
100 mil Code 39 (reflective) 30.0 in.*
76.2 cm*
700.0 in.
1778.0 cm
DataMatrix 10 5.0 in.
12.7 cm
45.0 in.
114.3 cm
DataMatrix 55 5.0 in.
12.7 cm
250.0 in.
635.0 cm
15 mil Code 128 (4 in. wide) 8.0 in.*
20.3 cm*
100.0 in.
254.0 cm
* Limited by width of barcode in field of view.
** Range is reduced under low ambient light level.
P1
P7
