MC3300x-S Features
Front View

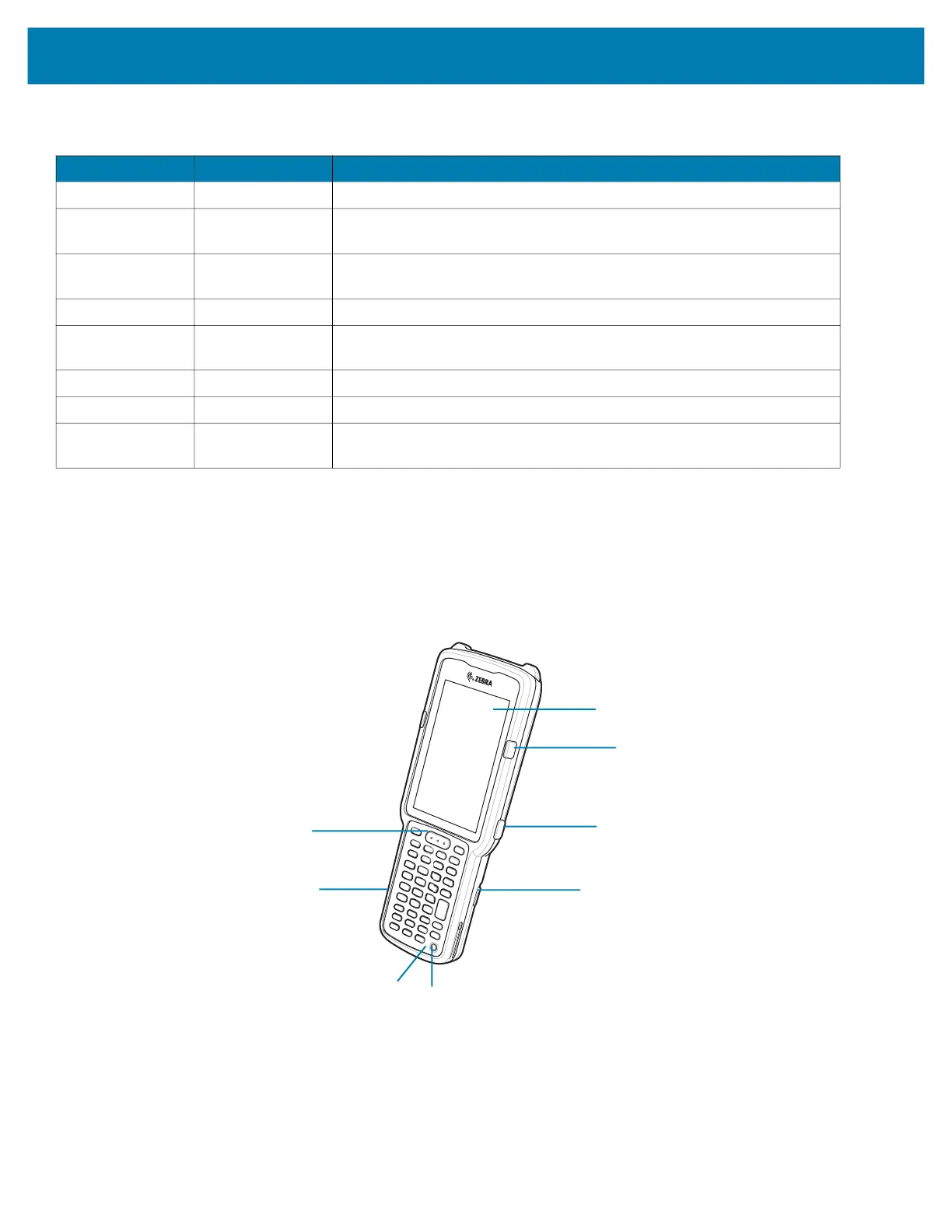

Figure 6 MC3300x-S Front View
Table 5 MC3300x-R Features - Back View
Number Item Function
10 Battery Provides power for operating the device.
11 Battery Release
Latch
Release the battery from the device.
12 Side Key Scan
Button
Initiates data capture when a scan application is enabled.
13 Speaker Provides audio output for video and music playback.
14 Scanner Exit
Window
Provides data capture using the scanner.
15 NFC Antenna Provides communication with other NFC-enabled devices.
16 Camera/Flash Provides image capture capability with LED illumination.
17 Hand Strap Use for securely holding the device. Comes pre-installed on every
MC3300x-S & MC3300x-R device.
1
2
3
4
5
6
7
8
