Data Capture
83
Scanning with the DS3608 USB Scanner or DS3678 Bluetooth Scanner
To scan with the DS3608 or DS3678:
1. Pair the scanner with the device. For more information, see Connecting a USB Scanner for the DS3608
or Pairing Bluetooth Scanners for the DS3678.
2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).
3. Point the scanner at a barcode.

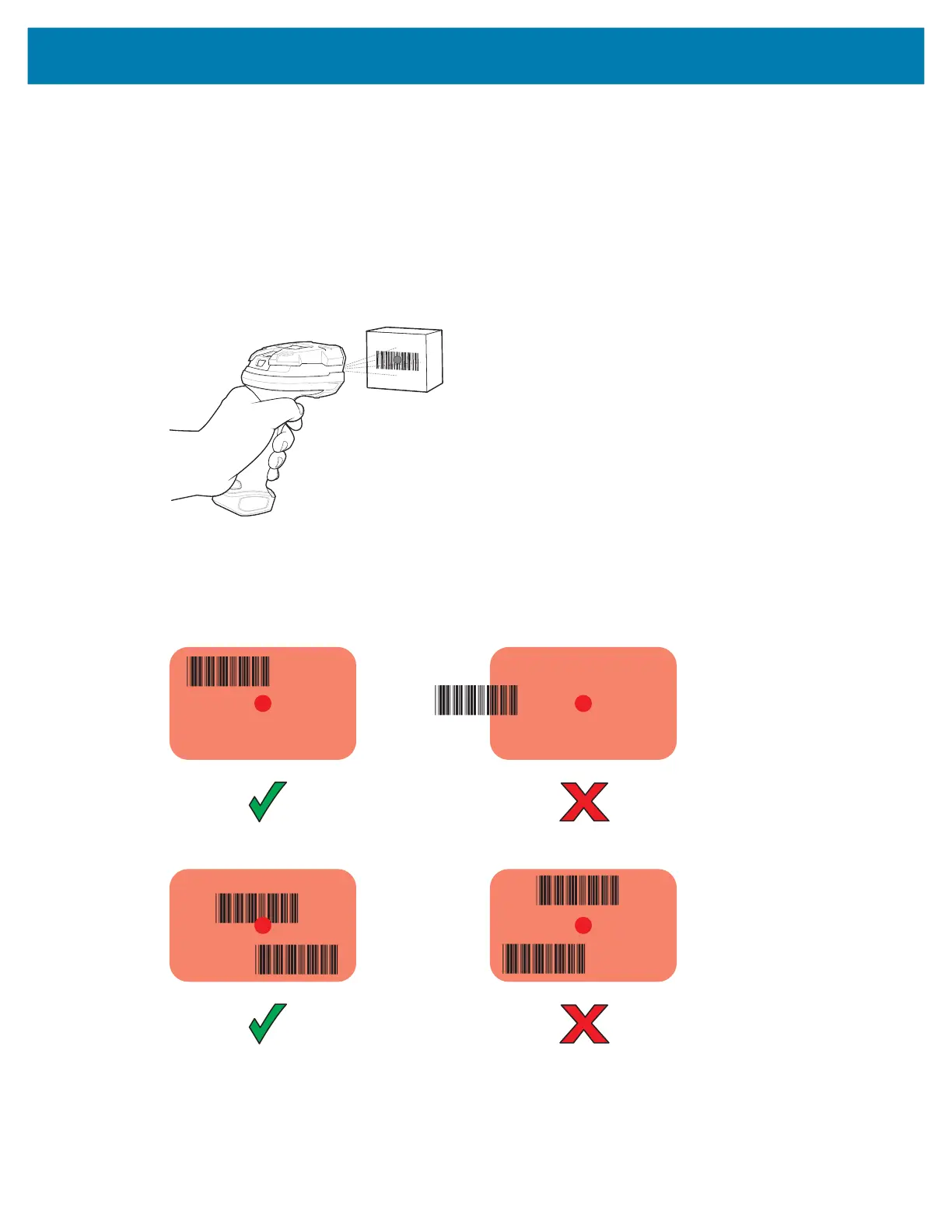

Figure 30 Barcode Scanning (DS3678 shown)
4. Press and hold the trigger.
Ensure the barcode is within the area formed by the aiming pattern. The aiming dot increases visibility
in bright lighting conditions.
Figure 31 DS3608/DS3678 Aiming Pattern
Figure 32 DS3608/DS3678 Pick List Mode with Multiple Barcodes in Aiming Pattern
5. The captured data appears in the text field.
