Setup

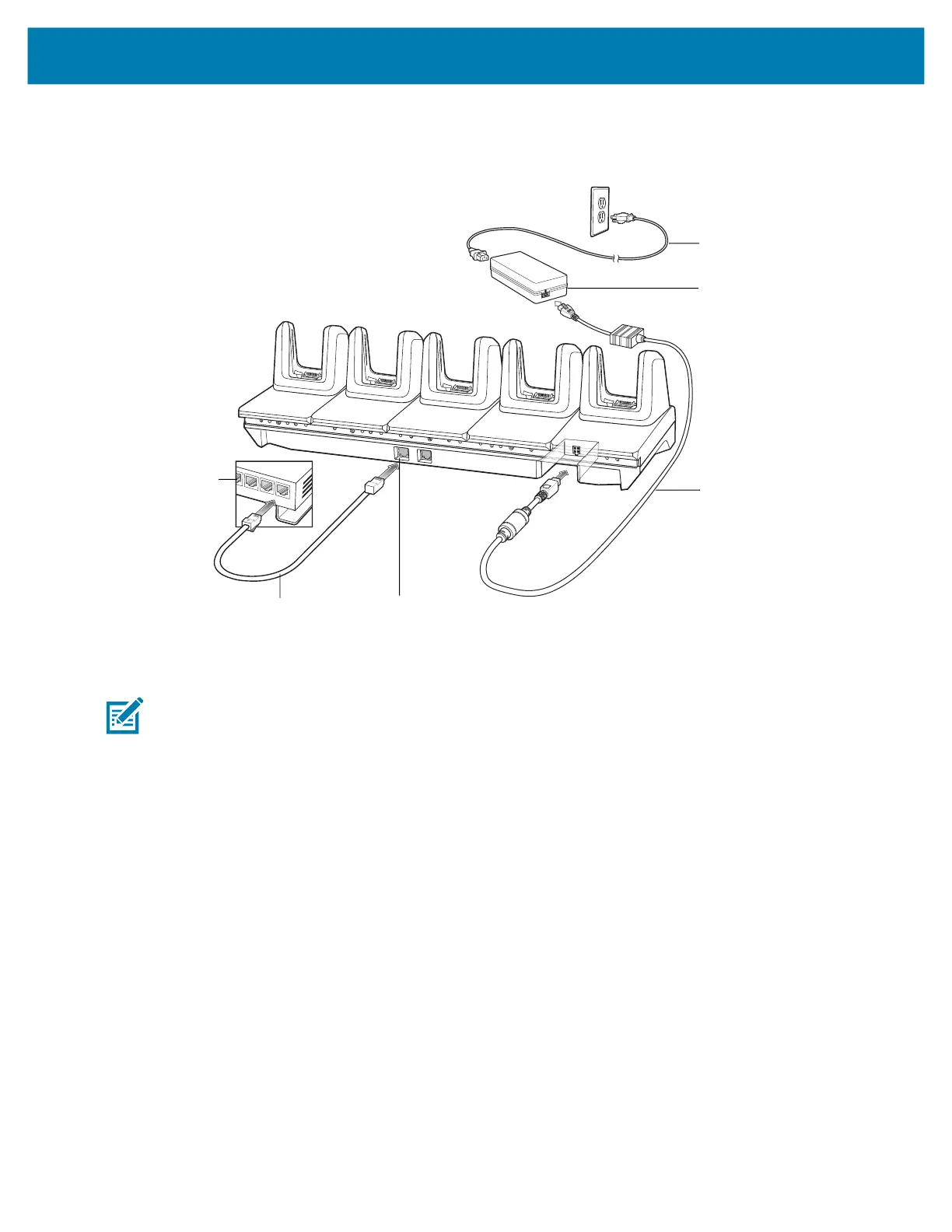

Figure 51 5-Slot Ethernet ShareCradle Setup
Charging the MC3300x Battery
NOTE: To function properly, remove the entire rubber boot from the device before placing the device in a
charging cradle.
To function properly, ensure that the MC3300x hand strap, if attached, does not interfere with the
charging contacts when the MC3300x is inserted into a charging cradle.
1.
Ensure that the cradle is connected to power.
2. Slide the mobile computer into the slot in the cradle. The mobile computer amber Charge LED
Indicator, indicates the mobile computer battery charging status.
3. Gently press down on the device to ensure proper contact.
4. When charging is complete, remove the mobile computer from the cradle slot.
Battery Charging in the 5-Slot Ethernet ShareCradle
The MC3300x’s Charge LED indicates the status of the battery charging in the MC3300x.
Daisy-chaining Ethernet ShareCradles
Daisy-chain up to ten 5-Slot Ethernet ShareCradles to connect several cradles to an Ethernet network.
Use either a straight or crossover cable. Daisy-chaining should not be attempted when the main Ethernet
connection to the first cradle is 10 Mbps as throughput issues will almost certainly result.
To daisy-chain 5-Slot Ethernet ShareCradles:
1. Connect power to each 5-Slot Ethernet ShareCradle.
AC Line Cord
DC Line Cord
Power Supply
Primary PortEthernet Cable
Router
