Keypads
206

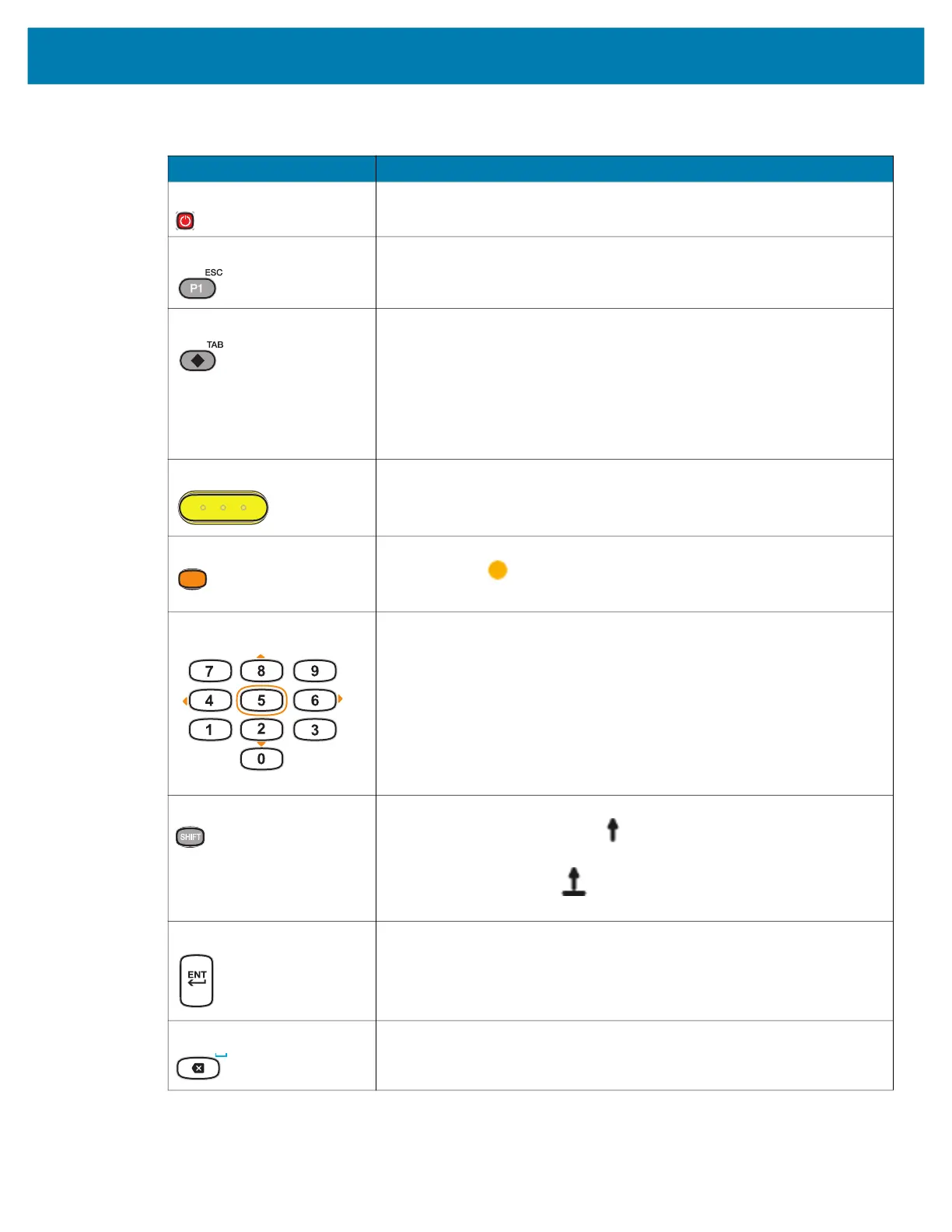

Table 51 47-Key Keypad Descriptions
Key Description
Power (red) Powers the mobile computer screen on and off (resume and suspend).
Program 1/ESC User programmable; defaults to Back button. With the Shift key activated,
P1 produces the ESC function.
Diamond/TAB Provides a 3x3 matrix on the screen with nine additional symbols. With a
single tap you can select via touch input or the keyboard, 1-9 numerical
keys. Double tapping the Diamond key locks the 3x3 grid, and you can
select multiple keys. Pressing the Diamond key a third time closes the
3x3 matrix.
With the Shift key activated, Diamond produces the TAB function.
Scan (yellow) Used in scanning applications, press to scan a barcode. This key has the
same function as activating the side mounted scan buttons on the
MC3300x-R or MC3300x-S.
Orange Press the orange key to access the alternate navigation and selection
functions. The icon appears on the Status bar. Press and release the
orange key again to return to the default keypad functions.
Numeric/Scroll/Select Numeric, scroll, select keys. Numeric by default. With the orange key
activated, the 2, 4, 6, and 8 keys produce scroll functions and the 5 key
produces a select function.
Shift Press and release the SHIFT key to momentarily activate the keypad
alternate SHIFT functions. The icon appears on the Status bar.
Press and release the SHIFT key a second time to lock the keypad into
the Shift-Lock mode. The icon appears on the Status bar. Press and
release the SHIFT key again to return to the default keypad functions.
Enter Executes a selected item or function.
Backspace/Space Backspace function by default. Produces the Space function when the
blue function key is activated.
