Axio Imager 2 OPERATION ZEISS
Operating the motorized microscope via the touchscreen of the TFT display
01/2016 430000-7544-001 119
Eyepiece
Bino
-
Shutter
Top Port
− Tube with Bino Shutter (eyepiece shutter) installed
− Mirror for deflection to eyepieces is unknown.
− Light path for Top Port is unknown.
− No motorized camera path deflection installed at Side Port.
(2) Illumination tab
The lamp voltage in transmitted and reflected light
and the filter wheels can be monitored here. These
functions are available only if motorized filter
wheels / attenuators are used.
When the internal power supply is configured both
in reflected light and transmitted light, only one
bar is displayed, which changes accordingly.

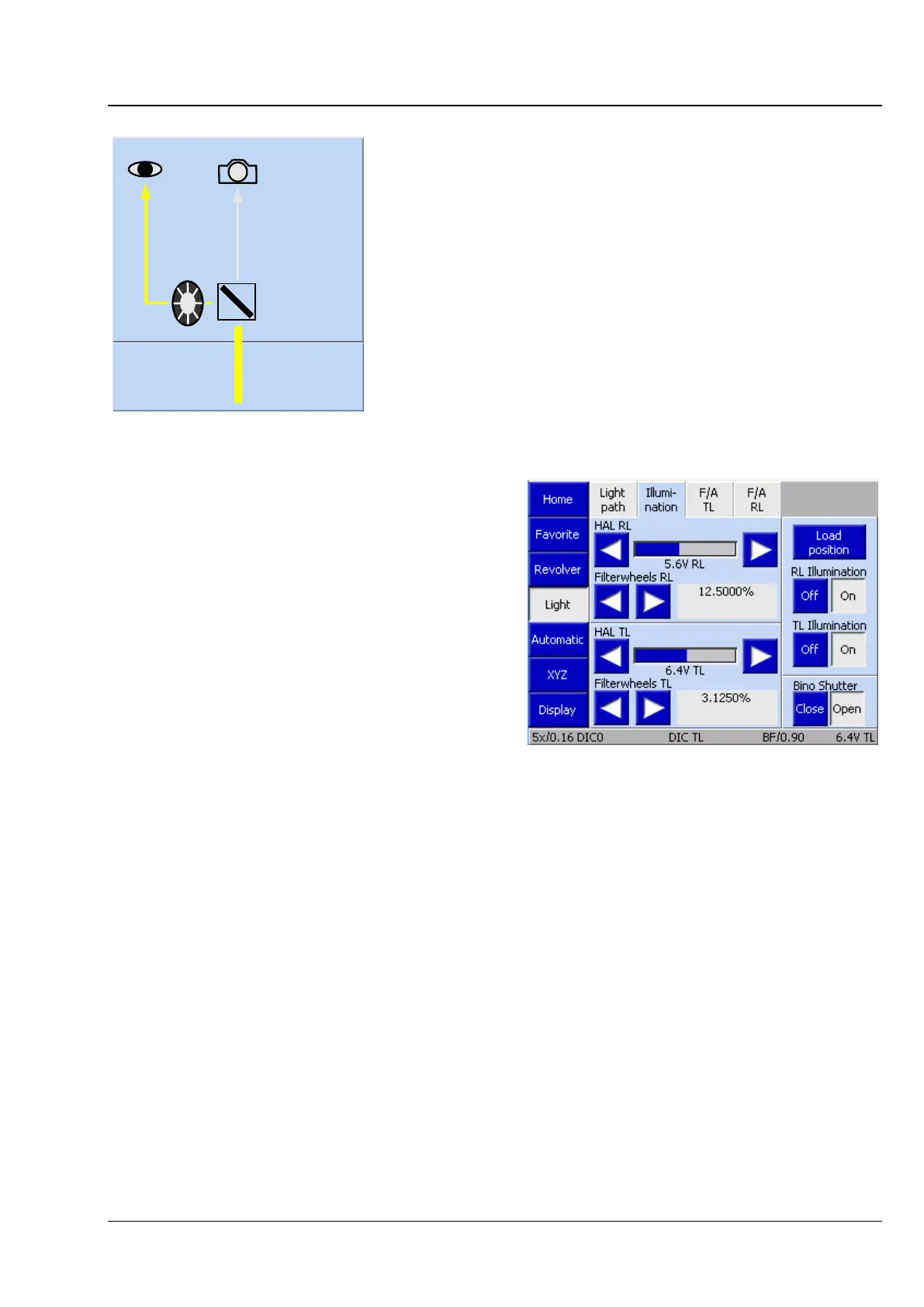

Fig. 115 Microscope -> Light -> Illumination
