Axio Imager 2 OPERATION ZEISS
Automatic component recognition and user-defined component equipment
01/2016 430000-7544-001 159
4.11.2 Configuration of user-defined filter wheels

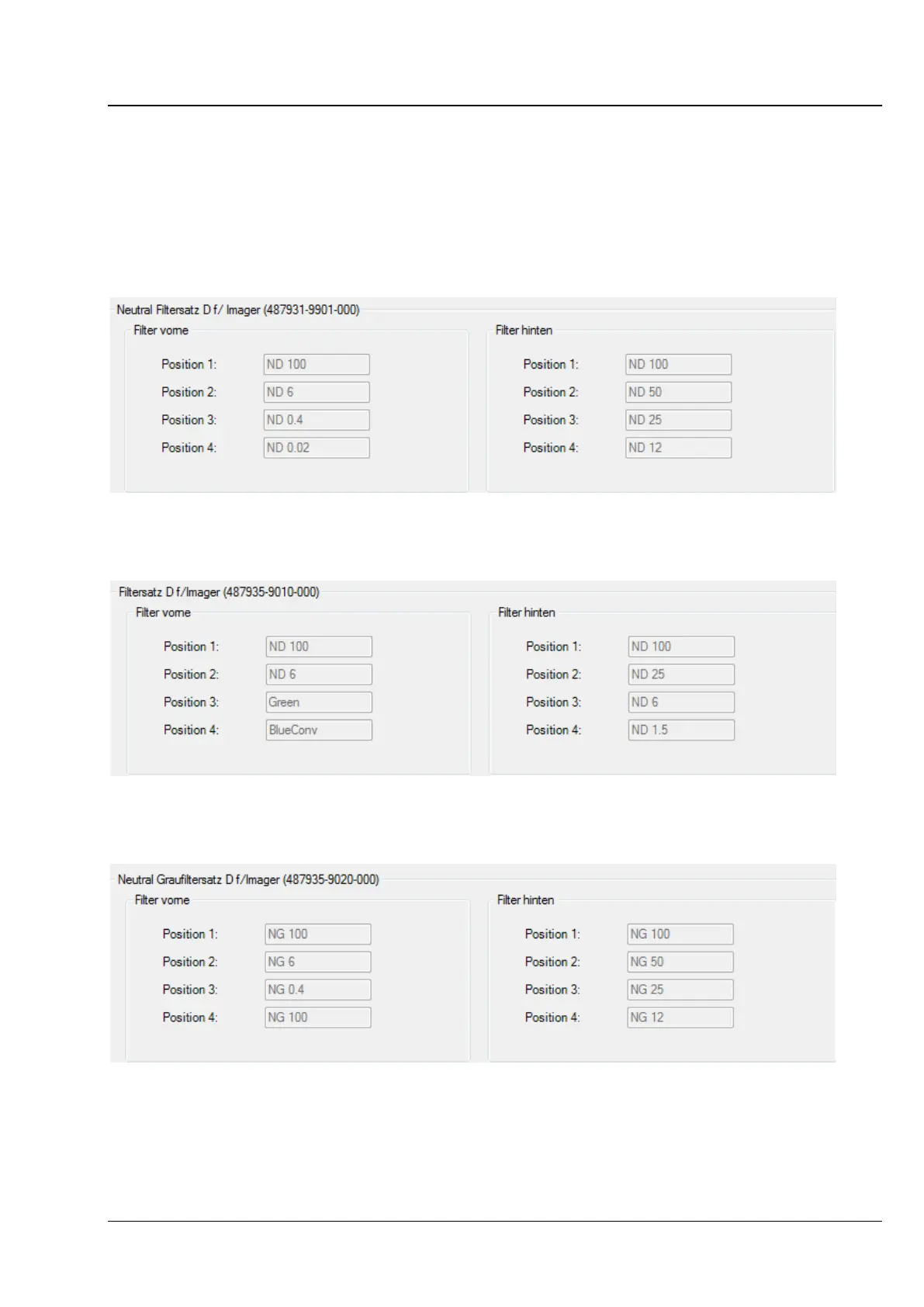

ZEISS offers several pre-defined filter sets for the discreetly populated double filter wheels which can be
assigned to the filter wheels using the MTB 2011 microscope configuration software. Currently, 3 pre-
defined filter sets can be ordered from ZEISS:
a. 487931-9901-000 – This is the standard grey filter set for all brightfield applications
b. 487935-9010-000 - This gray filter set additionally contains a blue color filter for color compensation
when working with halogen illumination, as well as a green filter for phase contrast applications.
c. 487935-9020-000 – This gray filter set consists of colored neutral gray lenses. In contrast to the first
two, this filter set can be used for the attenuation of HBO light.
