Axio Imager 2 FIRST-TIME SET-UP ZEISS
Electrical connections on the rear of the microscope
01/2016 430000-7544-001 69
3.34 Electrical connections on the rear
of the microscope
3.34.1 Coded stand
Key to Fig. 58:
1 Ports for reflected-light halogen illuminator
2 Toggle switch for reflected / transmitted light (HAL)
3 Ports for transmitted-light halogen illuminator
4 Power connector
5 Sync connector for camera synchronization
6 LM set button for light manager function
7 RS 232 port
3.34.2 Motorized stand
Key to Fig. 59:
1 CAN port
2 USB port
3 Ethernet port
4 RS232 port
5 CAN port
6 CAN port
7 Port for linear sensor for focus adjustment
8 Ports for reflected-light halogen illuminator (RL)
9 Ports for transmitted-light halogen illuminator
10 Port for power supply VP232-2
11 RS232 port (intended for later applications)
12 Sync port for camera synchronization
13 LM set button for light manager function

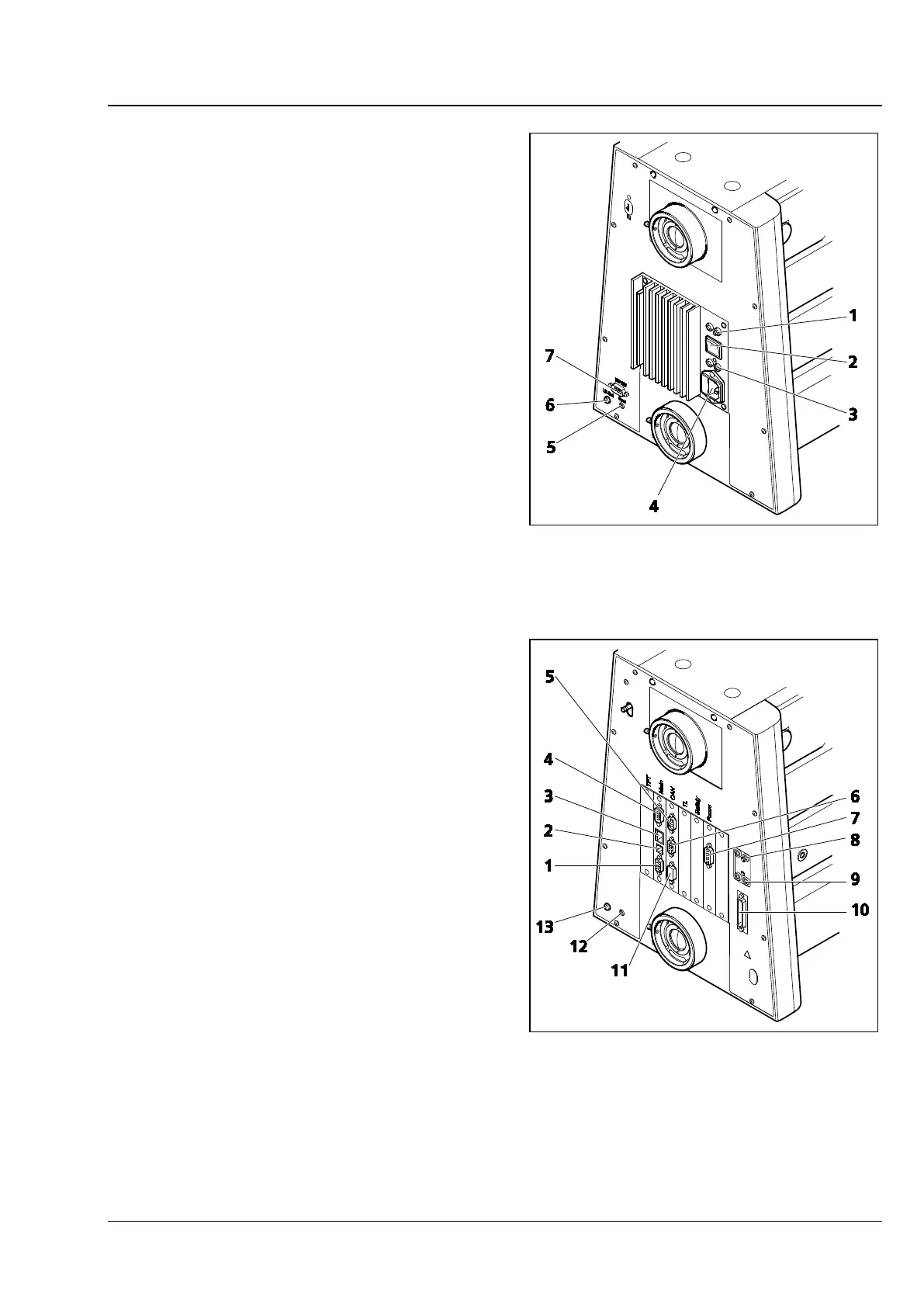

Fig. 58 Axio Imager 2, coded (rear side)
Fig. 59 Axio Imager, motorized (rear)
