Axio Imager 2 INTRODUCTION ZEISS
Overall view of Axio Imager 2 - motorized
01/2016 430000-7544-001 15

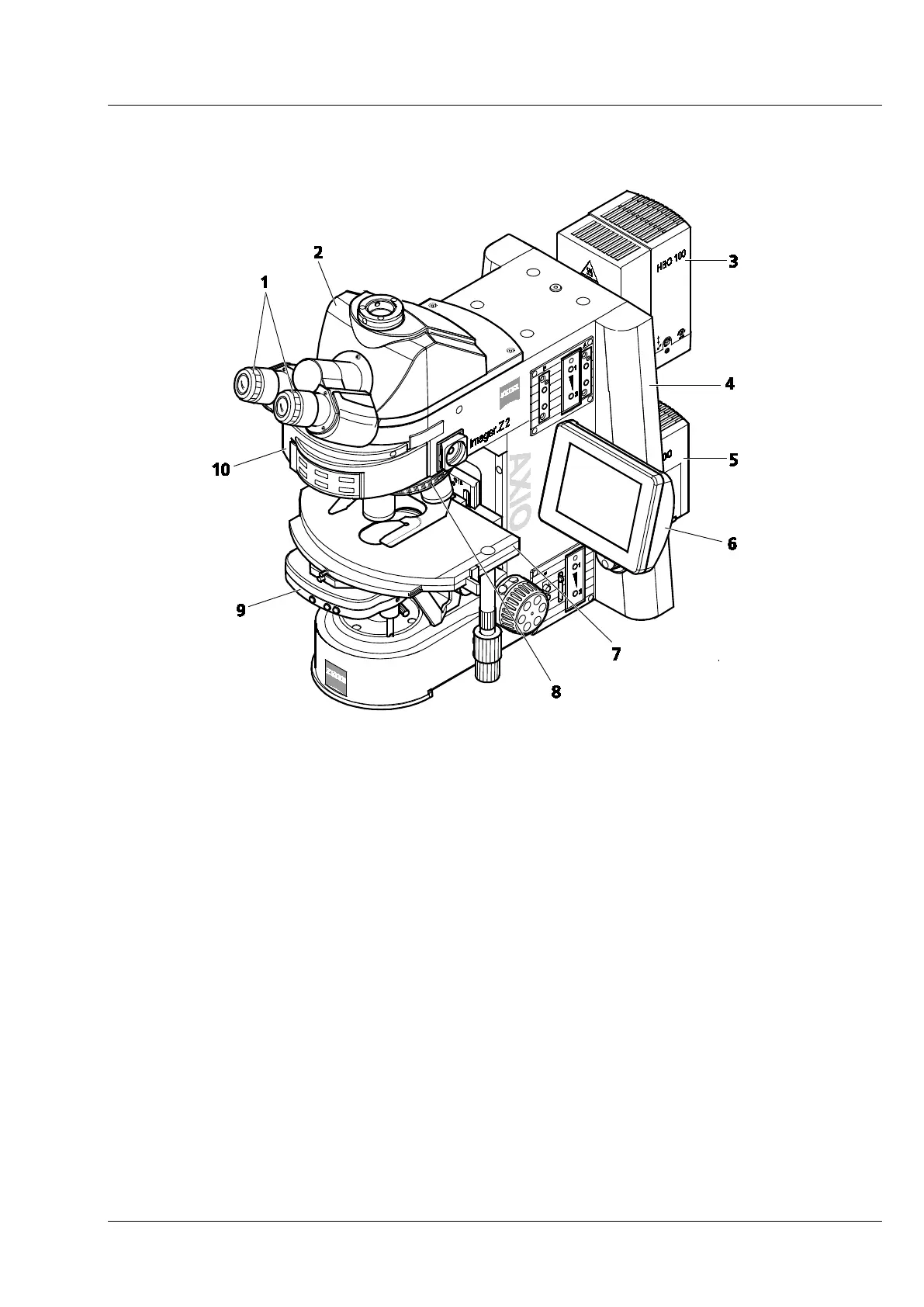

1.6 Overall view of Axio Imager 2 - motorized
1 Eyepieces
2 Binocular phototube
3 Reflected-light illuminator (HBO 100)
4 Microscope stand, motorized
5 Transmitted-light illuminator (HAL 100)
6 TFT display
7 Mechanical stage
8 Nosepiece
9 Condenser
10 Reflector turret
Fig. 7 Overall view of Axio Imager 2 - motorized
