ZEISS INSTRUMENT DESCRIPTION Axio Imager 2
Technical data
30 430000-7544-001 01/2016
Symbol Designation, technical data Cat. No.

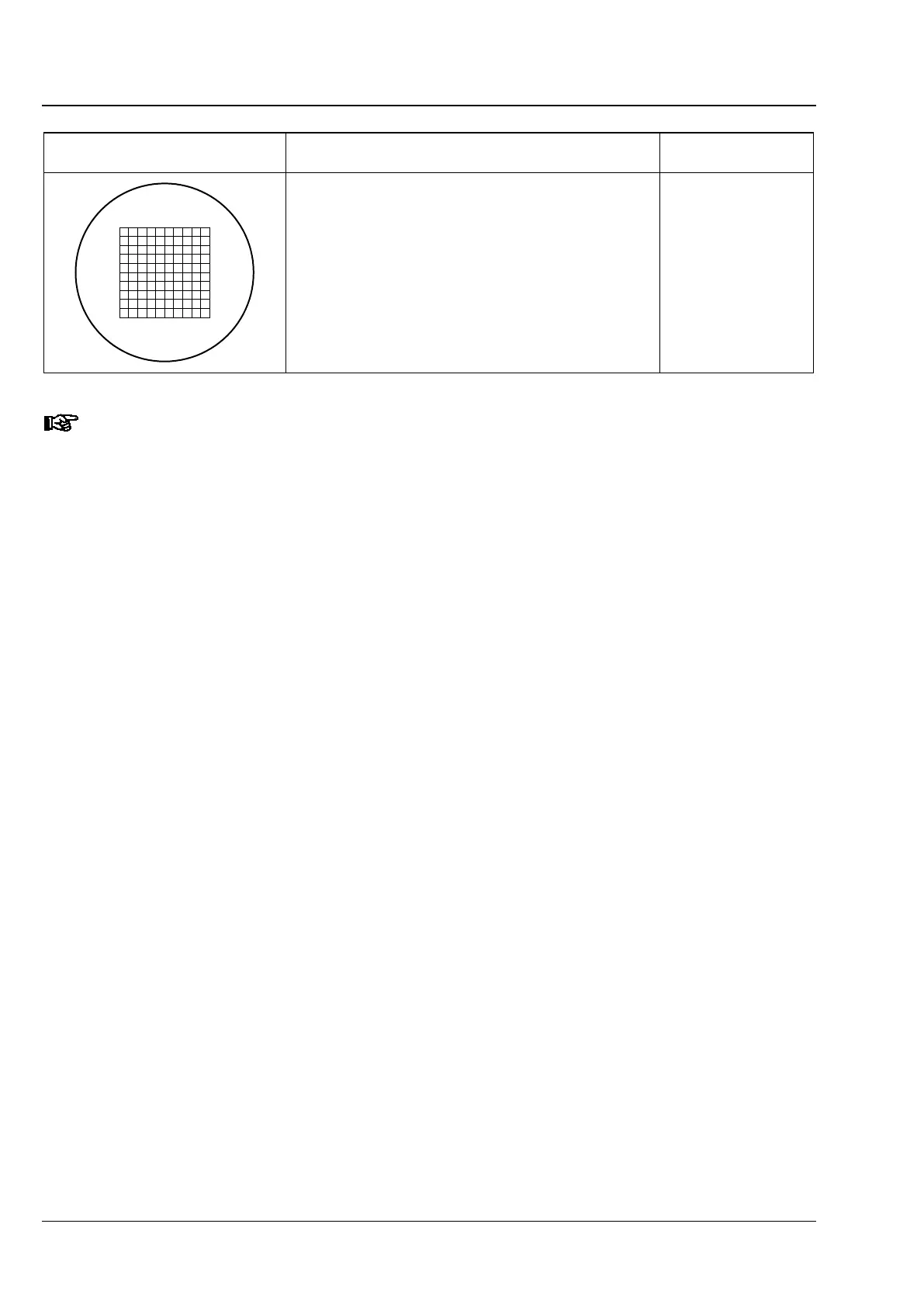

Net micrometer 12.5x12.5/5;10 / d = 26 mm
Area 12.5 x 12.5 mm, divided into 10 x 10 fields
474068-0000-000
If eyepiece
reticles are used, the binocular tube or the must be equipped with two focusing
eyepieces ("foc."). The eyepiece reticle should be mounted into one of these.
2.8 Technical data
Dimensions (width x depth x height)
Axio Imager stand, manual with HBO 100 ...................................... approx. 300 mm x 721 mm x 505 mm
Axio Imager stand, motorized with HBO 100 and TFT display .......... approx. 390 mm x 721 mm x 505 mm
Weight
Axio Imager 2, coded / motorized (dependent on equipment) ................................ approx. 18 kg to 40 kg
Ambient conditions
Transport (in packaging):
Permissible ambient temperature ................................................................................... -40 °C to +70 °C
Storage:
Permissible ambient temperature .................................................................................... -40 °C to +40°C
Permissible relative humidity (no condensation) .......................................................... max. 75% at 35 °C
Operation:
Permissible ambient temperature ................................................................................... -40 °C to +40 °C
Permissible relative humidity ...................................................................................... max. 75% at 35 °C
Atmospheric pressure .............................................................................................. 800 hPa to 1060 hPa
Altitude .............................................................................................................................. max. 2000 m
Pollution degree .................................................................................................................................... 2
