Axio Imager 2 INTRODUCTION ZEISS
Warning labels
01/2016 430000-7544-001 11

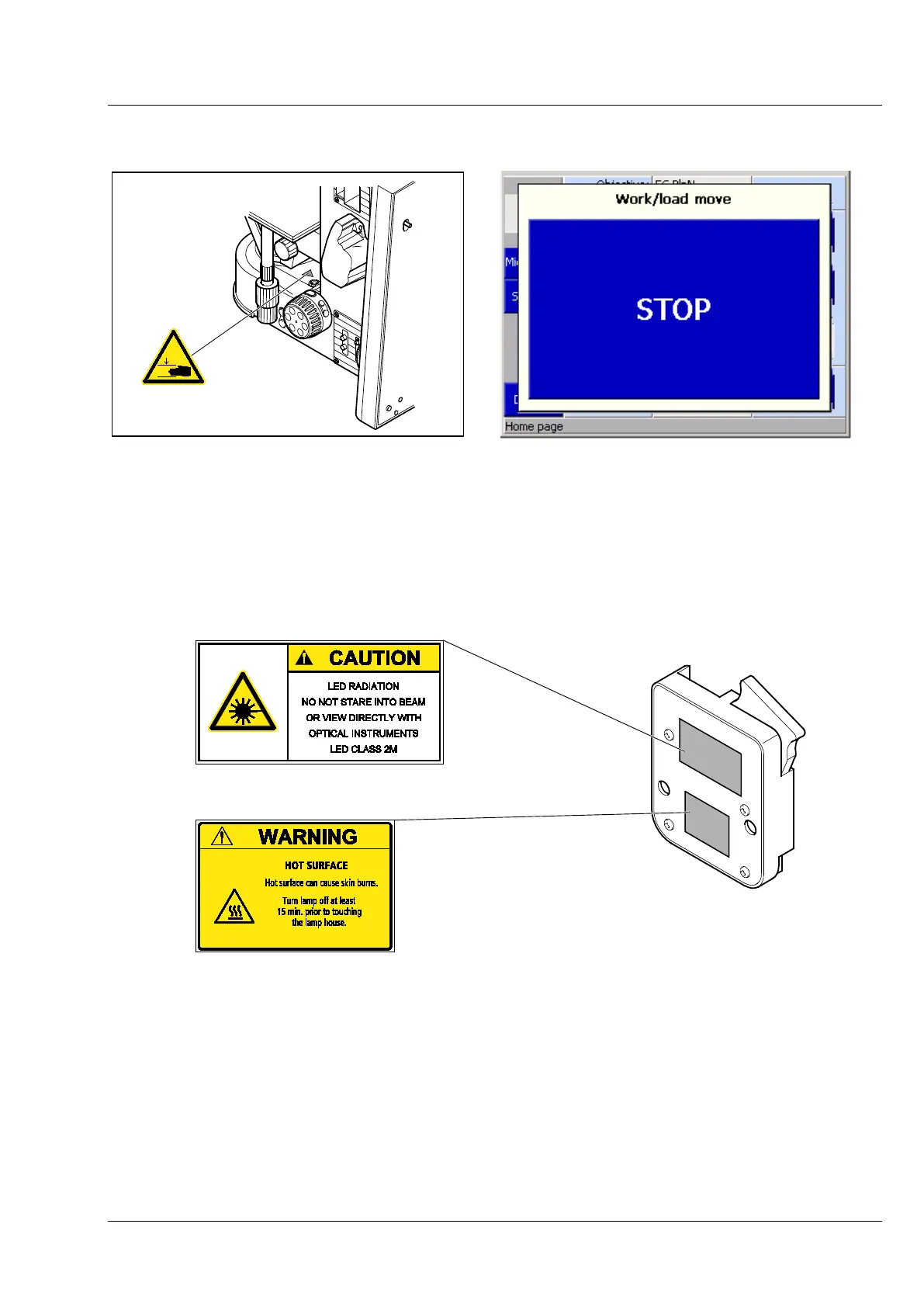

1.2 Warning labels
Fig. 1 "Crushing Hazard" label warning on
the base of motorized stands
Fig. 2 STOP button
The STOP button on the TFT display switches off the movement of the focusing drive instantaneously to
prevent a collision with the stage or the specimen placed on it.
Actuation of the STOP button halts the movement of the focusing drive immediately.
Fig. 3 Warning labels on the underside of the LED illuminator
