ZEISS INTRODUCTION Axio Imager 2
Overall view of Axio Imager 2 - coded
14 430000-7544-001 01/2016
1.5 Overall view of Axio Imager 2 - coded
1 Eyepieces
2 Binocular tube
3 Reflected-light illuminator (HBO 100)
4 Microscope stand, manual
5 Transmitted-light illuminator (HAL 100)
6 Mechanical stage
7 Nosepiece
8 Condenser
9 Reflector turret

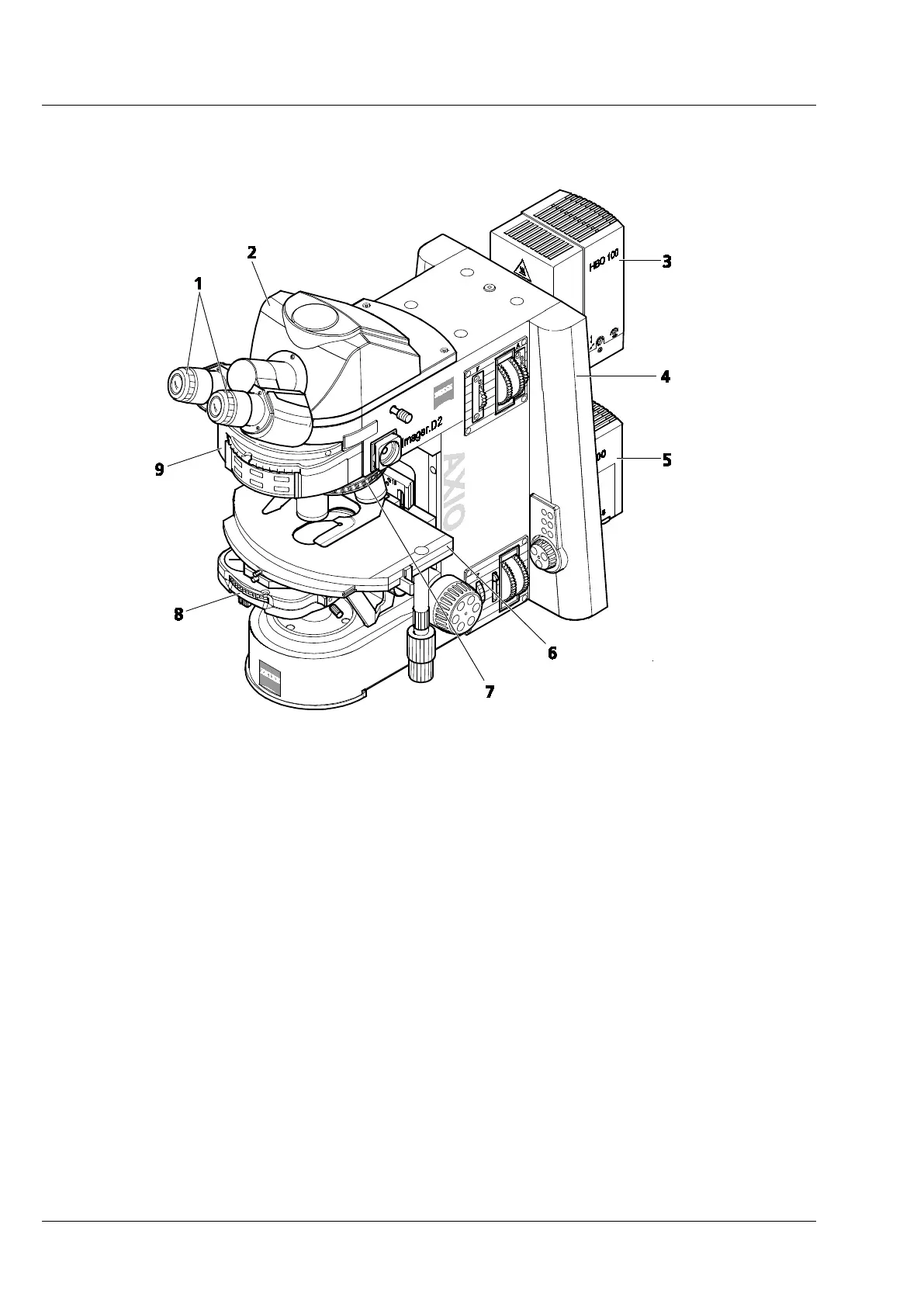

Fig. 6 Overall view of Axio Imager 2 - coded
