ZEISS OPERATION Axio Imager 2
Operating the motorized microscope via the touchscreen of the TFT display
140 430000-7544-001 01/2016
Motorized DIC turret
Modulator turret allocation for transmitted-light
DIC. This is where the user selects the appropriate
DIC prisms for turret positions 2, 3 and 4.
Important: The contrast manager can only adjust
the DIC contrast correctly if the analyzer module
specified for the motorized DIC turret has been
selected in the reflector turret.
Motorized C-
DIC modulator turret for
material:
No settings are to be made here, as
the positions for C-
DIC, TIC and
brightfield are always fixed.
Field of view of eyepieces
The user chooses the eyepieces to be employed in
the Field of view eyepiece selection pop-up
window.
This is an important setting, as the correct scaling
of the aperture of the motorized stop slider
depends on this information.
Manual condenser
If you use a manual condenser but a motorized
luminous-field diaphragm, you should enter the
condenser aperture here. This is necessary, as the
light manager automatically adapts the luminous-
field diaphragm to the field of view of the
eyepieces, and the various condensers have
different magnification factors.

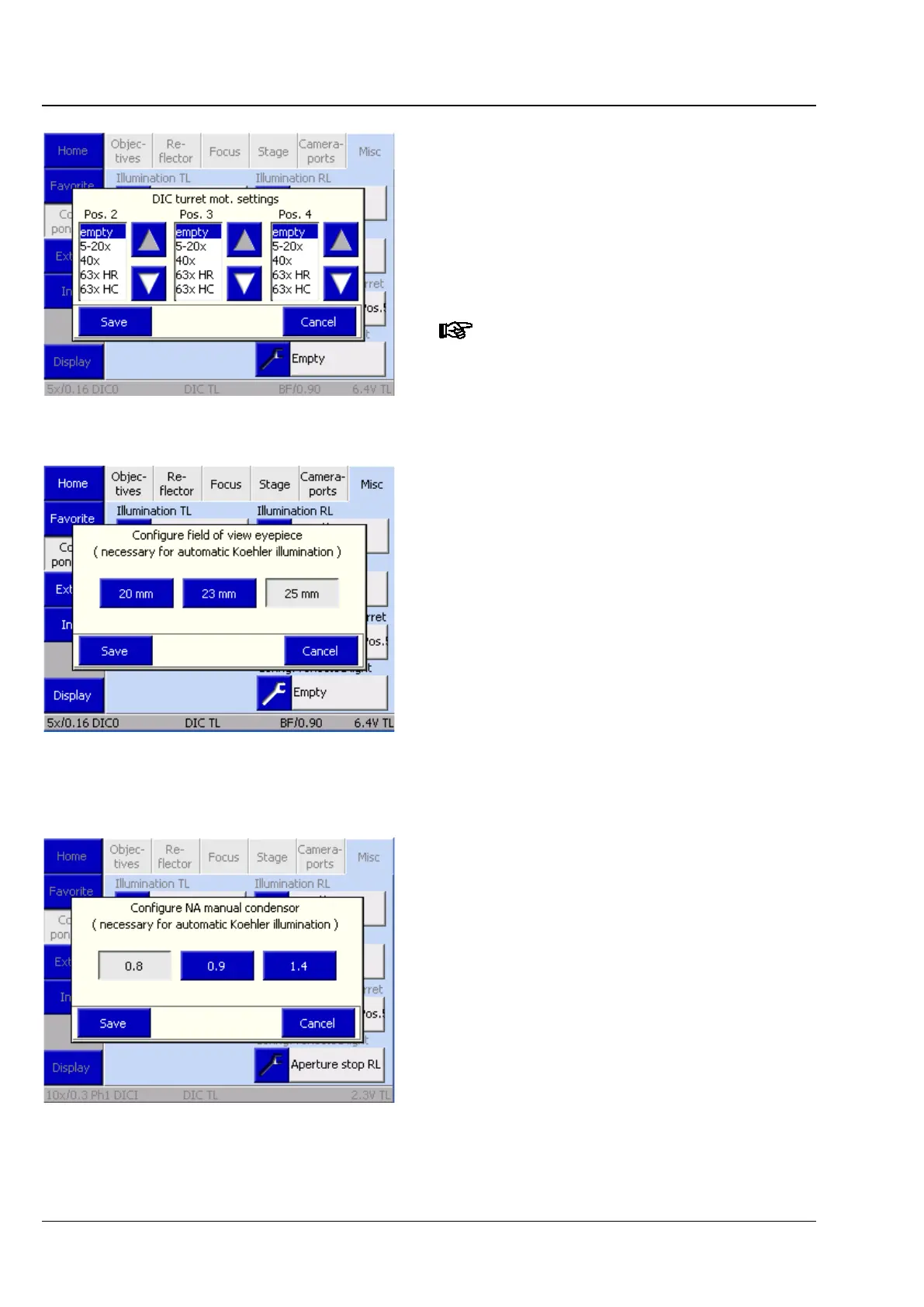

Fig.156 DIC turret mot.
Fig. 157 Field of view of eyepieces
Fig.158 Mounted condenser
