Zoom R24 User Manual

Input and output of insert and send-return effects
79

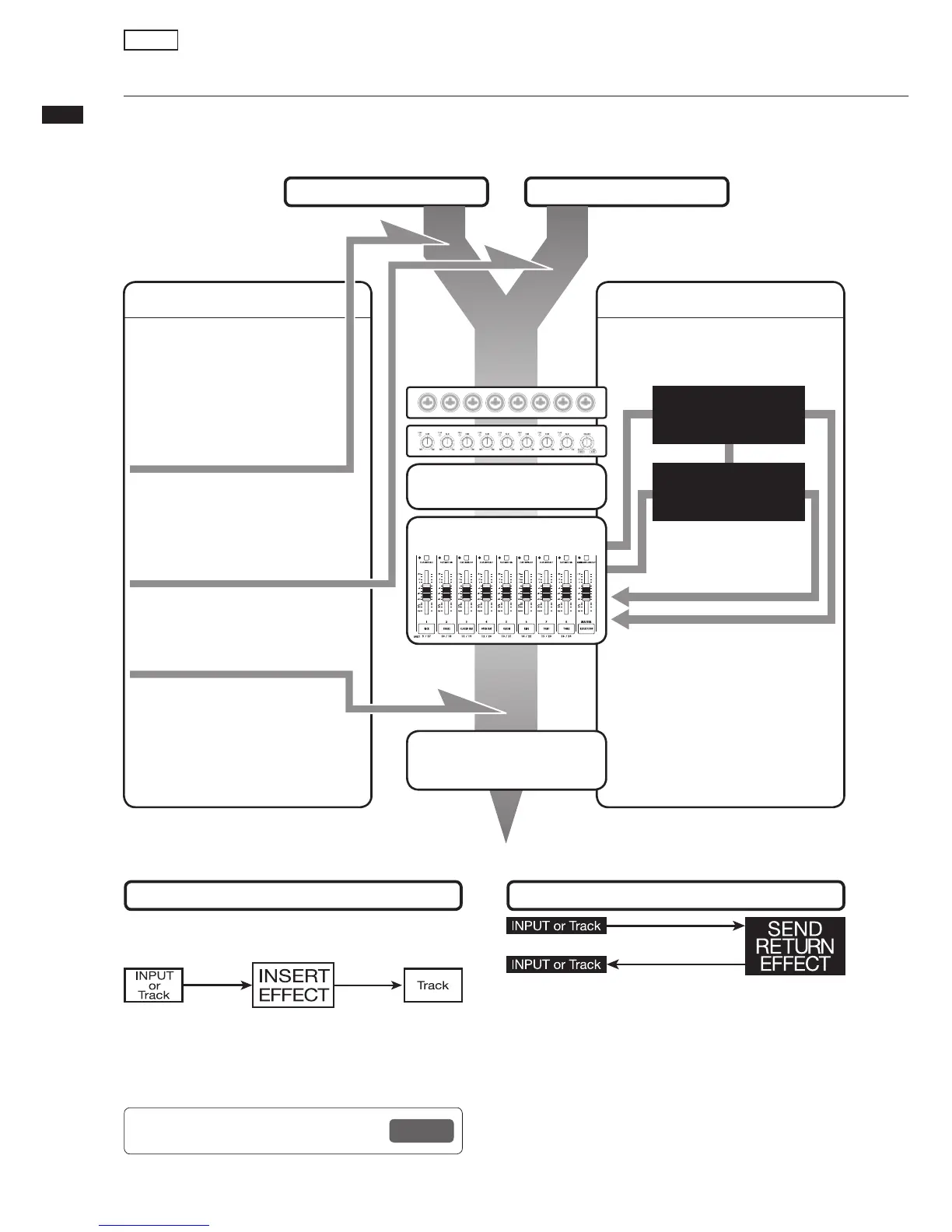

Input and output of insert and send-return effects
/iÊ,Ó{¿ÃÊÌÜÊÌÞ«iÃÊvÊLÕÌÊivviVÌÃpÃiÀÌÊivviVÌÃÊ>`ÊÃi`ÀiÌÕÀÊivviVÌÃpV>ÊLiÊÕÃi`Ê
at the same time.
Tracks
Inputs
Effect insertion points
Insert effects Send-return effect
Master
).054 ^ 42!#+ ^
These effects are applied to
specified channels.
These effects are internally connected
in the mixer's send-return bus.
Send level
(Amount of signal sent to effect)
Apply effects to selected input signals
when recording them to tracks.
Apply effects to the playback sound of
any audio tracks in the track mixer.
Mix of original sound of sent
track with the return signal.
Process the final stereo mix just
before the
MASTER
fader (and
record it to the master track).
Recorder
REVERB
Track mixer
Mix down
Master track recording
CHORUS/DELAY
Send-return effect signal flow

,iv\ÊvviVÌÊÃiÀÌÊ«Ì
P81
Insert effect signal flow
I
nsert the effect on a mono input and output in mono.
Effects

Zoom R24 Specifications

General

Sample rate	96 kHz
Channels quantity	10 channels
Digital sound processing	24 bit
USB 2.0 ports quantity	1
DJ mixer	-
Product color	Silver

Weight and Dimensions

Depth	237.1 mm
Width	376 mm
Height	52.2 mm
Weight	1300 g
