Zoom R24 User Manual

Patch editing (insert and send-return effects)
83
Patch editing (insert and send-return effects)

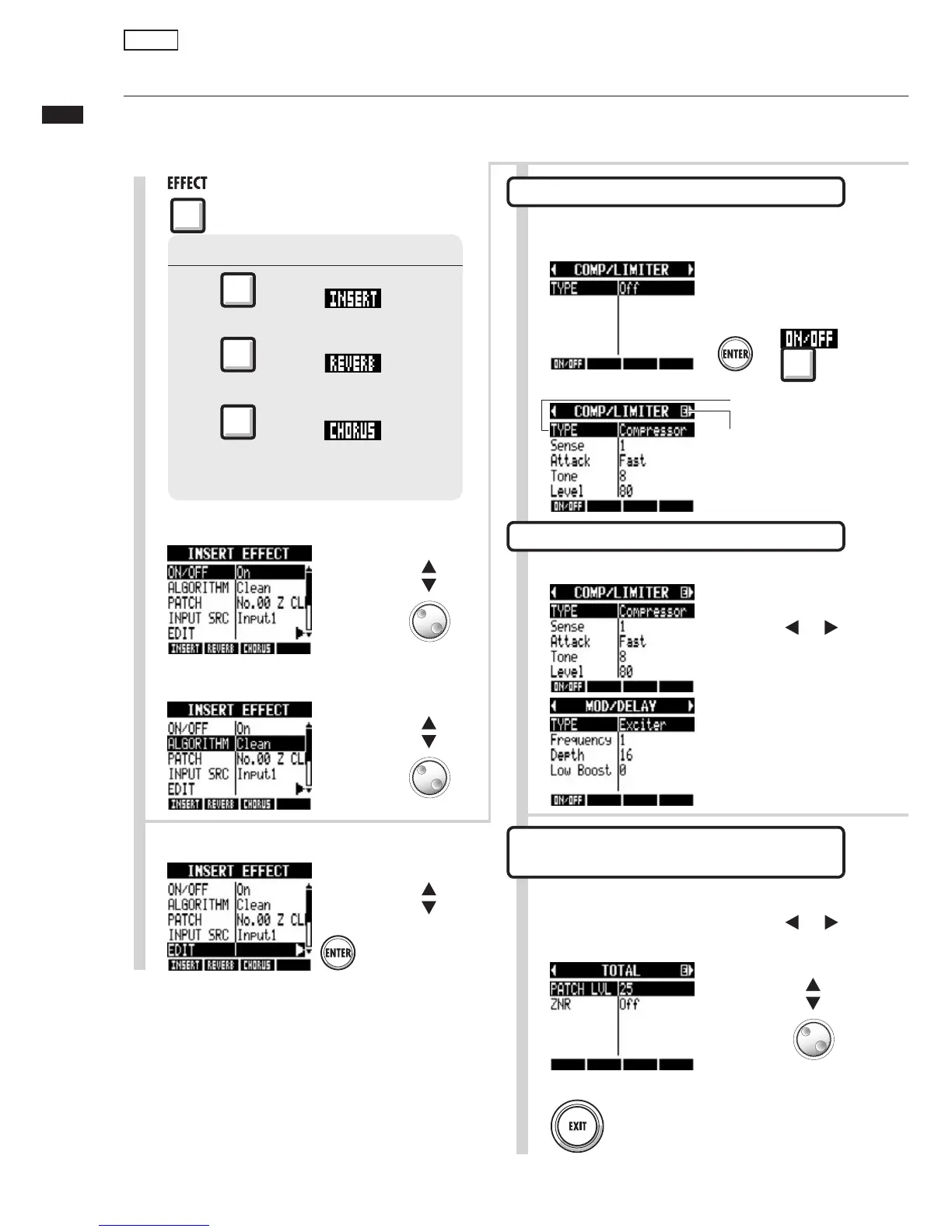

You can create patches that combine effects together, change effect types in patches, or
change processing as you like by adjusting effects using their parameters.
Edit effect modules
9
Return to the main effect screen
Press
1
Press
Select effect type
3
Select the algorithm/patch.
Change setting
Change menu
Select EDIT.
4
Change menu
Press
Edit the patch level
(final patch sound volume)
8
Select PATCHLVL and set the value.
Change value
Change menu
Set the effect module
5
Select TYPE.
Effect module OFF
Effect module ON
\Ê`ÌÊ>ÀÊÃÜÊÜiÊ
a patch has been edited
or changed
vviVÌÊÌÞ«iÊ
6
Select the effect module.
Change
module
7
Select the TOTAL effect
module.
Change
module
Press ENTER or
press the ON/OFF
soft key to turn the
module on and off.
2
Select ON/OFF and set it to ON.
Change
setting
Change menu
Effects
Press beneath to
select an insert effect.
Press
beneath to
select a reverb send-return effect.
Press
beneath to
select a chorus/delay send-return
effect.
